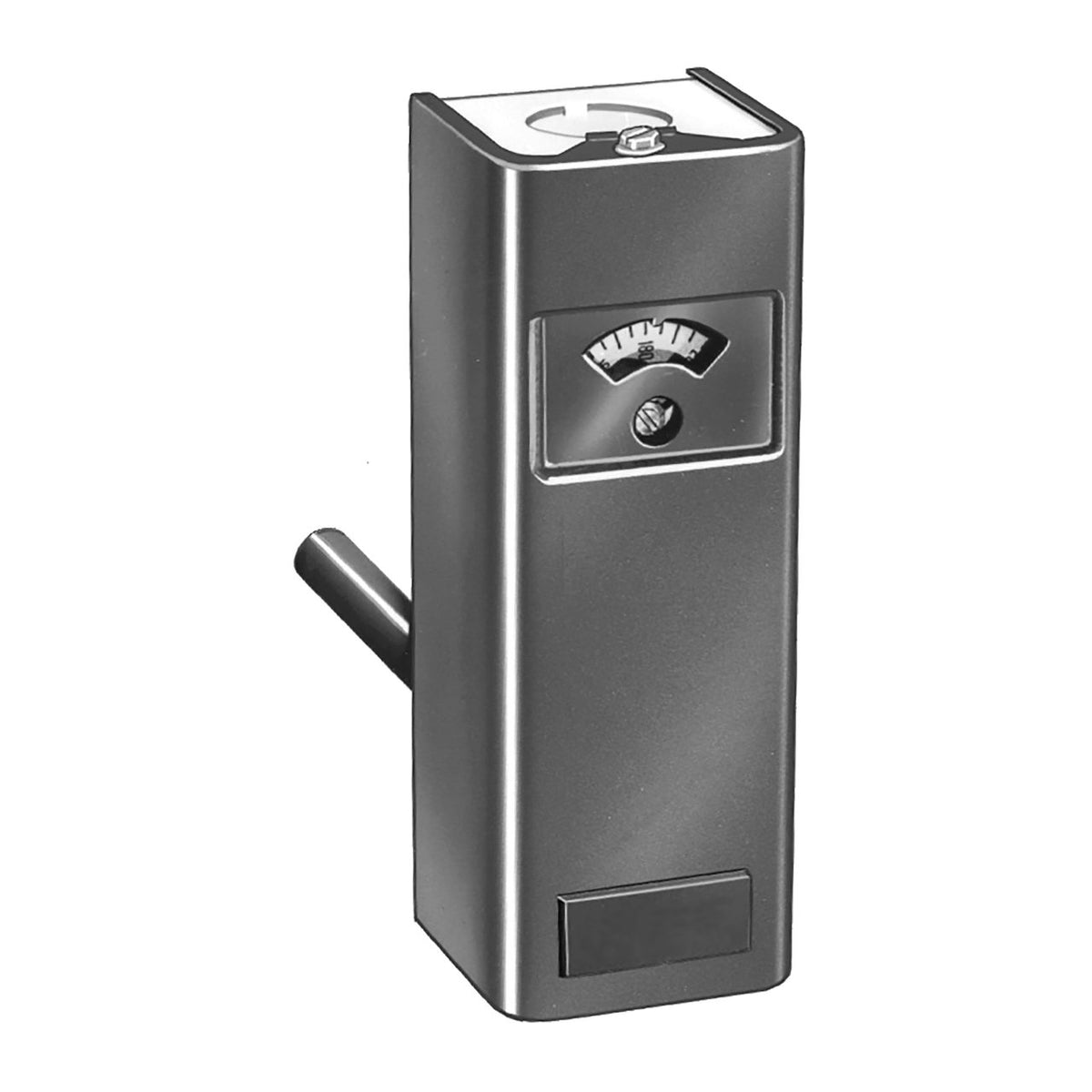

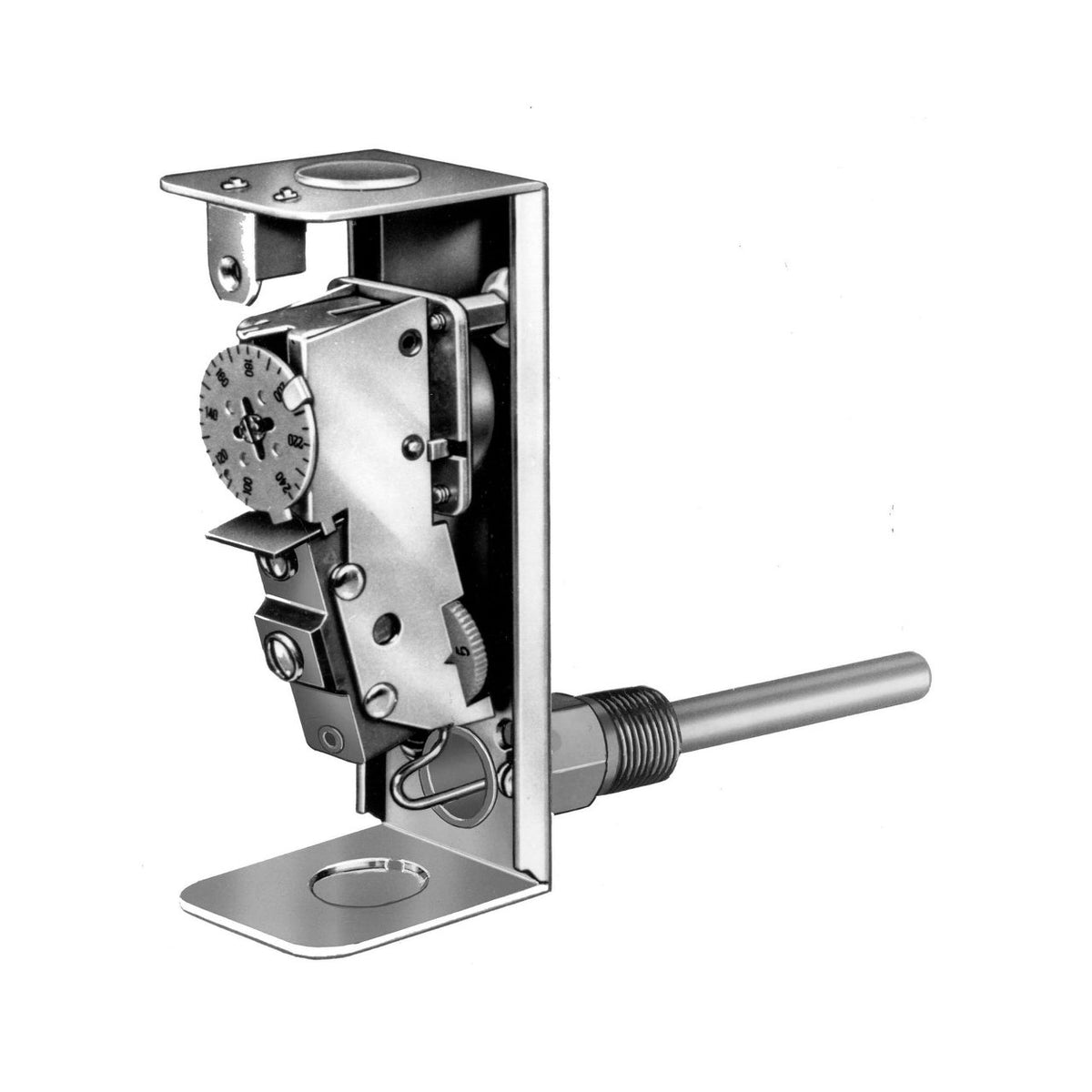

Resideo L4006B1163/U Aquastat, Makes on Rise, 100–240°F, 5–30°F Adjustable Differential, Less Well

Horizontal-mount aquastat that makes on temperature rise, 100–240°F range with 5–30°F adjustable differential, for 3 in insulation, supplied less well.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: L4006B1163/U
• Application: Circulator Control
• Approvals and Standards: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1, AGA Certified
• Color: Gray
• Compatible With: Hot Water, Hydronic Heating Systems
• Differential Temperature: 5 °F to 30 °F Adjustable, 3 °C to 17 °C Adjustable
• Operating Temperature (Min): 100 °F, 38 °C
• Operating Temperature (Max): 240 °F, 116 °C
• Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
• Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
• Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
• Switch Action: Contacts break on temperature rise
• Switch Type: SPST
• Well Spud Size: 3/4 in 14 NPT, 19 mm 14 NPT
• Insulation Depth: 3 in
• Bulb Diameter: 3/8 in, 10 mm
• Bulb Length: 2 7/8 in, 73 mm
• Bulb Material: Copper (Cu)
• Product Height: 5.63 in, 143 mm
• Product Width: 2 in, 51 mm
• Ambient Temperature (Max): 150 °F, 66 °C
• Hazmat Information: Dangerous Goods in Excepted Quantities
• UPC: 085267048835
• Country of Origin: MX
• Category: Aquastats & Wells
