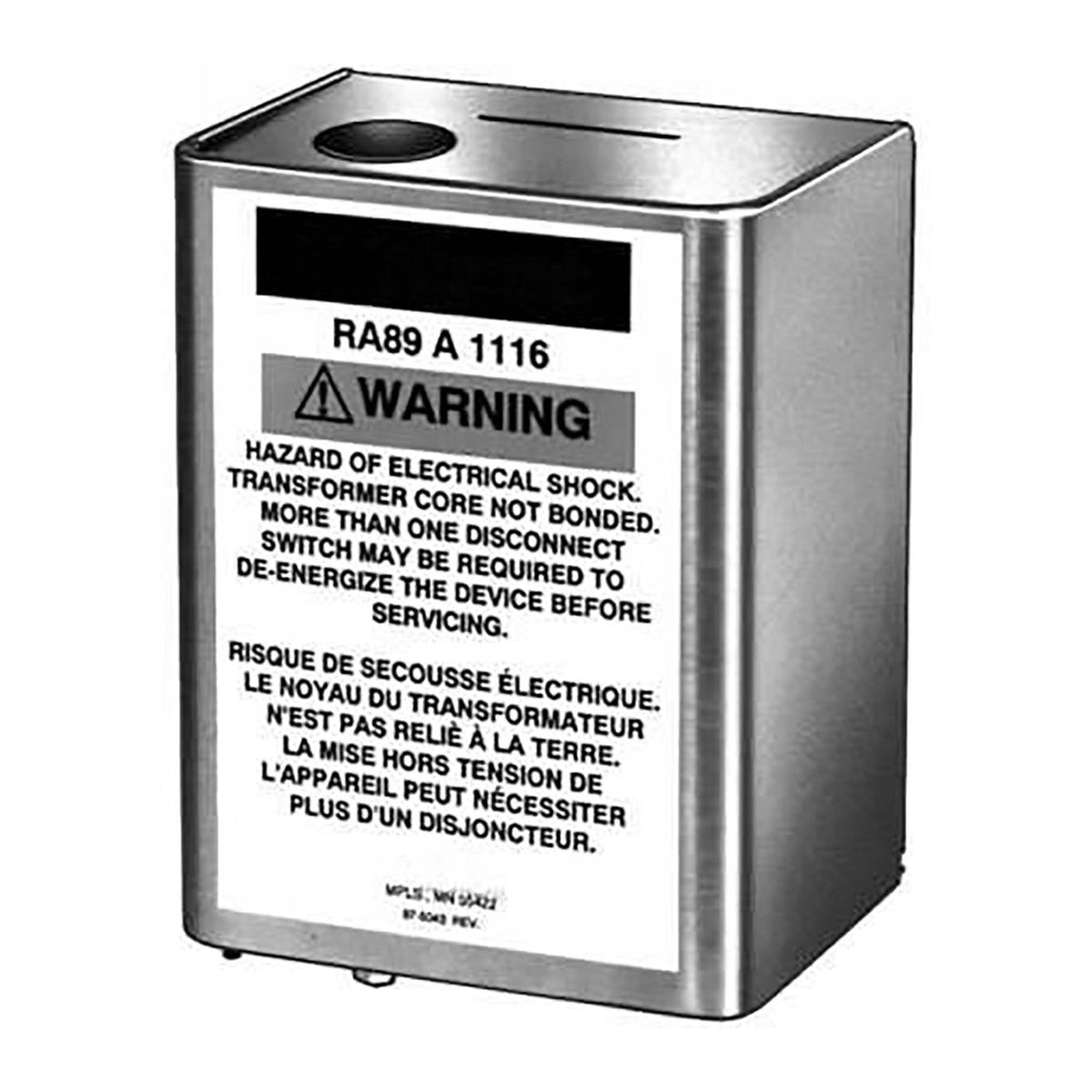

Resideo RA89A1116/U Switching Relay, 120 VAC 50/60 Hz, SPST Line Voltage
Resideo

Resideo RA89A1116/U Switching Relay, 120 VAC 50/60 Hz, SPST Line Voltage

Item #
HONE-RA89A1116/U
Mfr. part #
RA89A1116/U
UPC
085267082297
$180.36
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.0 lb
  • Box size: 8.4 × 4.6 × 3.5 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #RA89A1116/U
UPC085267082297

Relay for SPST switching of one line voltage load, 120 V 50/60 Hz.

Features

  • Integral transformer provides low voltage power for control circuit

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: RA89A1116/U
  • Application: SPST switching of a line voltage device from a low voltage controller
  • Approvals and Standards: UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620
  • Includes: Integral transformer, Enclosure
  • Coil Connection Type: Control Circuit 2 Wire
  • Number of Poles: 1 Pole
  • Power Supply Frequency: 50 Hz, 60 Hz
  • Switch Action: SPST
  • Warranty: 1 Year
  • Ambient Operating Temperature (Max): 115 °F for 60 Hz, 105 °F for 50 Hz, 46 °C for 60 Hz, 41 °C for 50 Hz
  • Product Height: 5.25 in, 133 mm
  • Product Length: 2.31 in, 59 mm
  • Product Width: 4.25 in, 108 mm
  • UPC: 085267082297
  • Country of Origin: MX
  • Category: Relays

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
