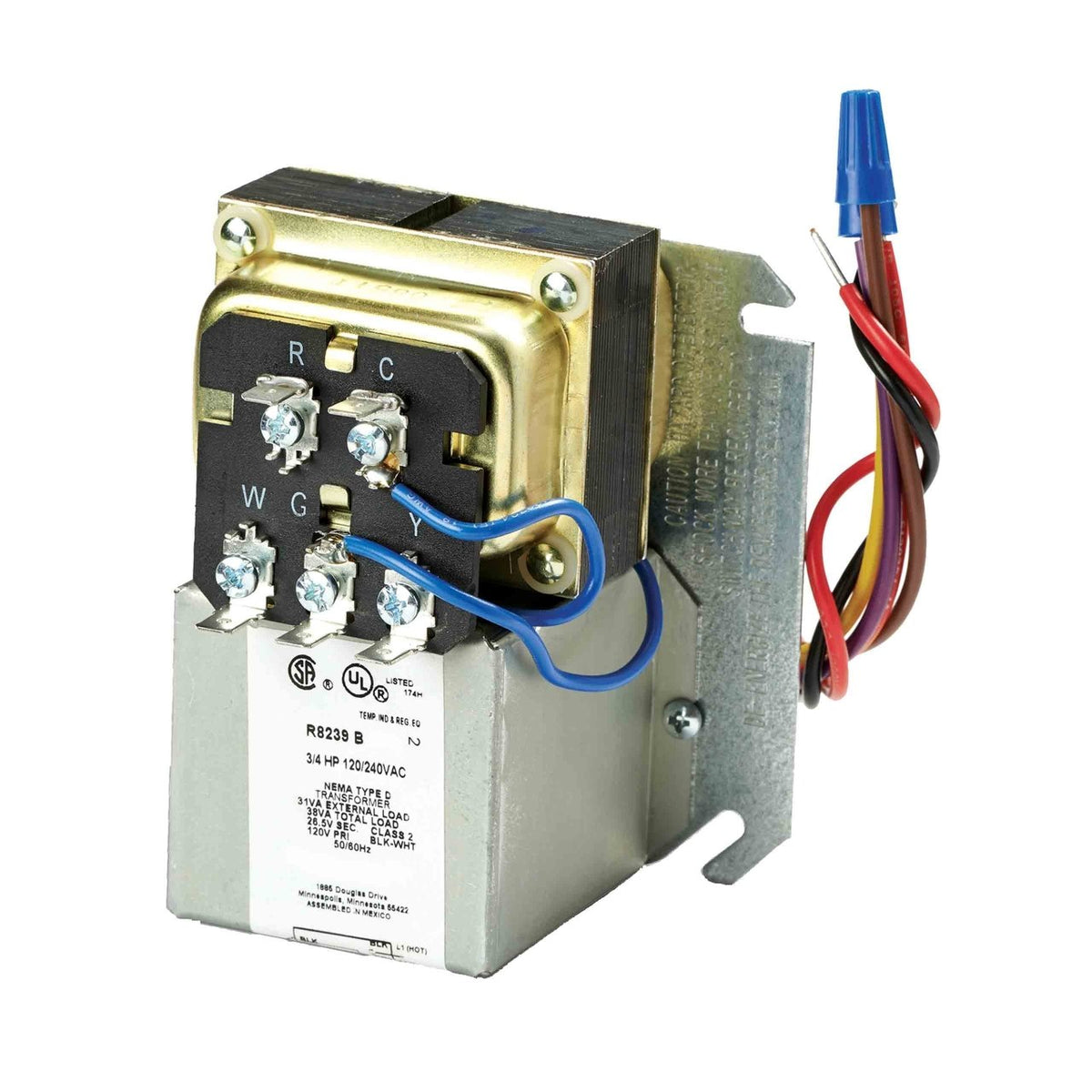

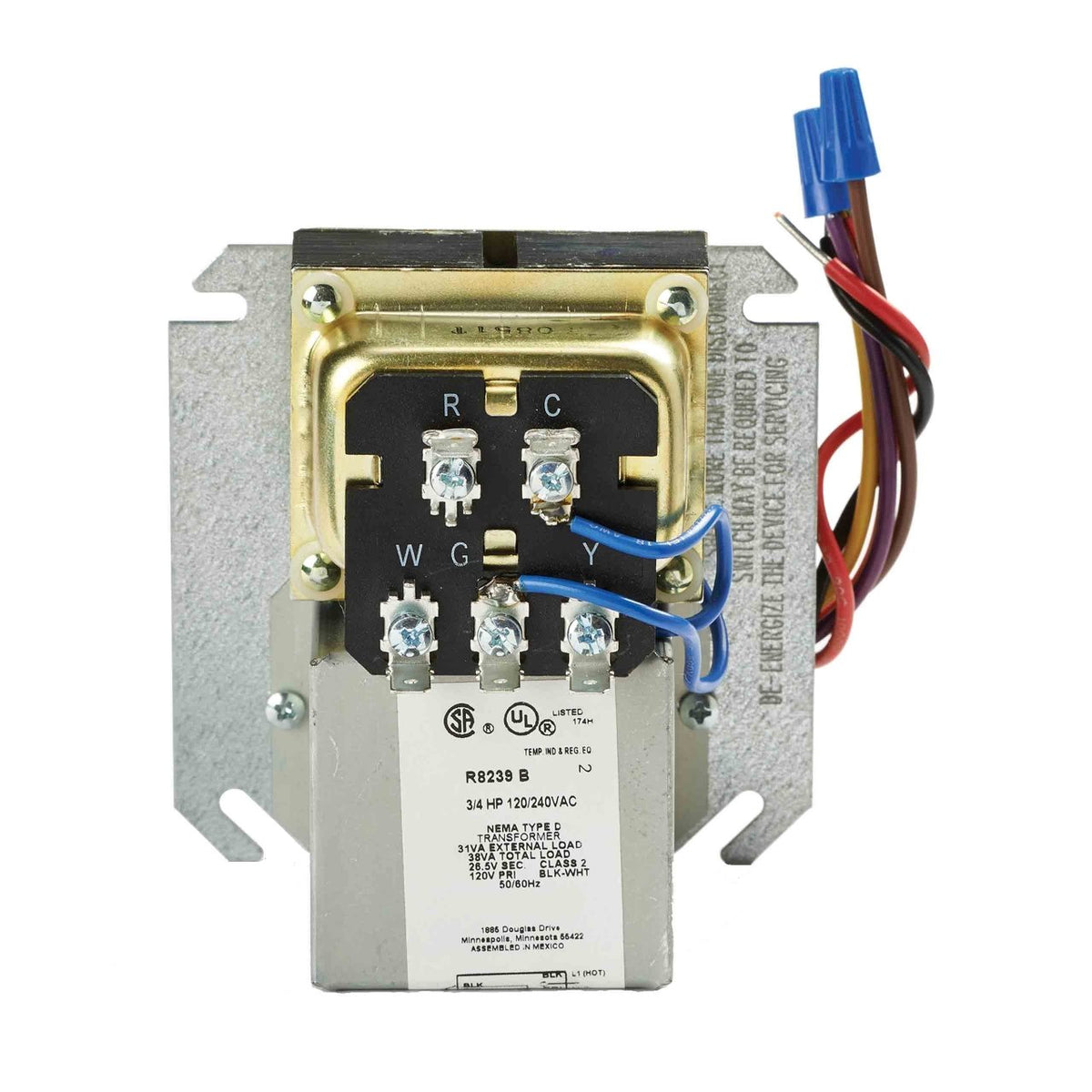

Resideo R8239B1043/U Fan Center, DPDT Relay with 2 Normally Open and 2 Normally Closed Contacts

SuperTradeline fan center with a DPDT relay that has 2 normally open and 2 normally closed power contacts.

Features

• NEMA standard Type D transformer (included) powers 24Vac control systems
• Provides overload protection for transformer
• Convenient connections for thermostat and heating and cooling equipment wiring
• Mounts on standard 4 x 4 junction box
• Can be mounted in any indoor location without additional enclosure
• Relay is easily replaced without disturbing wiring

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: R8239B1043/U
• Application: Low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling or heating-cooling systems
• Approvals and Standards: NEMA Standard DC20
• Compatible With: Heating only, Cooling only, Heating and Cooling
• Includes: Relay Enclosure, R8222D
• Coil Rating Voltage: Inrush 20 VA maximum, Sealed 9 VA
• Number of Poles: 2 Poles
• In-Rush Voltage (Max): 20 VA
• In-Rush Voltage (Nominal): 9 VA
• Switch Action: DPDT
• Warranty: 1 Year
• Product Height: 4.5 in, 114 mm
• Product Length: 3.1 in, 79 mm
• Product Width: 4.19 in, 106 mm
• UPC: 085267080316
• Country of Origin: MX
• Category: Relays
