Description

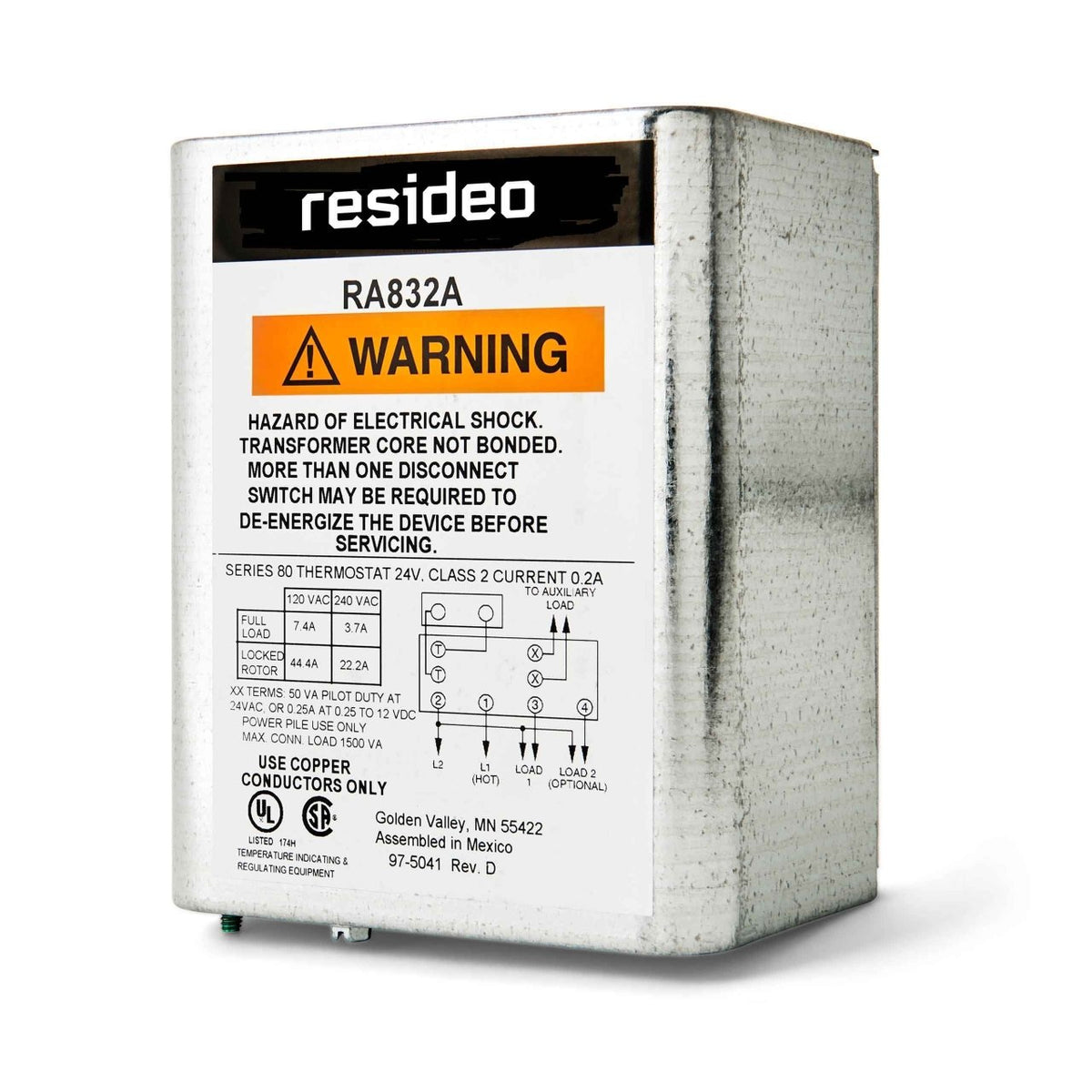

Relay for DPST switching of a line voltage load and SPST switching of a low voltage or millivolt load, 120 V 50/60 Hz.
Features
- Integral transformer provides low voltage power for control circuit
- The RA832A is a TPST relay
- One relay pole is designed for low voltage or millivoltage (PowerPile®) auxiliary load. Two other relay poles are for line voltage loads
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: RA832A1082/U
- Application: DPST switching of a line voltage device from a low voltage controller
- Approvals and Standards: UL Listed: File No. E4436, Guide No. XAPX, CSA Certified: File No. LR1620
- Includes: Integral transformer, Enclosure
- Coil Connection Type: Control Circuit 2 Wire
- Number of Poles: 2 Poles
- Power Supply Frequency: 50 Hz, 60 Hz
- Switch Action: DPST
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 115 °F for 60 Hz, 105 °F for 50 Hz, 46 °C for 60 Hz, 41 °C for 50 Hz
- Product Height: 5.25 in, 133 mm
- Product Length: 2.31 in, 59 mm
- Product Width: 4.25 in, 108 mm
- UPC: 085267081894
- Country of Origin: MX
- Category: Relays
