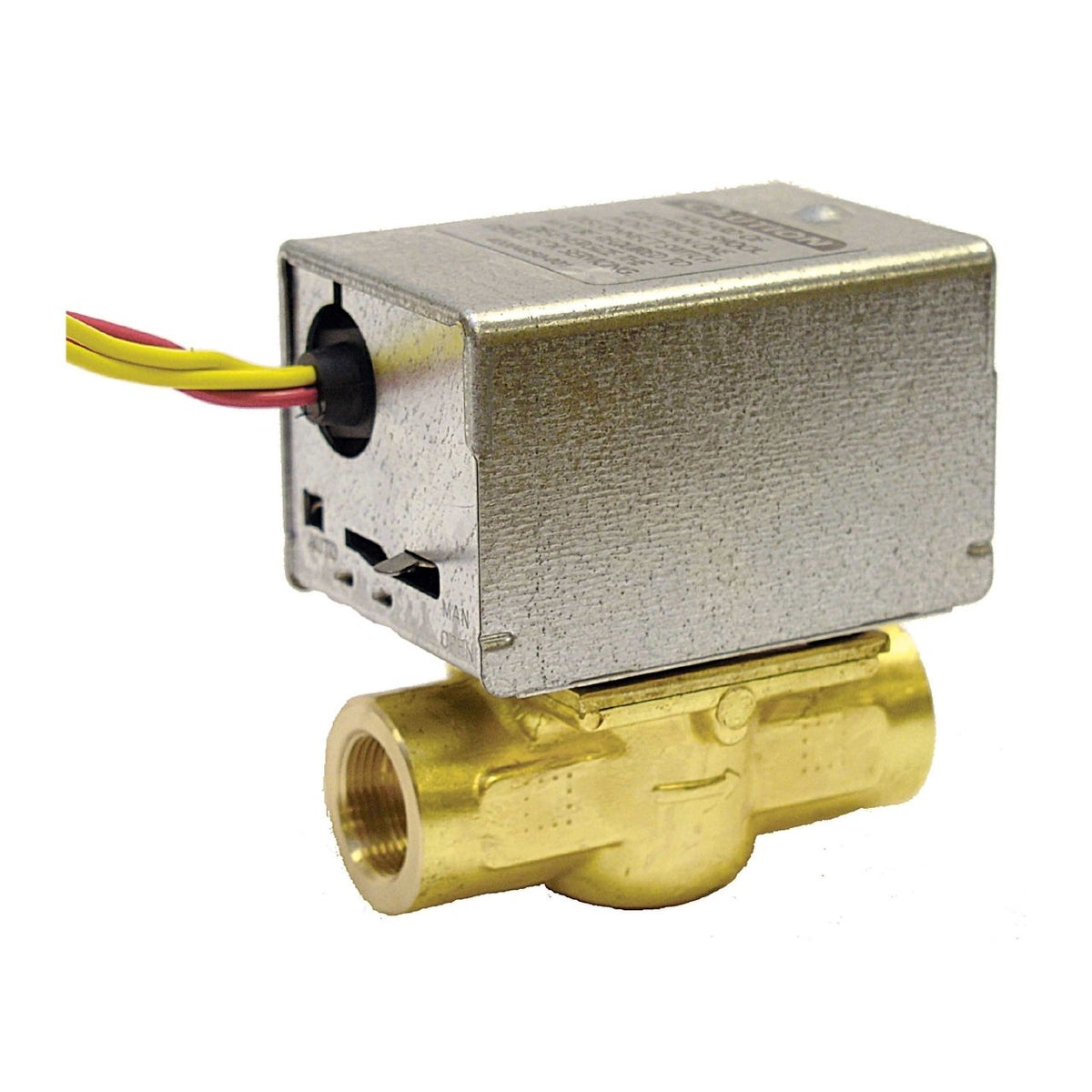

Honeywell Home V8043G1125/U Zone Valve, 1/2 in Inverted Flare, 3.5 Cv, 24 VAC, End Switch

24 V/60 Hz zone valve with 1/2 in inverted flare connection, 3.5 Cv, 18 in lead wires, and end switch.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: V8043G1125/U
• Valve Ball Material: Buna-N (NBR) Rubber
• Approvals and Standards: CSA Certified: File 1322
• Color: Brass
• Includes: Less Adapters, Manual Opener
• Product Height: 4 in, 102 mm
• Product Length: 2.38 in, 60 mm
• Product Width: 3.63 in, 92 mm
• Warranty: 5 years
• Ambient Operating Temperature (Max): 125 °F, 52 °C
• Connection Type: Inverted Flare
• Differential pressure for close-off (Max): 20 psi, 138 kPa
• Fail-Safe Operation Type: Spring return to close
• Flow Coefficient: 3.5 Cv; 3 Kvs
• Media Temperature (Min): 50 °F, 10 °C
• Media Temperature (Max): 200 °F, 93 °C
• Actuator Control Signal: Two position
• Actuator Opening Time: 15 seconds
• Static Pressure Rating: 125 psi, 862 kPa
• Valve Body Material: Brass
• Valve Body Pattern: Two-way, Straight Through
• Valve Plug Material: Buna-N (NBR) Rubber
• Valve Seat Material: Brass
• Valve Start Position: Closed
• Valve Stem Material: Stainless Steel
• UPC: 085267810500
• Country of Origin: HU
• Category: 2-Way Zone Valve
