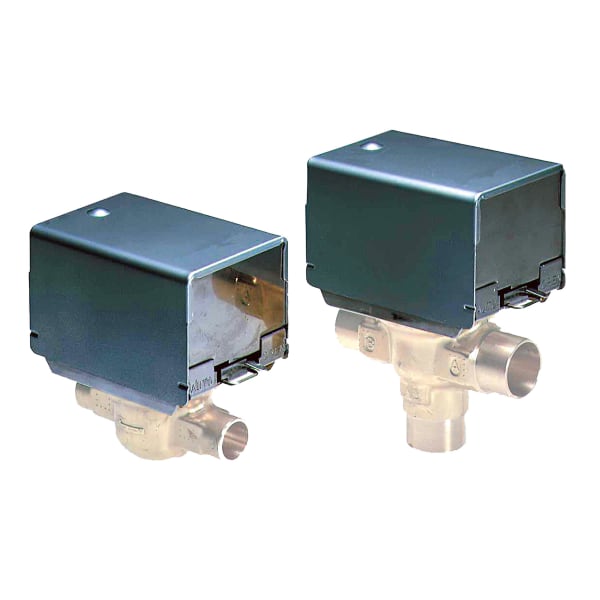

Honeywell Home Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz VU843A1004/U

Item #: HONE-VU843A1004/U
Mfr. part #: VU843A1004/U
UPC: 085267823197

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Key specifications

Supply Voltage24V
Frequency50 Hz; 60 Hz
Electrical ConnectLeads
Fluid Temperature200 F
Power ConsumptionDriving-- 6 Watts

View all specifications

$89.66

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 1.0 lb
Box size: 6.3 × 4.55 × 3.3 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	VU843A1004/U
Supply Voltage	24V
Frequency	50 Hz; 60 Hz
Electrical Connections	Leads
Close-off Pressure	Depends on Cv rating of valve
Fluid Temperature	200 F
Ambient Temperature	34 F to 125 F ambient at 200 F Fluid
Application	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Used With	2-way NC VU valve body (VU53)
Dimensions	2 3/8 in. high, 3 1/2 in. wide, 2 3/8 in. wide
CSA	Certified C/US File No. LR1322
Materials	Stainless Steel Case, Aluminum Cover
Power Consumption	Driving-- 6 Watts
Internal Auxiliary Switch	0
Actuator Type	Valve
Control Signal	Two position; SPST
Fail Safe Mode	Spring Return
Stroke (in.)	22 deg.
Timing, Nominal	Driving @ 60 Hz (sec)-- 15 sec maximum
Spring Return Timing	Nominal-- 4 sec
Manual operation	Lever
UPC	085267823197

The VU843A1004 is a two-position valve actuator from Resideo, the brand that carries the Honeywell Home line of residential heating controls, built for VU series fan coil valve bodies. It drives the valve fully open on a call and returns it to the rest position when the call ends.

Fan coil valves live in ceiling plenums and closets where service access is poor, so the actuator is the part specified to be replaceable on its own. Matching the actuator to the body matters: a normally closed body and a normally open body take different heads, and fitting the wrong one reverses the zone.

Check the valve body model stamped on the unit before ordering — the title of this listing states which VU bodies this actuator is built for.
