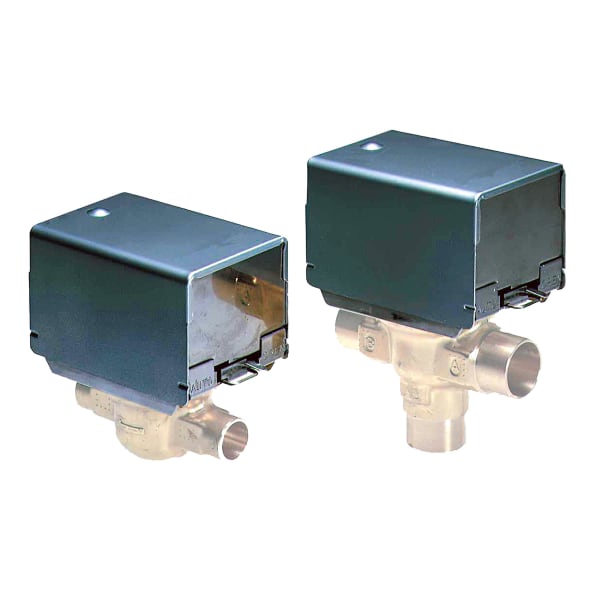

Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz

Roll over image to zoom in Click on image to zoom

Honeywell Home Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz VU843A1020/U

Name: Honeywell Home Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz VU843A1020/U
Brand: Honeywell Home
SKU: HONE-VU843A1020/U
Price: 49.89 USD
Availability: InStock

Honeywell HomeSKU: HONE-VU843A1020/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$49.89

Stock:

In stock (37 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 1.0 lb
Box size: 5.98 × 4.57 × 3.39 in

Connection Type	3-pin A with 8 in Leads
Supply Voltage	24 V AC
Current Draw	0.32 A
Frequency	50 Hz, 60 Hz
Application	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Used With	2-Way NC VU Valve Body (VU53)
Dimensions	2.38 in, 62 mm high x 3.5 in, 88 mm wide x 2 3/8 in, 60 mm deep
Approvals	Certified C/US: File No. LR1322
Compatible With	VU52, VU53, and VU54 Fan Coil Valves
Control Signal	Two position; SPST
Ambient Temperature (Min)	34 °F at 200 °F Fluid, 1 °C at 93 °C Fluid
Ambient Temperature (Max)	125 °F at 200 °F Fluid, 52 °C at 93 °C Fluid
Fail-Safe Operation Type	Spring Return
Spring Return Timing	4 Sec
Number of Internal Auxiliary Switches	0
Fire and Smoke Rated	No
Manual Override Included	Yes
Stroke (Max)	22 °
Housing Material	Stainless Steel Case, Aluminum Cover

VU843A1020 has been discontinued by the manufacturer (2019-05). Suggested replacement: VU843A1004 - Valve Actuator - 24V - 6" Leads - 7/8" Hole Case End.

The VU843A1020 is a two-position valve actuator from Resideo, the brand that carries the Honeywell Home line of residential heating controls, built for VU series fan coil valve bodies. It drives the valve fully open on a call and returns it to the rest position when the call ends.

Fan coil valves live in ceiling plenums and closets where service access is poor, so the actuator is the part specified to be replaceable on its own. Matching the actuator to the body matters: a normally closed body and a normally open body take different heads, and fitting the wrong one reverses the zone.

Check the valve body model stamped on the unit before ordering — the title of this listing states which VU bodies this actuator is built for.

Brand: Honeywell Home
Manufacturer Part #: VU843A1020/U
Series: VU
Control type: Two-position
Voltage: 24 Vac
Category: Zone Valve Actuators

Full Specifications

Application	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
Approvals and Standards	Certified C/US: File No. LR1322
Product Features	For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
For Use With	2-Way NC VU Valve Body (VU53)
Compatible With	VU52, VU53, and VU54 Fan Coil Valves
Control Signal	Two position; SPST
Ambient Operating Temperature (Min)	34 °F at 200 °F Fluid, 1 °C at 93 °C Fluid
Ambient Operating Temperature (Max)	125 °F at 200 °F Fluid, 52 °C at 93 °C Fluid
Fail-Safe Operation Type	Spring Return
Spring Return Timing	4 Sec
Supply Voltage	24 V AC
Power Supply Frequency	50 Hz, 60 Hz
Current Draw	0.32 A
Number of Internal Auxiliary Switches	0
Fire and Smoke Rated	No
Manual Override Included	Yes
Connection Type	3-pin A with 8 in Leads
Stroke (Max)	22 °
Product Height	2.38 in, 62 mm
Product Width	3.5 in, 88 mm
Product Depth	2 3/8 in, 60 mm
Housing Material	Stainless Steel Case, Aluminum Cover
