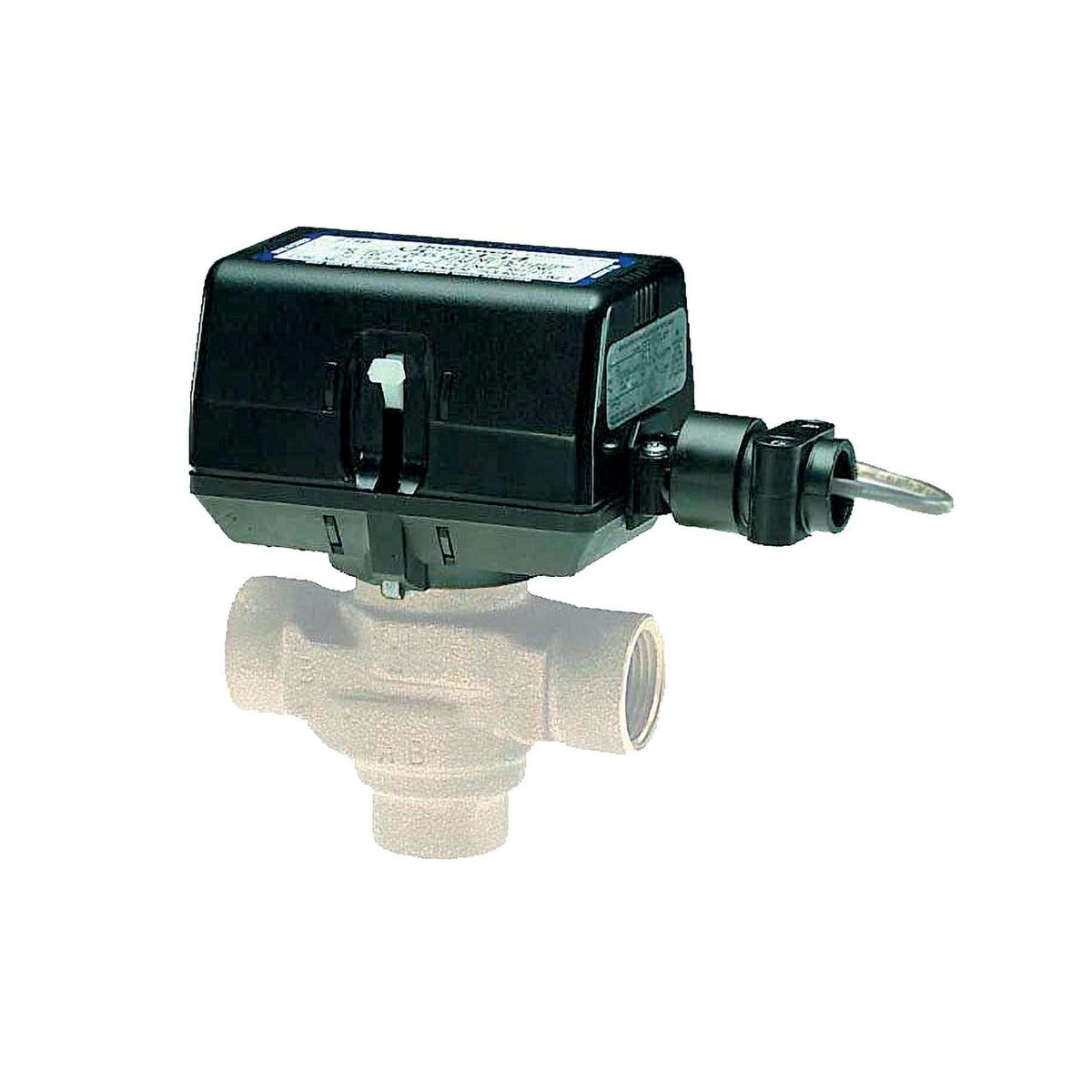

Honeywell Home VC7934ZZ31/U VC Valve Actuator, 24 VAC 50/60 Hz, 3-Wire Plenum Cable

VC valve actuator, 24 V 50/60 Hz, with 3-wire plenum cable.

Features

• Self-Alignment Shaft Adapter

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VC7934ZZ31/U
• Application: HVAC
• Approvals and Standards: Listed 94-5V, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC
• For Use With: VC Series Valve
• Compatible With: Use in cold, warm, and hot water applications
• Control Signal: (0)2-10 V DC
• Warranty: 5 years
• Includes: Kele label
• Media Temperature (Max): 203 °F, 95 °C
• Mounting Type: Direct Coupled
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Ambient Operating Temperature (Max): 150 °F, 65 °C
• Shipping and Storage Temperature (Min): -40 °F, -40 °C
• Shipping and Storage Temperature (Max): 150 °F, 65 °C
• Operating Relative Humidity (Min): 5% Non-condensing
• Operating Relative Humidity (Max): 95% Non-condensing
• Protection Class: Double Insulated, IP40
• Fail-Safe Operation Type: Stays in place
• Drive Time: 120 sec
• Supply Voltage: 24 V AC
• Power Supply Frequency: 50 Hz, 60 Hz
• Power Consumption: 6 VA
• Differential pressure for close-off (Max): 60 psid, 400 kPa
• Actuator Connection: Valve
• Connection Length: 39 in, 1 m
• Connection Type: Plenum-rated cable
• Stroke (Max): 0.4 in, 10 mm
• Product Height: 2.8 in, 70 mm
• Product Weight: 0.77 lb, 0.35 kg
• Product Width: 3.7 in, 94 mm
• Product Depth: 2.7 in, 68 mm
• Housing Material: Plastic
• UPC: 085267831826
• Country of Origin: HU
• Category: Zone Valve Replacement Heads
