Description

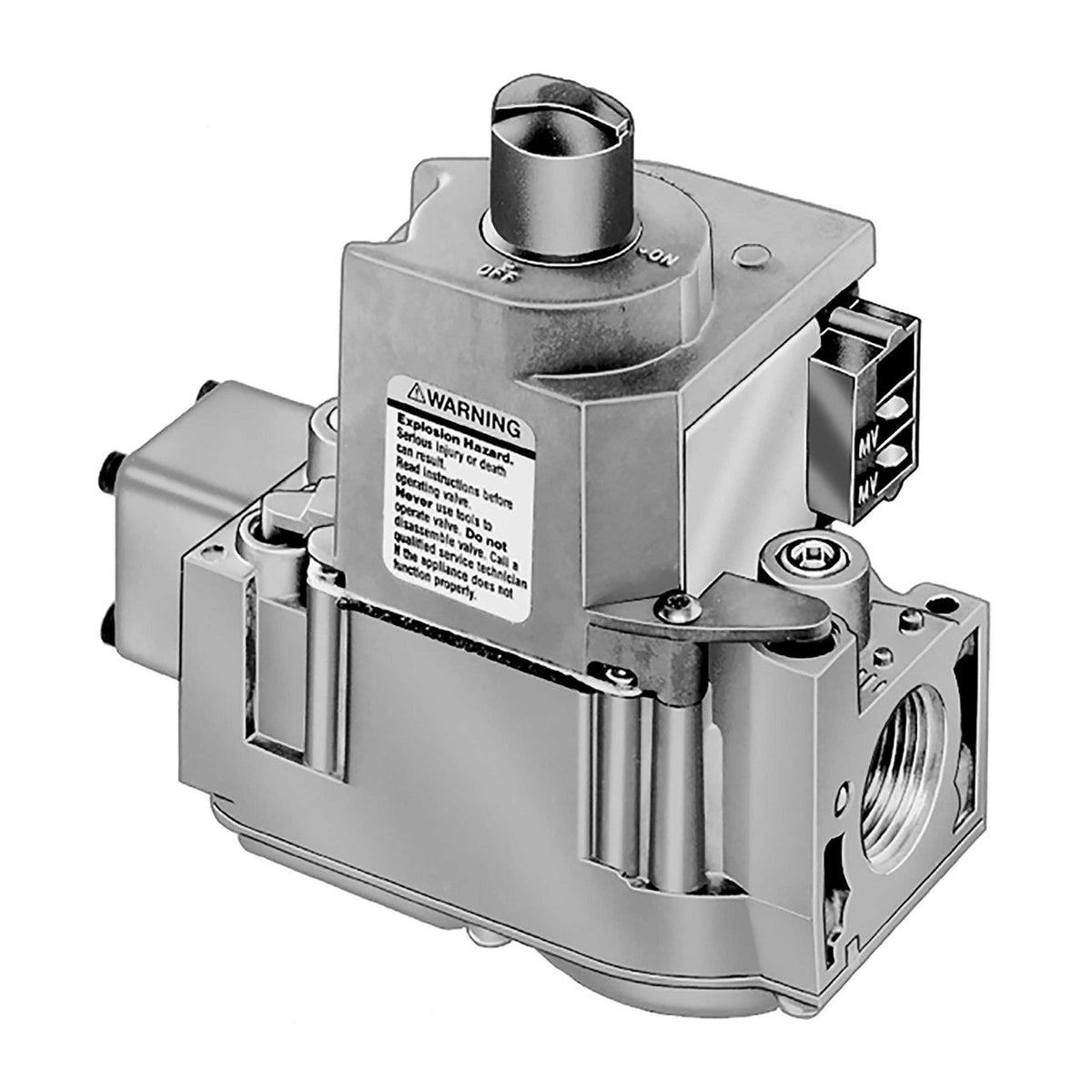

Direct ignition gas valve with step opening and 1/2 in x 1/2 in connections, regulator set at 10 in WC full rate and 4.0 in step rate.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8305P2224/U
- Application: Single-Stage Step Opening for Direct Burner Ignition
- Ignition Type: Direct Burner Ignition
- Type of Fuel: LPG
- Capacity (Min): 50,000 BTU/h
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Step Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Operating Pressure (Max): 1/2 psi
- For Use With: S89C, S89E, S89F, S87 Series 5 and later
- Includes: VR8305 setup for Natural Gas includes a 393691 LP Conversion Kit, Kit for Conversion from LP to Natural Gas is available for standard-opening and slow opening models
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Approvals and Standards: UL Component Recognized: MH8191, CSA International: 112395, American Gas Association design certificate:UP-70-69A, Canadian Gas Association design certificate: UP-70-69A, Australian Gas Association certified:4717, DELTA C: UP-70-69A
- Color: Gray
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Pilot outlet are accessible from top of control
- Product Height: 5.38 in, 135 mm
- Product Weight: 2.25 lb
- Product Width: 4.06 in, 104 mm
- UPC: 085267115032
- Country of Origin: MX
- Category: Gas Valves
