Name: Honeywell Home YTH6320R1001/U Thermostat with Air Sensor and Equipment Module
Brand: Honeywell Home
SKU: HONE-YTH6320R1001/U
Price: 391.90 USD
Availability: InStock

Thermostat with Air Sensor and Equipment Module

Resideo Thermostat with Air Sensor and Equipment Module

Roll over image to zoom in Click on image to zoom

Electrical Ratings	Equipment Interface Module--18 to 30 Vac, 50 Hz; 60 Hz
Application	Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity

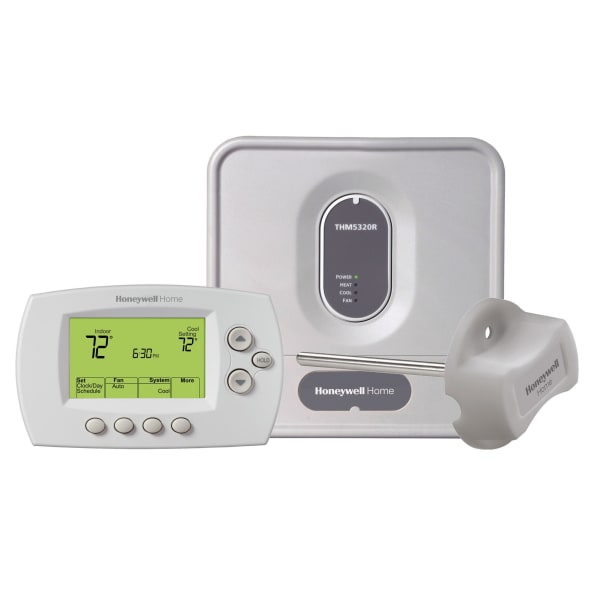

Includes	C7735A1000 Return Air Sensor; THM5320R1000 Equipment Interface Module; TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat
Hazmat Information	NOT RESTRICTED - SPECIAL PROVISION A123
Stages	Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Switch Positions (System)	HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)	AUTO-ON
Power Method	Thermostat--Battery
Programmability	5-1-1 Day or 5-2 Day Program
Terminal Designations	C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Changeover	Auto or Manual Selectable
Cool Current	1.0 A running
Heat Current	1.0 A running
Fan Current	0.6 A running

The YTH6320R1001 is a programmable thermostat from Honeywell Home, supplied as a kit.

A programmable thermostat pays for itself on the hours nobody is home. Setting back eight degrees for the working day and again overnight is the single largest saving available on an existing system, and it only happens reliably when the schedule does it instead of a person.

The failure mode of a programmable stat is being left on permanent hold. If the schedule is going to be overridden within a week, a non-programmable stat does the same job with fewer buttons — and that is an honest recommendation, not a smaller sale.

This version ships as a kit with the sensor and equipment module, so the wireless system is commissioned as a matched set.

Goes with: C7735A1000, TH6320R1004.

Brand: Honeywell Home
Manufacturer Part #: YTH6320R1001/U
Type: Programmable thermostat
Stages: Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Application: Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity
UPC: 085267329408
Category: Thermostats

Full Specifications

Thermostat Type	Programmable; Low Voltage; Digital; RedLINK
WiFi	No
WiFi Specifications	Internet Gateway THM6000R7001/U Provides WiFi Capabilities
Color	Premier White®
Includes	C7735A1000 Return Air Sensor; THM5320R1000 Equipment Interface Module; TH6320R1004 Wireless FocusPRO® 5-1-1 Programmable Thermostat
Stages	Up to 3 Heat/2 Cool Heat Pump Systems; Up to 2 Heat/2 Cool Conventional Systems
Modes of Operation	Heat; Cool; Auto; Off; Emergency Heat
Program Type	5-1-1 Programmable; 5-2 Programmable
Alerts and Reminders	Battery Replacement; High Indoor Temperature; Low Indoor Temperature
Displayed Information	Indoor Temperature; Status Display
Energy Star Certified	No
Product Height	3.56 in; 91 mm
Product Width	5.81 in; 147 mm
Product Depth	1.5 in; 38 mm
Warranty	5 Years
