Description

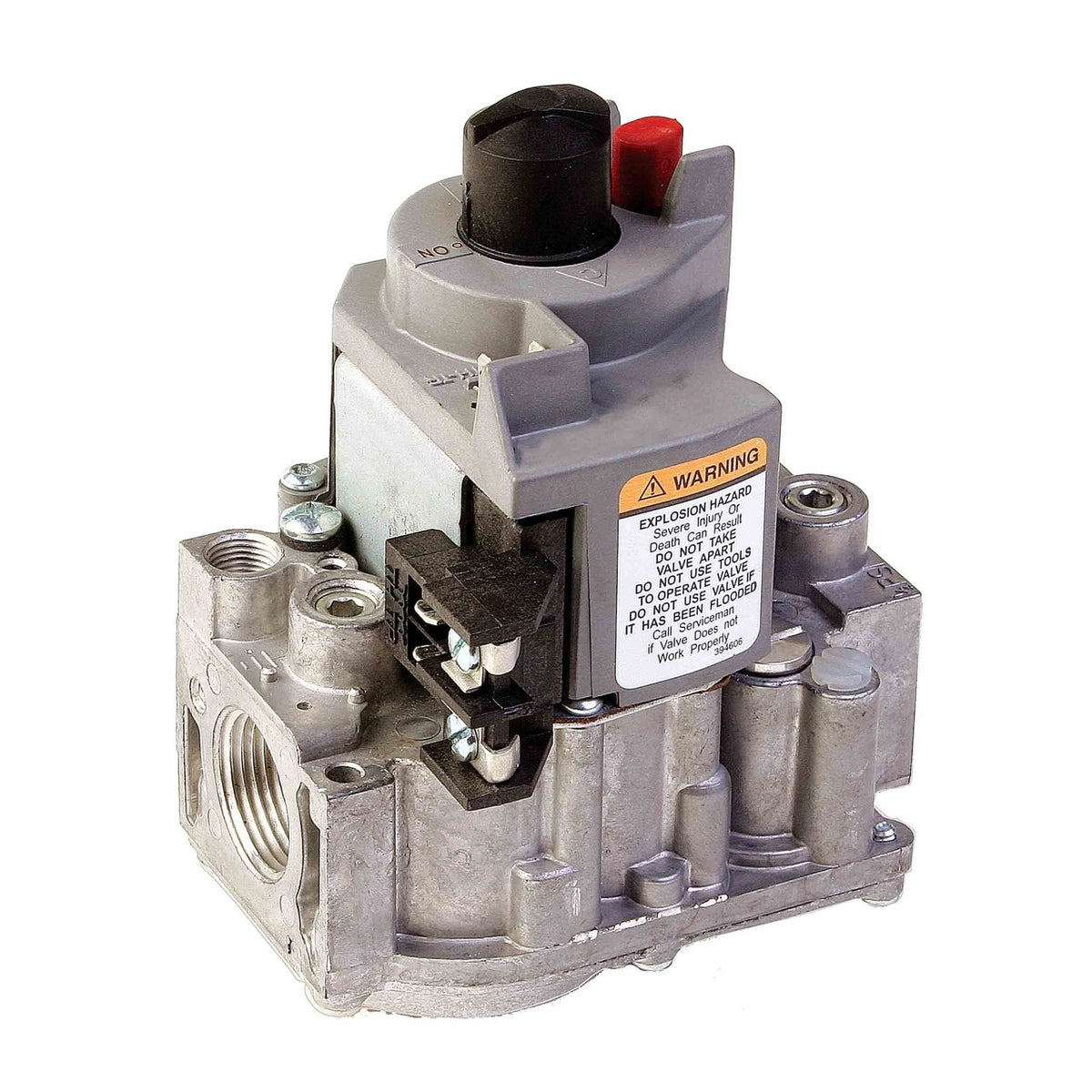

Standing pilot gas valve with slow opening, 3/4 in x 3/4 in connections and regulator set at 3.5 in WC.
Features
- Lite-Rite (OFF-PILOT-ON) lighting sequence
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8300H4501/U
- Application: Single-Stage Slow Opening Valve for Standing Pilot
- Ignition Type: Standing Pilot
- Type of Fuel: Natural Gas
- Regulator: Slow
- Capacity (Max): 300,000 BTU/h
- Capacity (Min): 30,000 BTU/h
- Operating Voltage: 24 V AC
- Inlet Connection Size: 3/4 in
- Outlet Connection Size: 3/4 in
- Regulation Type: Slow Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Operating Pressure (Max): 1/2 psi
- Valve Body Pattern: Straight Through with Flange
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): 0 °F, -18 °C
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association: 4717
- Color: Black, Gray
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
- Product Height: 5.38 in, 135 mm
- Product Width: 4.06 in, 104 mm
- UPC: 085267114233
- Country of Origin: MX
- Category: Gas Valves
