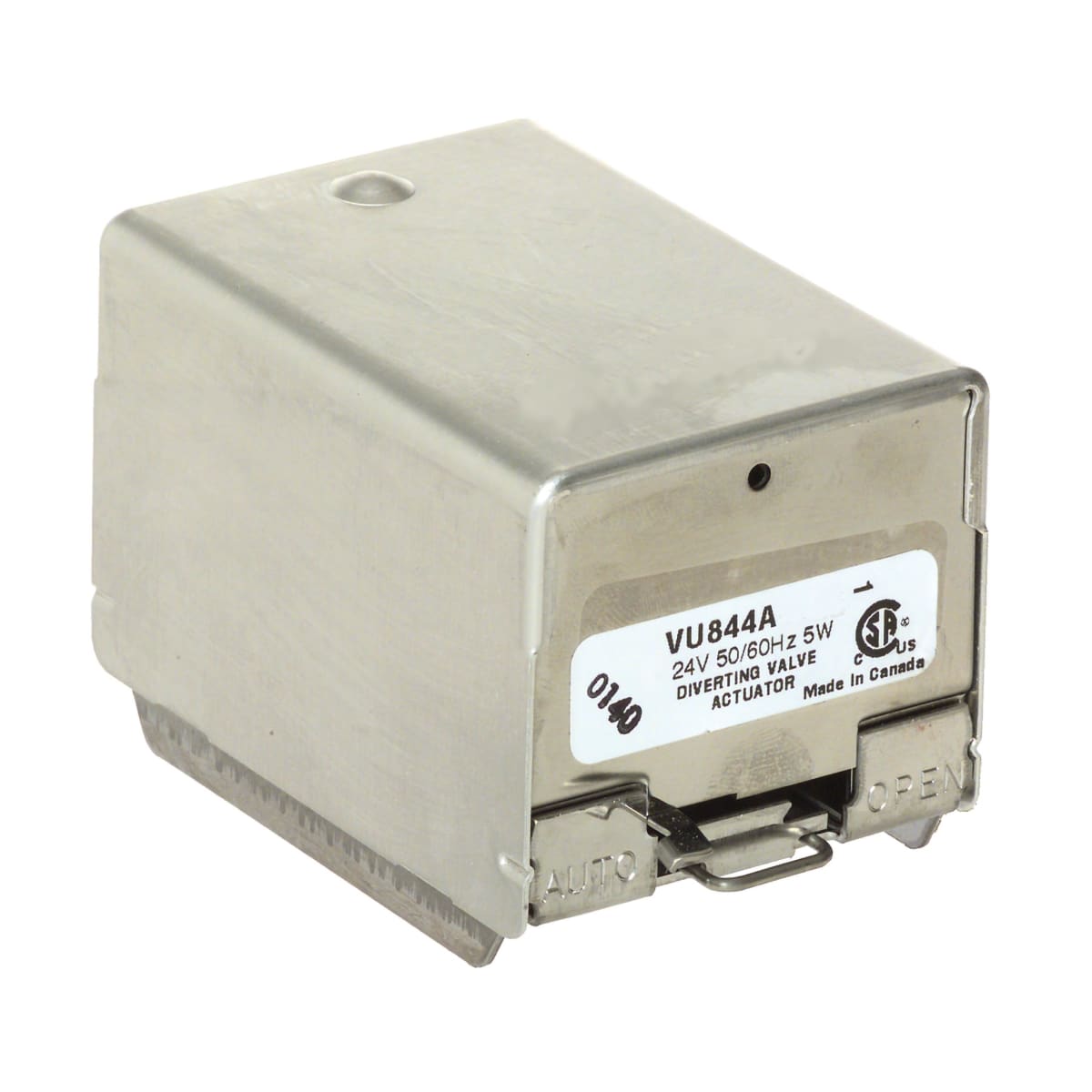

Honeywell Home VU844A1003/B Two-Position Actuator for VU53 N.C. Valve Bodies, 24 V

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home Two-Position Actuator for VU53 Normally Closed Valve Bodies, 24 V, 50/60 Hz VU844A1003/U.

The humidity resistant, Fan Coil Valve Actuators are used in conjunction with VU52, VU53 and VU54 valves for controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors. Compact construction for easy installation Fits under the cover of most baseboard convectors with actuator fitted to valve body One-button, quick release Secure 3-point, metal latch to valve body Spring return operation Stainless Steel Case and aluminum cover Rust-proof nickel-plated motors available Line or low voltage, rust-resistant motors Manual opener for installation and valve operation on power failure Valve returns to automatic position when power is restored Actuator may be reinstalled or serviced without draining the system or disassembling the valve Slotted conduit hole for faster wiring.

Specifications

• Brand: Honeywell Home
• Manufacturer Part #: VU844A1003/B
• Application: For controlling the flow of hot or chilled water in commercial HVAC equipment such as fan coil units, terminal reheat coils and convectors
• Approvals and Standards: Certified C/US: File No. LR1322
• Fire and Smoke Rated: No
• For Use With: 2-Way NC VU Valve Body (VU53)
• Manual Override Included: Yes
• UPC: 085267823210
• Category: Zone Valve Replacement Heads
