Honeywell Home 802360UA/U 24V, 50/60 Hz Replacement Motor for V8043J Steam/Heating Zone Valves

Item #: HONE-802360UA/U
Mfr. part #: 802360UA/U
UPC: 085267034210

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Key specifications

Voltage24V
Valve TypeZone Valve
Frequency50 Hz; 60 Hz
Electrical Connect6 in. leads

View all specifications

$66.59

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.53 lb
Box size: 4.3 × 4 × 2.8 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	802360UA/U
Valve Type	Zone Valve
Voltage	24V
Frequency	50 Hz; 60 Hz
Electrical Connections	6 in. leads
Application	Replacement Part for V Series Zone Valves
Used With	V8043J
Includes	Motor mounting screw and lead connectors
UPC	085267034210

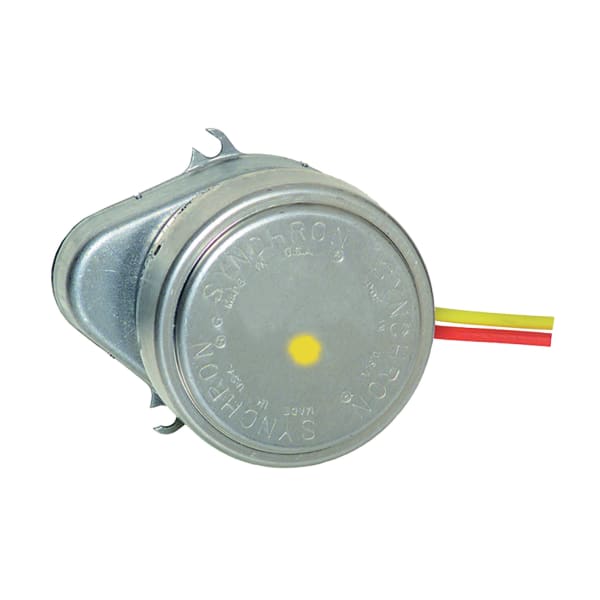

Replacement actuator motor for Honeywell Home V8043J zone valves. When the motor in the valve fails, this part swaps onto the valve body that is already in the piping — the connections stay soldered or threaded in place and the system does not have to be drained.

Replacing the head instead of the whole valve is the difference between a fifteen-minute service call and a soldering job on a live heating system. It is the reason the V-series has stayed in the field as long as it has.

Confirm whether your valve is wired for pump start before ordering. A valve whose end-switch contacts are landed on the boiler needs a replacement head that carries the end switch; this one is specified without it.
