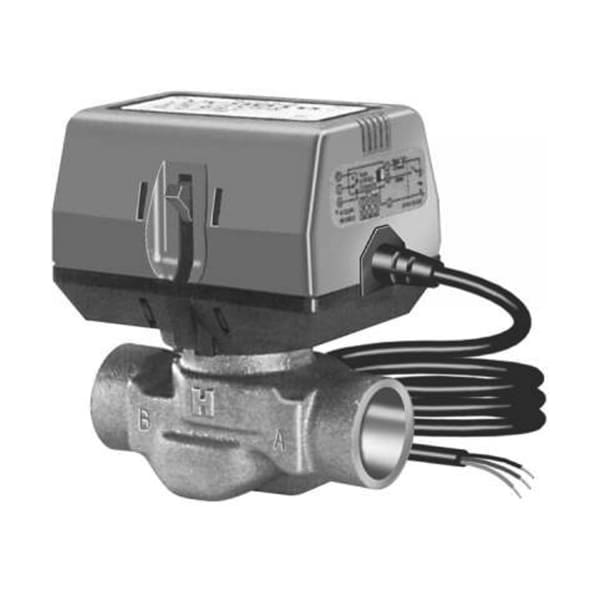

2-position Low Volt Actuator for VC Series with End Switch

Roll over image to zoom in Click on image to zoom

Honeywell Home 2-Position Low Volt Actuator for VC Series with End Switch VC8711ZZ11/U

Name: Honeywell Home 2-Position Low Volt Actuator for VC Series with End Switch VC8711ZZ11/U
Brand: Honeywell Home
SKU: HONE-VC8711ZZ11/U
Price: 101.71 USD
Availability: InStock

Honeywell HomeSKU: HONE-VC8711ZZ11/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$101.71

Stock:

Only 7 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.97 lb
Box size: 5.9 × 4.65 × 3.25 in

Supply Voltage	24 Vac
Frequency	60 Hz
Electrical Connections	Cable
Close-off Pressure	60 psid
Fluid Temperature	203 F
Ambient Temperature	32 F to 150 F
Operating Humidity	5 to 95% RH, non-condensing
Mounting	Direct Coupled
Application	HVAC
Used With	VC Series Valves, 1000 Series 2-way and 6000 Series 3-way
Dimensions	2.8 in. high x 3.7 in. wide x 2.7 in. deep
UL	UL Recognized, File# MH11826
CSA	CSA Certified: LR1322-367
Weight (lb)	0.84 lb
Weight (kg)	0.38 kg
Materials	Plastic housing
Power Consumption	Driving-- 6 VA
Shipping and Storage Temperature Range (F)	-40 F to +150 F
Approvals, CE	89/336/ECC, 73/23/EEC
Switch Ratings	2.2A (5 to 110 Vac)/1.0A (110 to 277 Vac) Inductive; Min. DC switching capability: 5 mA @ 24 Vac.
Environmental, Electrical or Ingress Protection Rating	Double Insulated, IP40
Internal Auxiliary Switch	1
Actuator Type	Valve
Control Signal	Two position; SPST
Fail Safe Mode	Stays in place
Switches	SPDT
Stroke (in.)	0.4 in.
Cable	Molded strain relief
Timing, Nominal	Driving @ 60 Hz-- 6 sec
Shaft Adapter Type	Self-alignment
Manual operation	Lever

Installation Instructions PDF ↗

Which version do I need? We also carry a similar model with a different specification. Compare size, connection, length and the other details before ordering, and contact us if you need help choosing. See also: Honeywell Home VC8711ZZ11/E VC On/Off Actuator, Auxiliary Switch.

The VC8711ZZ11 is a two-position actuator for Honeywell Home VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.

Two-position control is the standard arrangement for residential zoning: the actuator drives fully open on a call for heat and returns fully closed when the call ends.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the actuator.

VC valve bodies and cartridges this actuator works with

Brand: Honeywell Home
Manufacturer Part #: VC8711ZZ11/U
Series: VC
Control type: Two-position
End switch: Yes
Category: Zone Valve Actuators

Full Specifications

Application	HVAC
Approvals and Standards	UL Recognized, File# MH11826, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
Product Features	Use with two-way or three-way valves, Double insulated actuator, Five foot plenum-rated cable, Quick and easy replacement of moving parts, Actuator head installation does not require draining the system, Selectable/switchable electronic fail safe normally open or normally closed, Available with valve bodies with 1000-series 2-way and 6000-series 3-way cartridges for new construction, Self-Alignment Shaft Adapter
For Use With	VC Series Valves, 1000 Series 2-way, 6000 Series 3-way
Compatible With	Use in cold, warm, and hot water applications
Control Signal	SPST, Two position
Warranty	1 Year
Media Temperature (Max)	203 °F, 95 °C
Mounting Type	Direct Coupled
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	150 °F, 65 °C
Operating Relative Humidity (Min)	5% Non-condensing
Operating Relative Humidity (Max)	95% Non-condensing
Protection Class	Double Insulated, IP40
Fail-Safe Operation Type	Stays in place
Drive Time	6 sec
Supply Voltage	24 V AC
Power Supply Frequency	60 Hz
Power Consumption	6 VA
Differential pressure for close-off (Max)	60 psid, 400 kPa
Number of Internal Auxiliary Switches	1
Actuator Connection	Valve
Connection Length	39 in, 1 m
Connection Type	Cable
Stroke (Max)	0.4 in, 10 mm
Product Height	2.8 in, 70 mm
Product Weight	0.84 lb, 0.38 kg
Product Width	3.7 in, 94 mm
Product Depth	2.7 in, 68 mm
Housing Material	Plastic
