| Valve Type | Replacement cartridge for VC series |
| Flow Characteristic | Equal Percentage Extra Low Flow |
| Controlled Fluid | Water w/max of 60% Glycol. Not for use with Steam |
| Materials (Stem) | Stainless Steel |
| Used With | Two-way VC Cartridge Valves with 14 lbf |
| Dimensions | 1 1/2 in. diameter x 2 9/16 in. high |
| CSA | CSA Certified |
| Materials (Cartridge) | EPDM, Ryton & Noryl plastic |
| Stem Travel (in.) | 0.4 in. |
Description

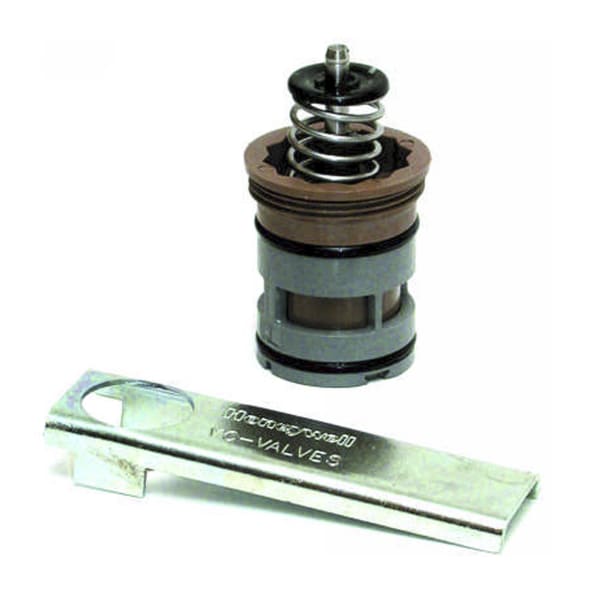

Replacement cartridge for Resideo (Honeywell Home) VC series 2-way zone valves in the extra low flow range.
The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.
VC valve bodies and actuators this cartridge fits
- Resideo VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and linear flow
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL1100/E
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL3100/U
- Resideo VCZAR1100/U 2-way 1 in fNPT VC Valve Assy 6.6 Cv and linear flow
- Resideo VCZBB1100/U 2-way 1/2 in fNPT VC Valve Assembly 3.5 Cv and linear flow
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZZ1500/U
- Series: VC
- Configuration: 2-way
- Flow range: Extra low flow
- Category: Zone Valve Parts
