| Valve Type | Cartridge Valve |
| Controlled Fluid | 60% Glycol Mixture |
| Application | Valve Cartridge |
| Used With | Two-way VC Cartridge Valves with 14 lbf |
| Compatible With | Use in cold, warm, and hot water applications. |
| Valve Flow Characteristic | Linear |
| Valve Stem Travel | 0.4 in, 10 mm |
| Valve Stem Material | Stainless Steel |
Description

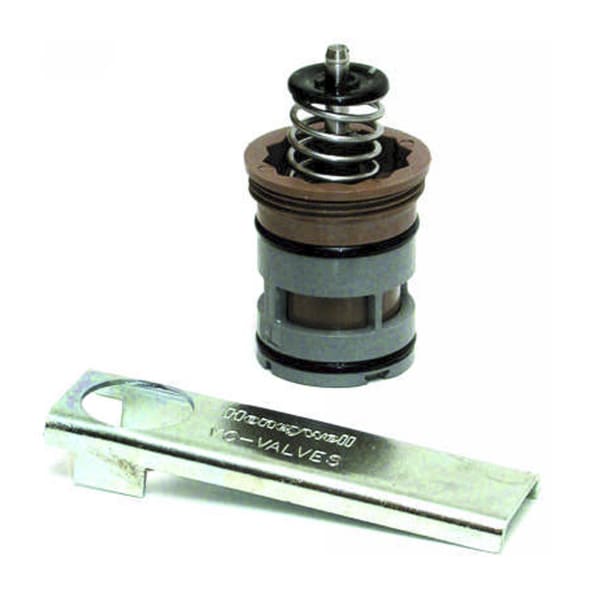

Replacement cartridge for Resideo (Honeywell Home) VC series 2-way zone valves, with an linear flow characteristic.
The VC design puts the seat, plug and seal inside a removable cartridge. A valve that no longer shuts off tight is rebuilt from the top, with the body left soldered or threaded in the line and the actuator reused.
A linear characteristic moves flow in step with stem position, which keeps a modulating loop predictable across the stroke.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the cartridge.
VC valve bodies and actuators this cartridge fits
- Resideo VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and linear flow
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL1100/E
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL3100/U
- Resideo VCZAR1100/U 2-way 1 in fNPT VC Valve Assy 6.6 Cv and linear flow
- Resideo VCZBB1100/U 2-way 1/2 in fNPT VC Valve Assembly 3.5 Cv and linear flow
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZZ1132/U
- Series: VC
- Configuration: 2-way
- Flow characteristic: Linear
- Category: Zone Valve Parts
