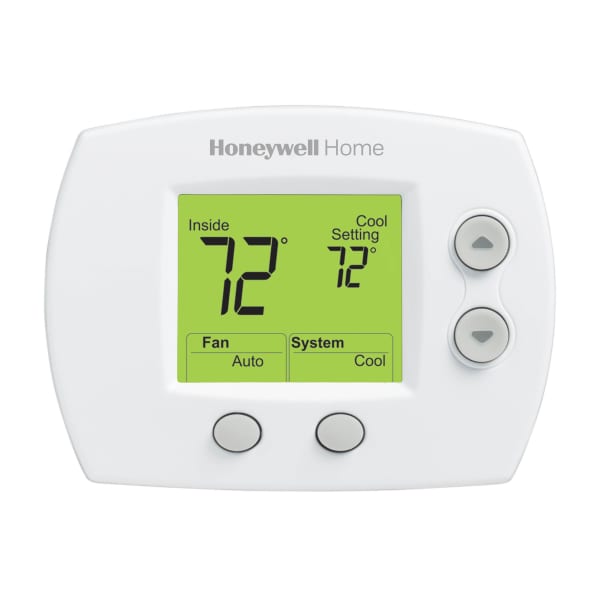

Honeywell Home TH5110D1022/U FocusPRO 5000 Heating and Cooling Thermostat Large Display

Item #: HONE-TH5110D1022/U
Mfr. part #: TH5110D1022/U

Key specifications

System typeConv. or HP, no aux
Stages1H/1C
PowerBattery or hardwire
ProgrammableNo
Voltage24 Vac or 750 mV

View all specifications

$92.99

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 0.53 lb
Box size: 5.95 × 4.05 × 2.65 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Honeywell Home
Manufacturer part #	TH5110D1022/U
Frequency	50 Hz; 60 Hz
Electrical Ratings	20 to 30 Vac or 750 mV
Operating Humidity	5 to 90% RH, non-condensing
Mounting	Horizontal
Application	1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
Dimensions	3 7/16 in. high x 4 1/2 in. wide x 1 5/16 in. deep
Stages	Up to 1 Heat/1 Cool
Switch Positions (System)	HEAT-OFF-COOL-AUTO
Switch Positions (Fan)	AUTO-ON
Power Method	Dual Powered: Battery or Hardwire
Color	Premier White®
Display	Large backlit display
Sensor Element	Thermistor
Accuracy (F)	±1 F
Switch Type	Relay
Terminal Designations	R, Rc, C, W (O/B), Y, G
Display Size	2.98 sq. in.
Changeover	Auto or Manual Selectable
Setting Temperature Range (F)	Heat: 40 F to 90 F; Cool: 50 F to 99 F
Cycles per Hour	Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current	1.0 A running
Heat Current	1.0 A running
Fan Current	0.5A running

TH5110D1022 has been discontinued by the manufacturer (2026-06). Suggested replacement: TH2320U4006 - FocusPro P200 Programmable, 3H/2C Heat Pump, 2H/2C Conventional, Large Display Thermostat.

The TH5110D1022 is a non-programmable thermostat from Honeywell Home.

A non-programmable thermostat holds one setpoint until someone changes it. That is the whole design, and it is the right design more often than the market admits: in a shop, a rental, a spare room or anywhere occupancy has no schedule, a programmable stat gets overridden permanently within a week and then behaves like this one with extra steps.

Where it hangs decides what it reads. A thermostat measures the air touching it and nothing else, so an interior wall about five feet up, out of direct sun, away from supply registers and doorway drafts, and clear of the back of a wall carrying hot water or flue pipe. Most complaints that a stat is “off by three degrees” are placement, not calibration — the stat is reading the truth about a spot nobody lives in.

These are also the straightforward answer to the C-wire problem. A smart thermostat needs a common wire to power itself continuously, and in an older house that wire is often not in the bundle — which turns a thermostat swap into a wire pull. A non-programmable stat does not draw a continuous 24 V supply for itself, so the wires already on the wall are usually the wires it needs.

If the stat has an adjustable heat anticipator, set it to the current stamped on the primary control rather than leaving it where it arrived. Too low and the burner shuts off early and the room never reaches setpoint; too high and it overshoots and then coasts cold. It is the one adjustment on a stat like this that changes comfort, and the one most often skipped.

Confirm the system type before ordering — low voltage, line voltage and millivolt thermostats look similar and are not interchangeable.
