| Operating Temperature | 32 F to 120 F |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Mounting | Horizontal |
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |
| Dimensions | 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON |
| Power Method | Battery |
| Color | Premier White® |
| Sensor Element | Thermistor |
| Differential Temperature (F) | ± 1 F |
| Programmability | 5-1-1 Day or 5-2 Day Program |
| Changeover | Auto or Manual Selectable |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool: 50 F to 99 F |
| Parts Needed for Operation (not included) - TrueZONE™ System | HZ432 or HZ322 TrueZONE™ panel; THM4000R1000 Wireless Adapter |
| Parts Needed for Operation (not included) - Non-Zoned System | THM5320R1000 Equipment Interface Module |
Description

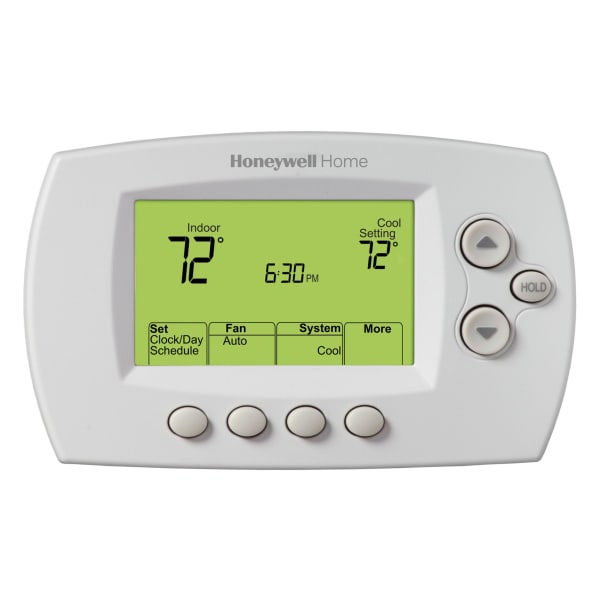

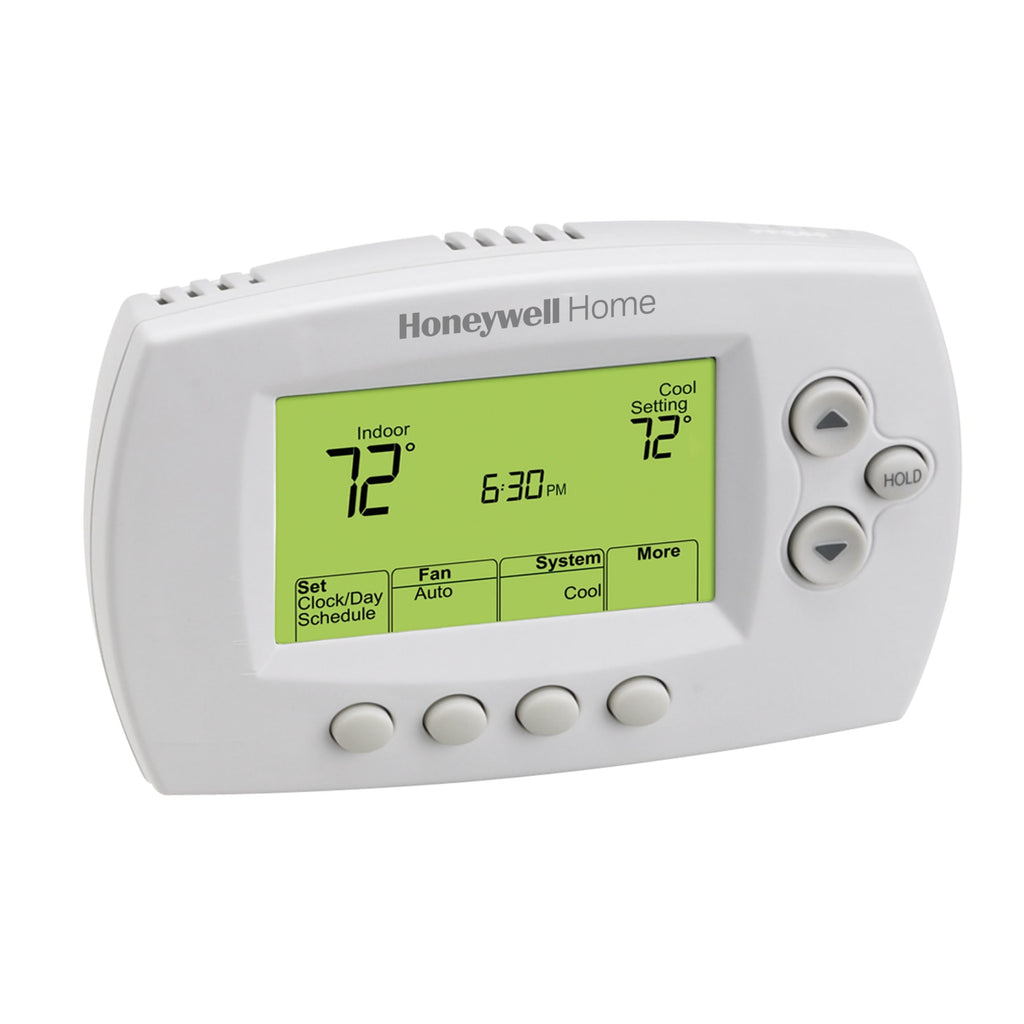

The TH6320R1004 is a FocusPRO 6000 programmable thermostat from Resideo (Honeywell Home), 5-1-1 scheduling, wireless.
A programmable thermostat pays for itself on the hours nobody is home. Setting back eight degrees for the working day and again overnight is the single largest saving available on an existing system, and it only happens reliably when the schedule does it instead of a person.
5-1-1 means weekdays on one schedule and Saturday and Sunday each on their own. That is the split that matches how houses are actually occupied — a 5-2 stat forces the weekend into one pattern and gets overridden the first Saturday somebody sleeps in.
The failure mode of a programmable stat is being left on permanent hold. If the schedule is going to be overridden within a week, a non-programmable stat does the same job with fewer buttons — and that is an honest recommendation, not a smaller sale.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH6320R1004/U
- Type: FocusPRO 6000 programmable thermostat
- Schedule: 5-1-1
- Stages: Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
- Application: Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity
- UPC: 085267329385
- Category: Thermostats
