T6 Pro Programmable Thermostat up to 3 Heat/2 Cool

Roll over image to zoom in Click on image to zoom

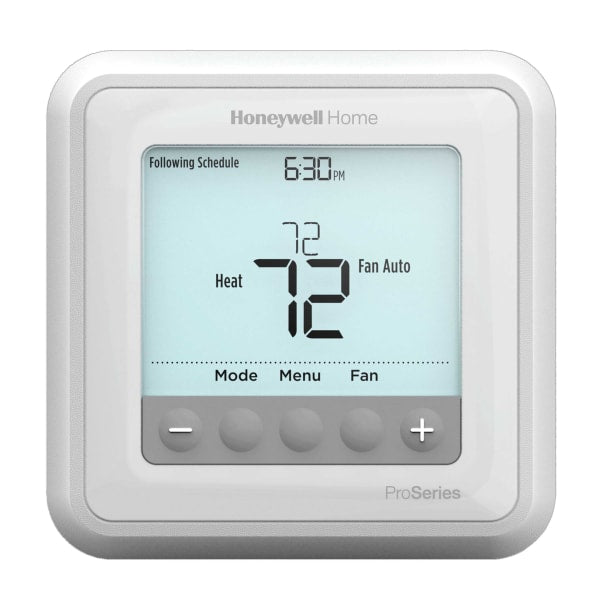

Honeywell Home TH6320U2008/U T6 Pro Programmable Thermostat up to 3 Heat/2 Cool

Name: Honeywell Home TH6320U2008/U T6 Pro Programmable Thermostat up to 3 Heat/2 Cool
Brand: Honeywell Home
SKU: HONE-TH6320U2008/U
Price: 139.30 USD
Availability: InStock

Honeywell HomeSKU: HONE-TH6320U2008/U

Price:

$139.30

Stock:

In stock (131 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Complete the install

Honeywell Home THP2400A1080/U Large Cover Plate & J-Box Adapter for T... $16.23

Add

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.91 lb
Box size: 14.8 × 5.45 × 2.45 in

Supply Voltage	20 to 30 Vac
Electrical Connections	Honeywell UWP Mounting System
Electrical Ratings	20 to 30 Vac
Operating Temperature	37 F to 102 F
Ambient Temperature	32 F to 120 F
Operating Humidity	5 to 90% RH, non-condensing
Mounting	UWP Mounting System
Application	24 Vac systems; Gas, Oil, Electric Warm Air; Hot water Coil; Gas, Oil, Electric Hydronic; or Steam / Gravity Systems
Includes	Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Dimensions	4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Hazmat Information	NOT RESTRICTED - SPECIAL PROVISION A123
Stages	Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems
Switch Positions (System)	HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)	AUTO-ON-CIRC-FOLLOW SCHEDULE
Shipping and Storage Temperature Range (F)	- 20 F to 120 F
LEDs	LED Back Light
Power Method	Battery or Hardwired
Display	Large Display, Soft Key Controls
Accuracy (F)	1 F
Differential Temperature (F)	± 1 F
Interstage Differential Temperature (F)	1 to 1.5 F Multistage models only
Programmability	7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display Size	5.44 sq. in.
Temperature Control Mode Selections	Ambient Air Temperature
Changeover	Auto or Manual
Setting Temperature Range (F)	Heat: 40 F to 90 F; Cool 50 F to 99F
Heat Current	0.02-1.0 A
Fan Current	0.02-.5 A
External Sensors Available	Optional: Outdoor -- C7089U1006, Remote Indoor — C7189U1005

The Honeywell Home TH6320U2008/U is a T6 Pro wall thermostat. It is rated for up to 3 heat and 2 cool.

Programmable. Setback on a schedule is where the savings actually come from on a system that runs daily. If the building empties on a predictable pattern, the schedule pays for the difference in price over a non-programmable unit; if it does not, it will not.

Where it sits in the range. Resideo builds these in tiers, and the tier number is the amount of control you get, not the build quality. T1 and PRO 1000 are single-stage and non-programmable — set it and leave it. T3 and PRO 3000 add a digital display and more staging. T4 and PRO 2000 add scheduling. T6 covers multi-stage and heat pump work, with a Smart version that adds Wi-Fi. T10 Pro is the top of the line, with RedLINK and remote room sensing. PRO 1000, PRO 2000 and PRO 3000 are the older names for the same tiers as T1, T4 and T3 — if you are matching what came out of the wall, the PRO number and the T number can be the same generation of product under two labels.

Before you order. Match the thermostat to the equipment, not to the room: count the heating and cooling stages the system actually has, and confirm whether it is a heat pump or a conventional system, because the two wire differently at the thermostat. A unit rated for more stages than you have will work; one rated for fewer will not run the equipment you own. If you are replacing a Honeywell Home unit, the part number carries over — Honeywell Home thermostats are made by Resideo, and the legacy numbering is the same.

Brand: Honeywell Home
Manufacturer Part #: TH6320U2008/U
UPC: 085267580632
Category: Thermostats
Shipping Weight: 0.5 lb

Full Specifications

Thermostat Type	Programmable; Digital; Low Voltage
WiFi	No
Color	White
Includes	T6 Pro Thermostat; UWP Wall Plate; Decorative Cover Plate; Screws and anchors; 2 AA Batteries; Literature
Stages	Up to 2 Heat/1 Cool Heat Pump Systems; 1 Heat/1 Cool Conventional Systems
Modes of Operation	Heat; Cool; Emergency Heat; Off; Auto
Program Type	5-2 Programmable; 7-Day Programmable; 5-1-1 Programmable; Scheduled Disabled
Fan Function	Cycled; Continuous
Alerts and Reminders	High Indoor Temperature; Low Indoor Temperature; Heat Pump Error; Battery Replacement; WiFi No Internet; Filter Change
Display Type	LCD Screen
Energy Star Certified	No
Features	Adaptive Intelligent Recovery; Backlit Display ; Filter Change Reminder
Power Source	Hardwired; Battery Operated
Battery Type	Alkaline
Product Height	4.06 in; 104 mm
Product Width	4.06 in; 104 mm
Product Depth	1.09 in; 28 mm
Warranty	5 Years
