Description

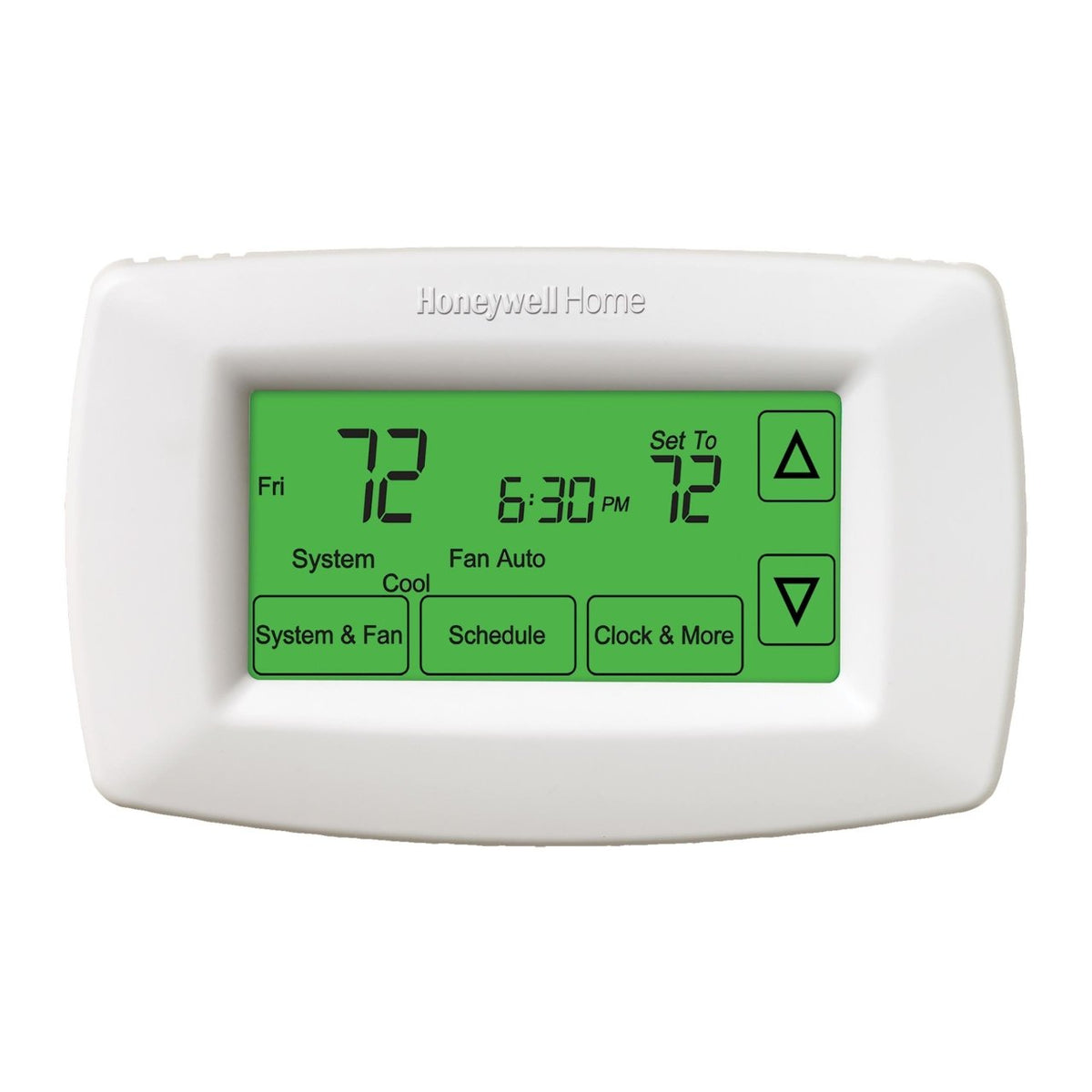

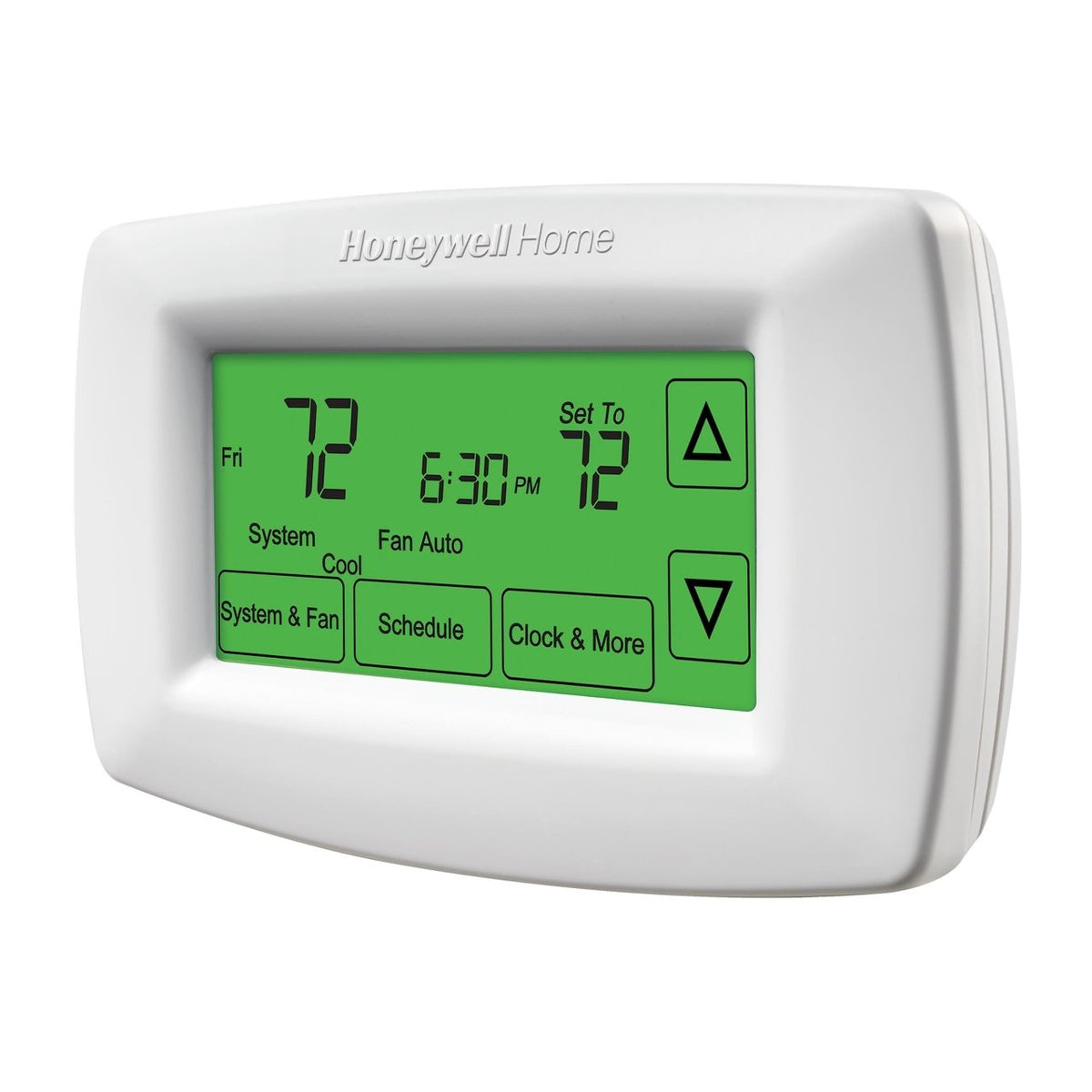

Touchscreen programmable thermostat.
Features
- Selectable: Programmable or Non-Programmable; The L terminal is an input or output
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH7220U1035/U
- Application: Conventional Systems, Heat Pumps with Auxiliary Heat
- Thermostat Type: Programmable
- Stages: Up to 2 Heat/2 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Systems
- Smart Home Integration: No
- Display Type: Touch Screen
- Display Size: 10 sq in
- Touchscreen: Yes
- Modes of Operation: Heat, Cool, Auto, Off
- Program Type: 7-Day Programmable
- Heat-Cool Changeover: Auto Changeover, 3 ° temperature difference
- Battery Type: Alkaline
- Number of Batteries: 2
- Battery Life: 1
- Battery Size: AA
- Warranty: 5 Years
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: Premier White®
- Sensor Type: Thermistor
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Operating Relative Humidity (Max): 90% RH, non-condensing
- Operating Relative Humidity (Min): 5% RH, non-condensing
- Backlight Options: On/Off in Idle
- Fan Function: On, Auto
- Compatible Sensor: Outdoor Temperature Sensor, Room Temperature Sensor
- Demand Response: No
- Running Current: 1.0 A
- Temperature Accuracy: 1 °F, 0.5 °C
- Auto Changeover: Yes
- Mounting Type: Horizontal Mount
- Power Supply Frequency: 50 Hz, 60 Hz
- Mounting Location: Wall, Internal
- Product Height: 3.75 in, 96 mm
- Product Width: 6 in, 152 mm
- Product Depth: 1.38 in, 35 mm
- Hazmat Information: Lithium metal button cells only contained in equipment, Excepted per PI970
- Features: Smart Response
- UPC: 085267399143
- Country of Origin: MX
- Category: Programmable Thermostats
