| Supply Voltage | 120 Vac |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | 6 in. (150 mm) tinned copper lead wires |
| Electrical Ratings | Max. 2000 W @ 120 V, 16.7 A resistive |
| Ambient Temperature | 32 F to 122 F |
| Mounting | Vertical |
| Application | Baseboard heater; Radiant ceiling; Convector or Fan-forced Heater; Electric Heating |
| Used With | Aube CT240/CT241 Telephone Controller |
| Dimensions | 4.9 in. X 2.8 in. X 0.9 in. |
| UL | Approved |
| CSA | Approved; Compliant to CAN/CSA-C828-06 |
| Switch Positions (System) | °C/°F (switch MUST be set to AF for this thermostat to be operational); AF (ambient + floor)/F (floor only) |
| Power Method | Hardwired |
| Color | White |
| Sensor Element | Thermistor |
| Accuracy (F) | 0.9 F |
| Differential Temperature (F) | 1 F |
| Switching Action | SPST |
| Switch Type | Epoxy-soundproofed relay |
| Setting Temperature Range (F) | 40 F to 86 F |
| Cycles per Hour | 4 |
Description

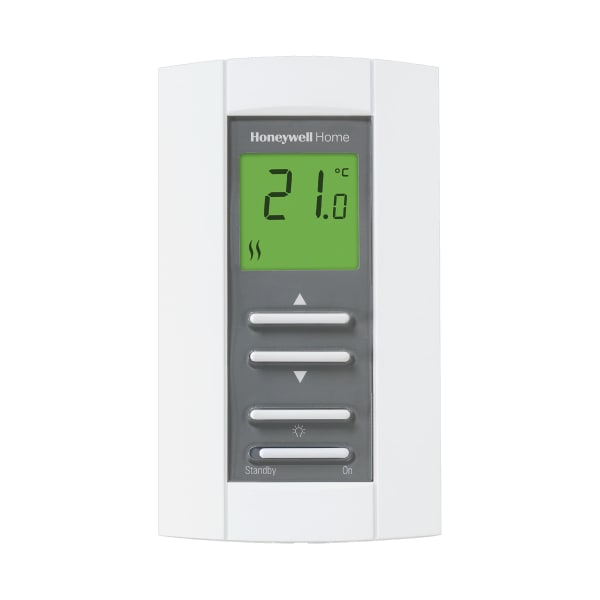

The TH114-A-120S is a line-voltage thermostat from Resideo (Honeywell Home) for electric resistance heat — baseboard, convectors, radiant ceiling or panel heaters, wired for 120 V.
Line voltage is the distinction that matters here. A low-voltage thermostat switches a 24 V control circuit and lets a furnace or boiler do the work; a line-voltage thermostat carries the full heater current itself. They are not interchangeable, and a low-voltage stat wired to a baseboard circuit fails immediately.
This is a single-pole thermostat: it breaks one leg of the supply. One leg stays live at the heater even with the thermostat off, so the circuit breaker is the only true disconnect. Confirm what your installation calls for before substituting a single-pole for a double-pole.
This is a manual thermostat: one setpoint, held until someone changes it. In a room that is occupied on no particular schedule — a workshop, a spare room, a rental — a manual stat is the one that actually gets used, because no one has to reprogram it after a power cut.
Match the voltage and the pole configuration to the heater circuit, and check the amperage of the heater against the rating of the thermostat. A thermostat sized below the load is the most common cause of a line-voltage stat failing in its first season.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH114-A-120S/U
- Type: Line-voltage thermostat
- Voltage: 120 V
- Poles: Single-pole
- Control: Manual
- Frequency: 50/60 Hz
- UPC: 775264924774
- Category: Line Voltage Thermostats
