Name: Resideo Plate Mounted 120 V AC Transformer with 9 in Leadwires AT72D1006/U
Brand: Resideo
SKU: HONE-AT72D1006/U
Price: 54.44 USD
Availability: InStock

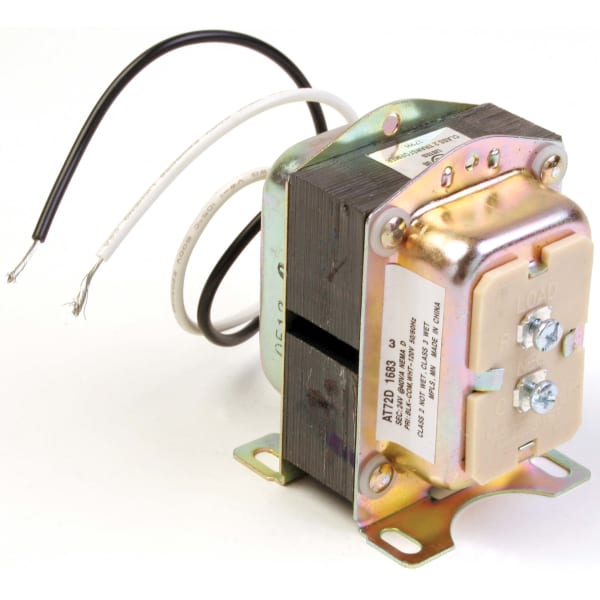

Plate mounted 120 V AC Transformer with 9 in leadwires

Roll over image to zoom in Click on image to zoom

Frequency	50 Hz; 60 Hz
Electrical Ratings	Primary voltage--120 Vac; Secondary voltage--26.5 V.O.C.
Mounting	4 x 4 in. plate-mounted, protruding into junction box
Dimensions	3 7/32 in. high x 2 7/32 in. wide x (1 1/16 into plate x 2 in. above plate) deep
UL	UL Component Recognized.
CSA	Certified
Temperature Range (F)	-20 F to +105 F
NEMA Rating	NEMA type D
Approvals, N.E.C.	NEC Approved.
Electrical Connections (Primary)(in.)	9 in. leadwires
Electrical Connections (Secondary)(in.)	(2) screw terminals
Electrical Ratings, Output	24 Vac at 40 VA

The AT72D1006 is a control transformer from Resideo (Honeywell Home), 72 VA, 120 V primary, plate mount.

Almost every heating and cooling control runs on 24 volts, and the transformer is what makes it. It takes line voltage in and delivers the low-voltage supply that the thermostat, the zone valves, the relays and the gas valve all share.

Size it by VA, not by voltage. VA is the load the transformer can carry, and every device on the control circuit adds to it — a zone valve pulls current while it drives, a relay coil holds current the whole time it is energized, and a Wi-Fi thermostat draws continuously. A transformer sized for the original equipment will not carry the same system after two zones and a smart stat have been added, and the symptom is intermittent: things work alone and fail together.

Mounting matters more than it looks. The transformer has to land where the enclosure has room and where the leads reach, and a foot-mount body will not sit in a knockout that was made for a plate mount.

Leadwires are 9 inches.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: AT72D1006/U
Type: Control transformer
Rating: 72 VA
Primary: 120 V
Secondary: 24 Vac
Mounting: Plate
Leadwires: 9 in
UPC: 085267035835
Category: Transformers

Full Specifications

Application	40 VA transformers power 24 V systems including thermostats, gas valves and relays.
NEMA Rating	Yes
Primary Connection Size	9 in, 229 mm
Primary Connection Type	Leadwires: Black and White
Primary Input Voltage	120 V ac
Secondary Connection Type	(2) screw terminals
Secondary Open Circuit Voltage	26.5 V.O.C.
VA Rating	40 VA
Frequency	50 Hz; 60 Hz
Approvals and Standards	UL Component Recognized, CSA Certified, NEC Class 2
Ambient Operating Temperature (Max)	105 °F, 41 °C
Ambient Operating Temperature (Min)	-20 °F, -29 °C
Product Height	3.22 in, 81.8 mm
Product Width	2.22 in, 56.4 mm
