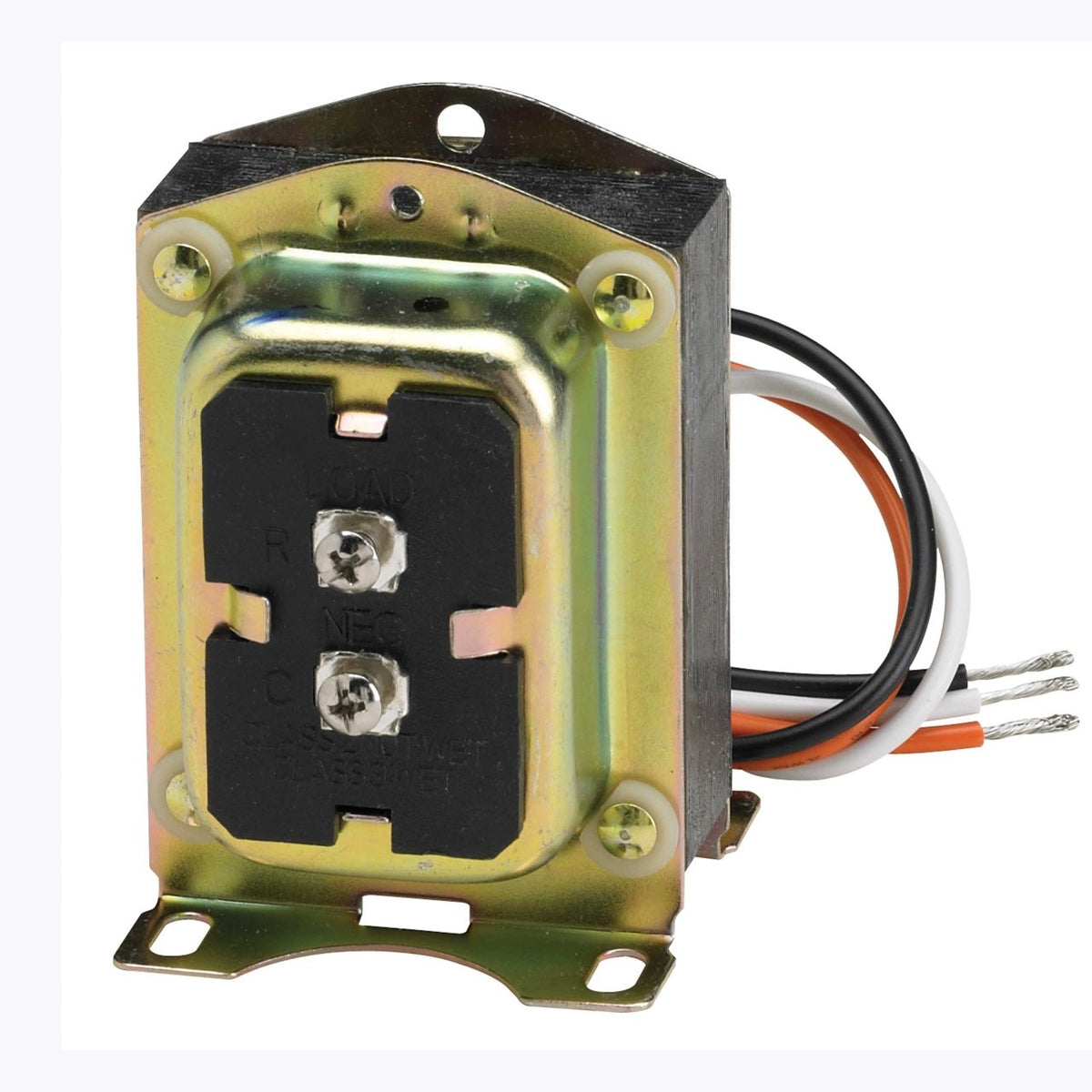

Resideo AT140A1042/U Transformer, 120/240 V, Screw Terminals on Secondary

Transformer rated 120/240 V with screw terminals on the secondary.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AT140A1042/U
• Application: 40 VA general purpose transformers power 24 V AC circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings
• NEMA Rating: No
• Primary Connection Size: 9 in, 229 mm
• Primary Connection Type: Leadwires: Black-COM; White-120 V; Orange - 240 V
• Primary Input Voltage: 208/240 V ac
• Secondary Connection Type: (2) screw terminals
• Secondary Open Circuit Voltage: 27 V.O.C.
• VA Rating: 40 VA
• Frequency: 60 Hz
• Approvals and Standards: UL Listed: A,C,F models. File # E14881, CSA Certified: A & B models
• Ambient Operating Temperature (Max): 105 °F, 41 °C
• Ambient Operating Temperature (Min): -20 °F, -29 °C
• UPC: 085267262774
• Country of Origin: CN
• Category: Transformers
