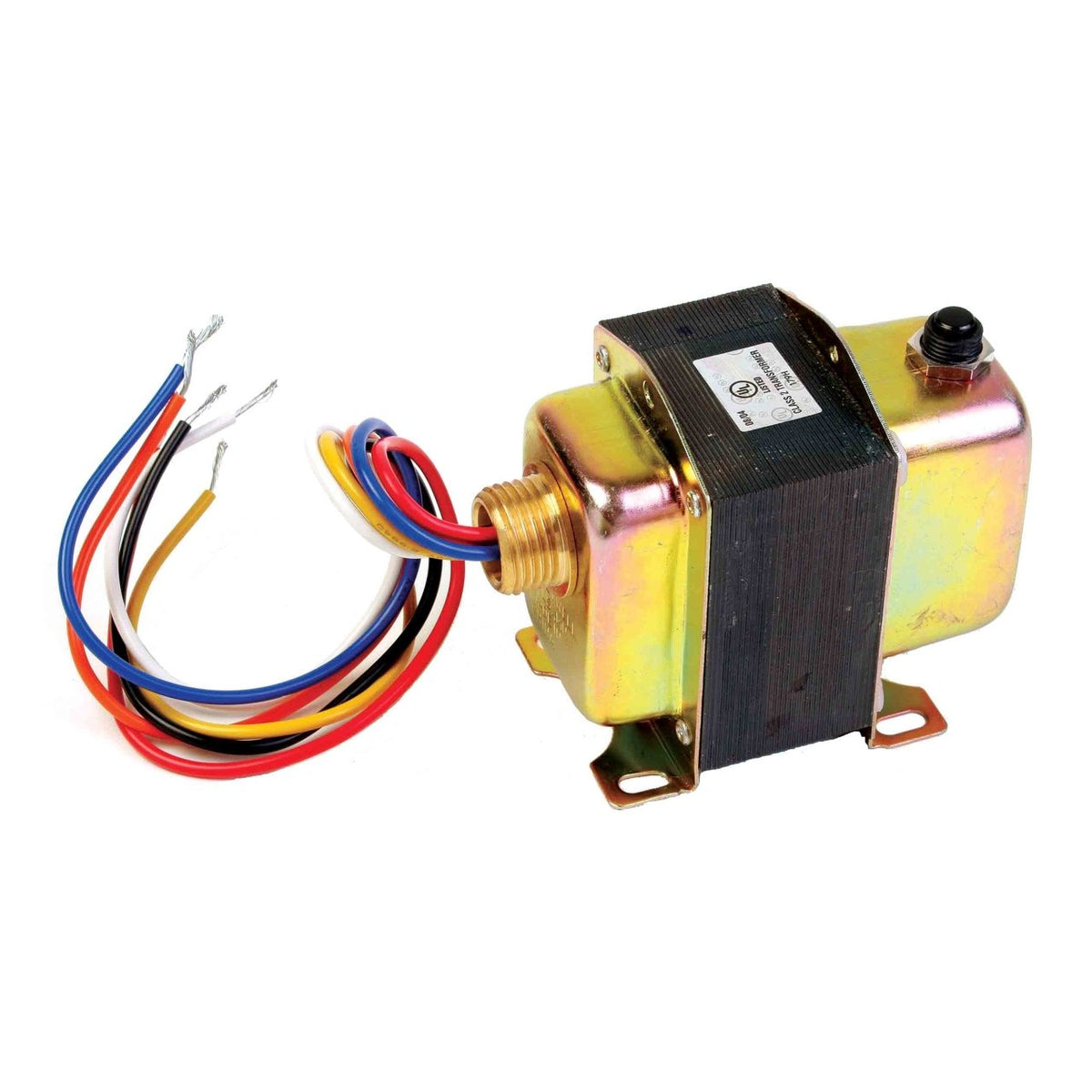

Resideo AT175F1031/U Transformer with Circuit Breaker, 208/277/480 V, Conduit and Foot Mount
Resideo

Resideo AT175F1031/U Transformer with Circuit Breaker, 208/277/480 V, Conduit and Foot Mount

Item #
HONE-AT175F1031/U
Mfr. part #
AT175F1031/U
UPC
085267151146
$100.19
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

5% off at checkout with code SAVE5

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.7 lb
  • Box size: 5.3 × 4.15 × 3.25 in
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #AT175F1031/U
UPC085267151146

Tradeline transformer rated 208/277/480 V with conduit and foot mounting and a circuit breaker.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: AT175F1031/U
  • NEMA Rating: No
  • Primary Connection Size: 9 in, 229 mm
  • Primary Connection Type: Leadwires: Black - COM, Red - 208 V, Brown - 277 V, Black with red stripe - 480 V
  • Primary Input Voltage: 208/277/480 V ac
  • Secondary Connection Size: 9 in, 229 mm
  • Secondary Connection Type: Leadwires
  • Secondary Open Circuit Voltage: 27 V.O.C.
  • VA Rating: 75 VA
  • Frequency: 60 Hz
  • Approvals and Standards: UL Listed: File no. E14881, Guide no. XOKV, CSA Certified: File No. LR95329-18
  • Includes: Button for manually resetting the circuit breaker and metal end bells
  • Ambient Operating Temperature (Max): 77 °F, 25 °F
  • Ambient Operating Temperature (Min): -20 °F, -29 °C
  • Product Height: 3.19 in, 81 mm
  • Product Width: 2.19 in, 56 mm
  • UPC: 085267151146
  • Country of Origin: CN
  • Category: Transformers
