Description

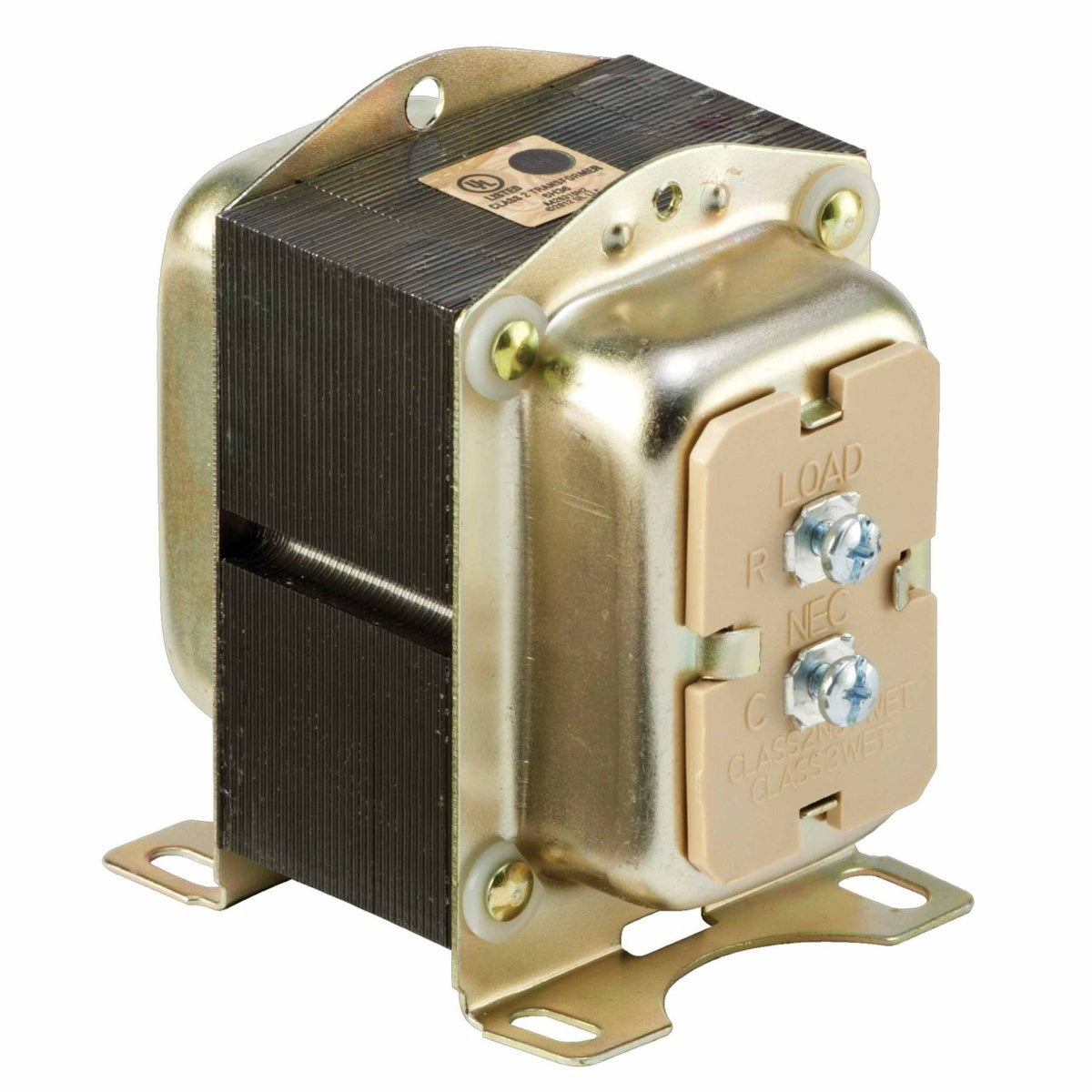

277/24 VAC transformer with secondary leadwires and foot mounting.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AT87A1189/U
- Application: 48 VA powers 24V air conditioning circuits and other applications that do not exceed the listed ratings.
- NEMA Rating: Yes
- Primary Connection Size: 12 in, 305 mm
- Primary Connection Type: Leadwires: Black and Brown
- Primary Input Voltage: 277 V ac
- Secondary Connection Size: 12 in, 305 mm
- Secondary Connection Type: Leadwires
- Secondary Open Circuit Voltage: 26.5 V.O.C.
- VA Rating: 50 VA
- Frequency: 50 Hz; 60 Hz
- Approvals and Standards: UL Component Recognized, CSA Certified, NEC Class 2
- Includes: Energy limiting overload protection
- Ambient Operating Temperature (Max): 105 °F, 41 °C
- Ambient Operating Temperature (Min): -20 °F, -29 °C
- Product Width: 2.22 in, 56.4 mm
- UPC: 085267036207
- Country of Origin: CN
- Category: Transformers
