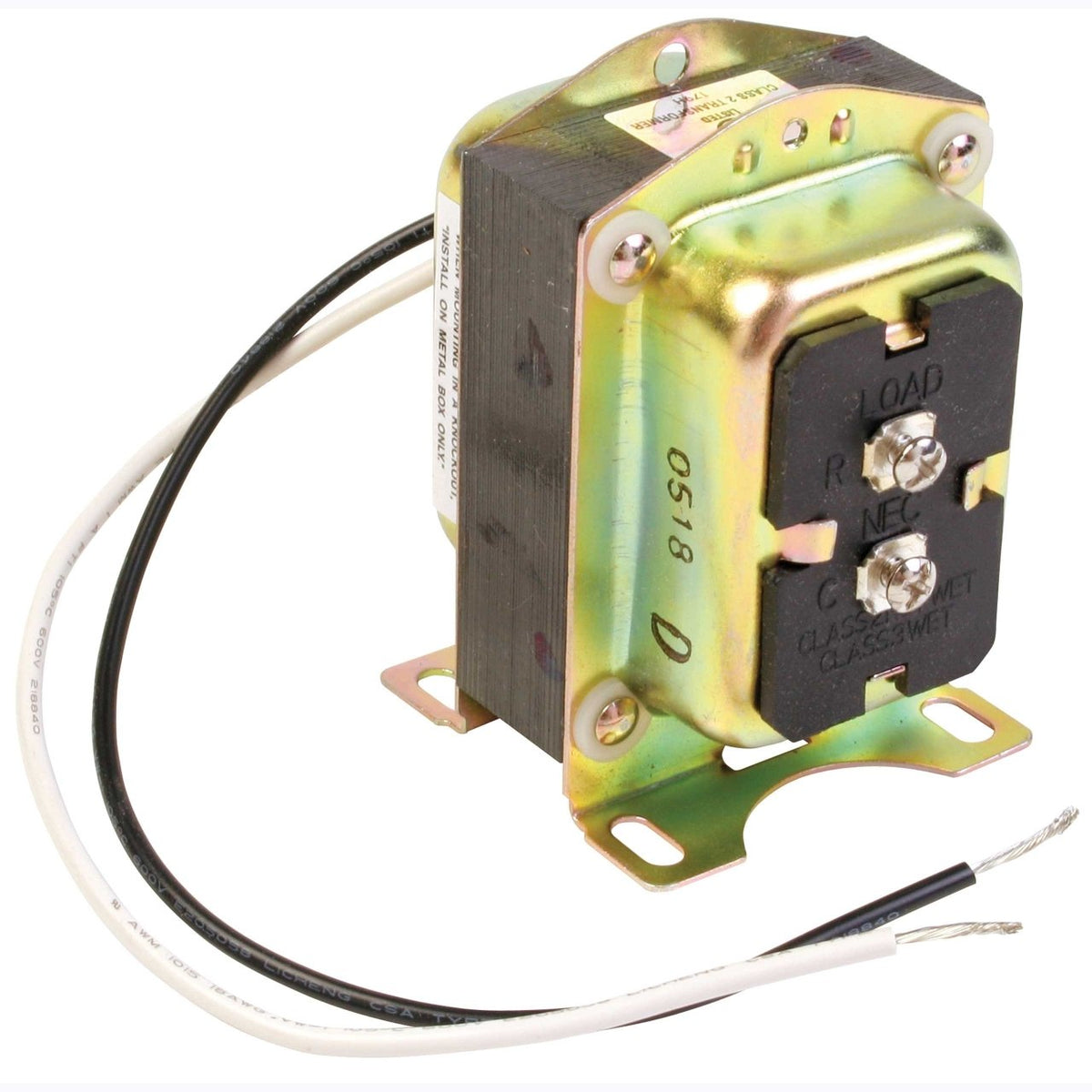

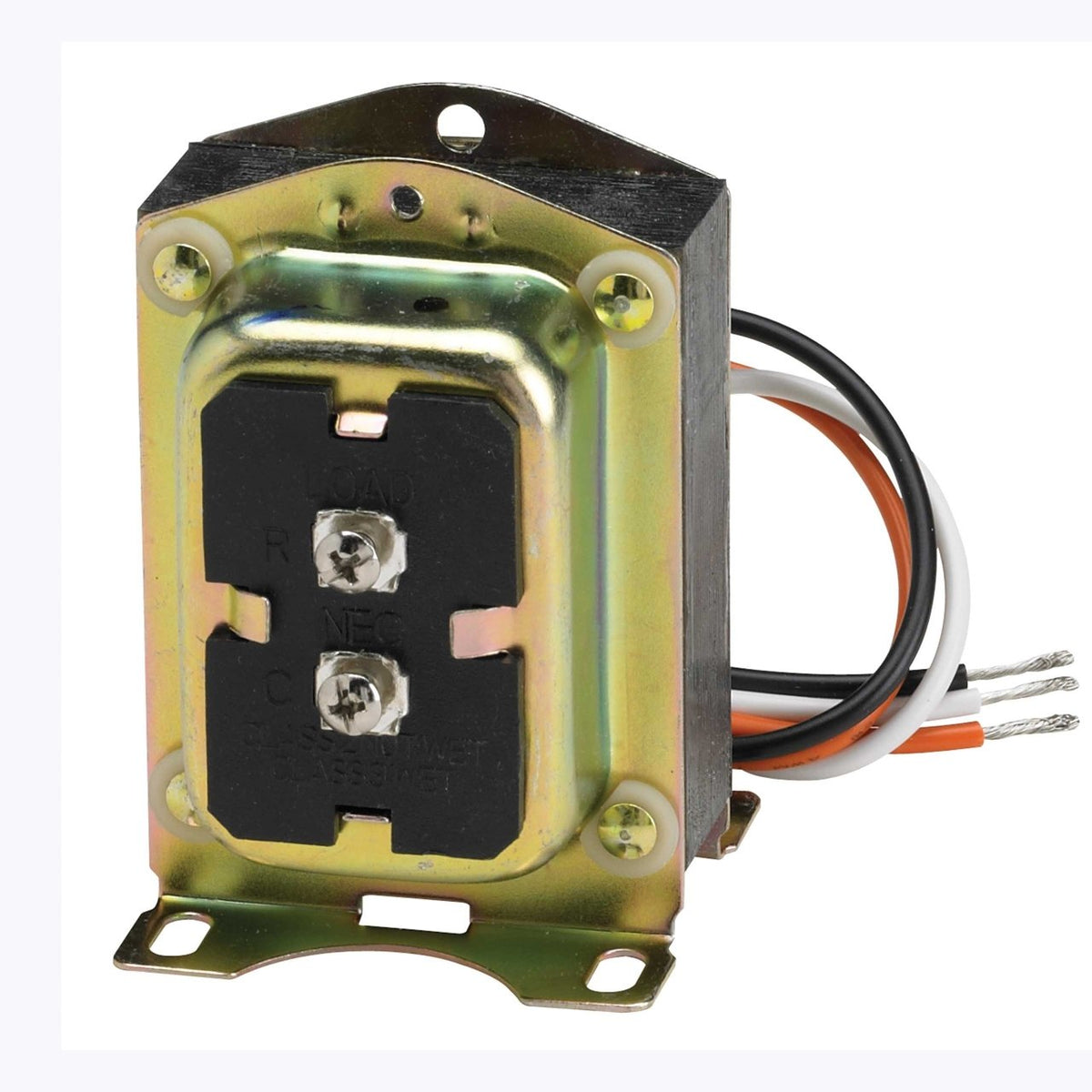

Resideo AT140A1000/U Transformer, 120 V, Universal Mounting

Transformer rated 120 V with universal mounting for plate, foot or knockout installation.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AT140A1000/U
• Application: Power To 24 VAC Circuits In Heating and Cooling Systems
• NEMA Rating: No
• Primary Connection Size: 9 in, 229 mm
• Primary Input Voltage: 120 V ac
• Secondary Connection Type: (2) screw terminals
• Secondary Open Circuit Voltage: 27 V.O.C.
• VA Rating: 40 VA
• Frequency: 60 Hz
• Approvals and Standards: UL Listed: A,C,F models. File # E14881, CSA Certified: A & B models
• Includes: Clamp, Mounting Plate, Mounting Feet
• Color: Metallic
• Ambient Operating Temperature (Max): 105 °F, 41 °C
• Ambient Operating Temperature (Min): -20 °F, -29 °C
• Product Height: 3.19 in
• Product Length: 2.38 in
• Product Width: 3.13 in
• UPC: 085267034999
• Country of Origin: CN
• Category: Transformers
