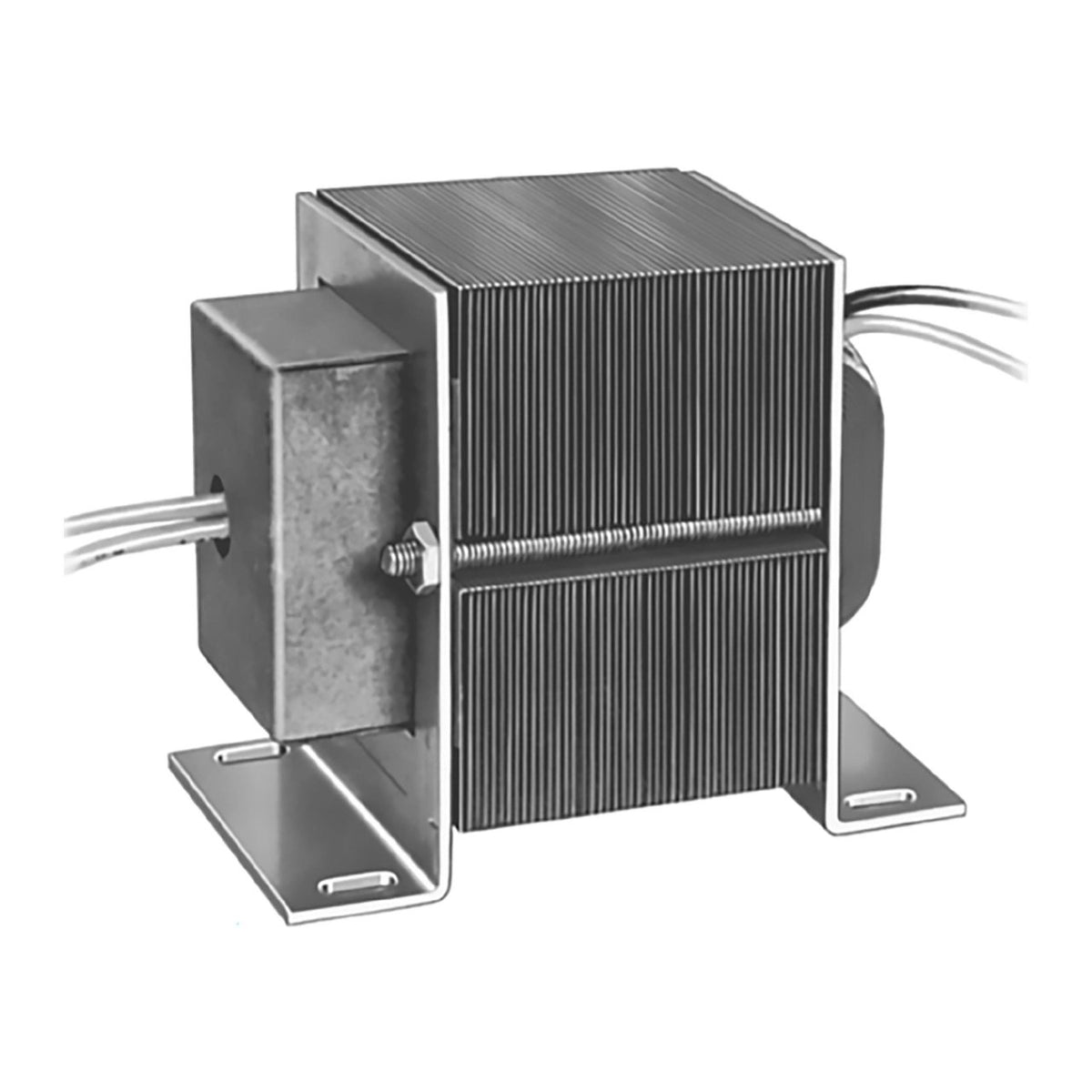

Resideo AT88A1005/U Transformer, 75 VA, 120 V, Fused Secondary, Foot Mount

Item #: HONE-AT88A1005/U
Mfr. part #: AT88A1005/U
UPC: 085267036368

$167.30

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 3.2 lb
Box size: 5.6 × 3.8 × 3.7 in

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	AT88A1005/U
UPC	085267036368

75 VA transformer, 120 V 60 Hz, with fused secondary, 12 in primary and secondary leadwires and foot mounting.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: AT88A1005/U
Application: 75 VA transformers powers 24 Vac air conditioning circuits and other applications that do not exceed the listed ratings.
NEMA Rating: No
Primary Connection Size: 12 in, 305 mm
Primary Connection Type: Leadwires: Black/White
Primary Input Voltage: 120 V ac
Secondary Connection Size: 12 in, 305 mm
Secondary Connection Type: Leadwires
Secondary Open Circuit Voltage: 26.5 V.O.C.
VA Rating: 75 VA
Frequency: 50 Hz; 60 Hz
Approvals and Standards: UL Component Recognized, CSA Certified, NEC Class 2
Includes: Internally fused secondary for overload protection
Ambient Operating Temperature (Max): 105 °F, 41 °C
Ambient Operating Temperature (Min): -20 °F, -29 °C
Product Height: 2.22 in, 56.4 mm
Product Width: 2.19 in, 56 mm
UPC: 085267036368
Country of Origin: CN
Category: Transformers
