| Valve Type | Zone Valve |
| Voltage | 24 Vac |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | screw terminal block on same side of manual lever |
| Ambient Temperature | 125 F Maximum |
| Application | Replacement Head for V Series Zone Valve |
| Used With | Two-way valves; Valves with Action of Spring return to close |
| Auxiliary Switch Ratings | 4.4 A running @ 120 V; 50 VA pilot duty @ 24 V |
Description

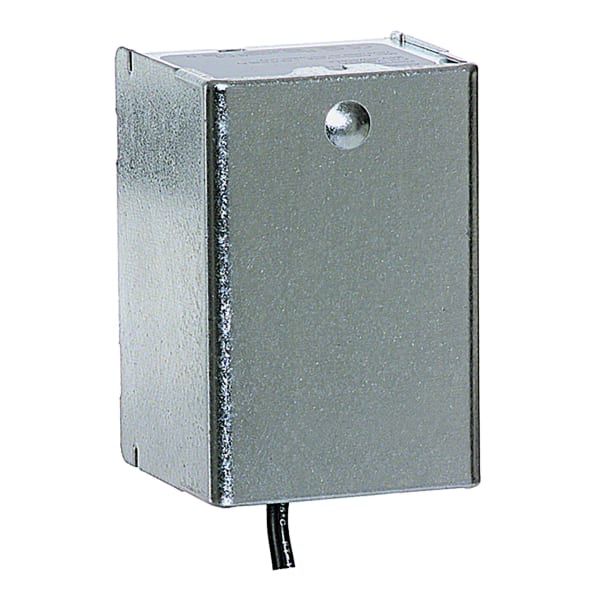

Replacement actuator head for Resideo (Honeywell Home) V8043F zone valves. When the motor in the valve fails, this part swaps onto the valve body that is already in the piping — the connections stay soldered or threaded in place and the system does not have to be drained.
Replacing the head instead of the whole valve is the difference between a fifteen-minute service call and a soldering job on a live heating system. It is the reason the V-series has stayed in the field as long as it has.
This head includes the end switch: a dry contact that closes when the valve reaches full open and starts the boiler or circulator. A valve wired for pump start needs a head with the end switch — fitting one without it leaves the zone opening while the circulator never runs.
Valves this part is built for
- Resideo V8043F1051/U 24 Vac 1 in Sweat N.C. Zone Valve
- Resideo 24 Vac 3/4 in Sweat N.C. Zone Valve V8043F1093/U
- Resideo 24 Vac 3/4 in Sweat N.C. QuickFit Zone Valve V8043F5036/U
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: 40003916-048/U
- Fits: V8043F
- Voltage: 24 Vac
- End switch: Yes
- Category: Zone Valve Replacement Heads
