Actuator with with Power Failure Reposition 2 to 10 Vdc

Roll over image to zoom in Click on image to zoom

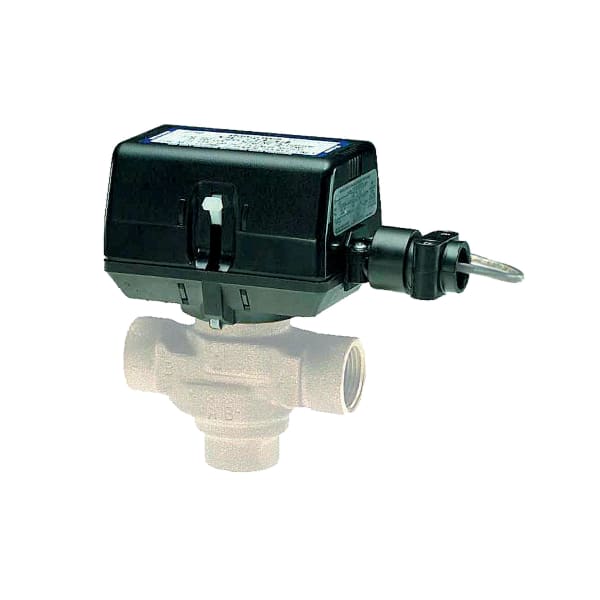

Honeywell Home VC7936ZZ11-529/U Actuator with with Power Failure Reposition 2 to 10 Vdc

Name: Honeywell Home VC7936ZZ11-529/U Actuator with with Power Failure Reposition 2 to 10 Vdc
Brand: Honeywell Home
SKU: HONE-VC7936ZZ11-529/U
Price: 275.16 USD
Availability: InStock

Honeywell HomeSKU: HONE-VC7936ZZ11-529/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$275.16

Stock:

In stock (11 units), ready to be shipped

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Supply Voltage	24 Vac
Frequency	50 Hz; 60 Hz
Electrical Connections	Plenum-rated cable
Close-off Pressure	60 psid
Fluid Temperature	203 F
Ambient Temperature	32 F to 150 F
Operating Humidity	5 to 95% RH, non-condensing
Mounting	Direct Coupled
Application	HVAC
Used With	VC Series Valves, 1000 Series 2-way and 6000 Series 3-way with proportional cartridges
Includes	Flexible conduit adapter
Dimensions	2.8 in. high x 3.7 in. wide x 2.7 in. deep
UL	Listed 94-5V
CSA	CSA Certified: LR1322-367
Materials	Plastic housing
Power Consumption	Driving-- 12 Watts, 18 VA inrush
Shipping and Storage Temperature Range (F)	-40 F to +150 F
Approvals, CE	89/336/ECC, 73/23/EEC
Environmental, Electrical or Ingress Protection Rating	Double Insulated,IP40
Internal Auxiliary Switch	0
Actuator Type	Valve
Control Signal	24V Pulse Width Modulation; On/Off; 24 Vac Floating; 2 to 10 Vdc
Fail Safe Mode	N.O. or N.C., switchable electronic
Stroke (in.)	0.4 in.
Cable	Molded strain relief, conduit clamp
Timing, Nominal	Driving @ 60 Hz-- 60 to 120 sec
Spring Return Timing	Nominal-- 12 sec
Shaft Adapter Type	Self-alignment
Manual operation	Lever

Specification Sheet PDF ↗

The VC7936ZZ11-529 is a two-position actuator for Honeywell Home VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.

Two-position control is the standard arrangement for residential zoning: the actuator drives fully open on a call for heat and returns fully closed when the call ends.

What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the actuator.

VC valve bodies and cartridges this actuator works with

Brand: Honeywell Home
Manufacturer Part #: VC7936ZZ11-529/U
Series: VC
Control type: Two-position
Category: Zone Valve Actuators

Full Specifications

Application	HVAC
Approvals and Standards	Listed 94-5V, CSA Certified: LR1322-367, CE Approval: 89/336/ECC, CE Approval: 73/23/EEC
Product Features	Self-Alignment Shaft Adapter
For Use With	VC Series Valves, 1000 Series 2-way, 6000 Series 3-way with proportional cartridges
Compatible With	Use in cold, warm, and hot water applications
Control Signal	24 V Pulse With Modulation, On/Off, 24 V AC Floating, 2 to 10 V DC
Warranty	1 Year
Includes	Flexible conduit adapter
Mounting Type	Direct Coupled
Ambient Operating Temperature (Min)	32 °F, 0 °C
Ambient Operating Temperature (Max)	150 °F, 65 °C
Operating Relative Humidity (Min)	5% Non-condensing
Operating Relative Humidity (Max)	95% Non-condensing
Protection Class	Double Insulated, IP40
Fail-Safe Operation Type	Normally Open or Closed\|Switchable electronic
Spring Return Timing	Nominal-- 12 sec
Drive Time	60 to 120 sec
Supply Voltage	24 V AC
Power Supply Frequency	50 Hz, 60 Hz
Power Consumption	12 W, 18 VA inrush
Number of Internal Auxiliary Switches	0
Actuator Connection	Valve
Connection Length	5 ft., 1.5 m
Connection Type	Plenum-rated cable
Stroke (Max)	0.4 in, 10 mm
Product Height	2.8 in, 70 mm
Product Width	3.7 in, 94 mm
Product Depth	2.7 in, 68 mm
Housing Material	Plastic
