| Supply Voltage | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Electrical Ratings | 18 to 30 Vac |
| Operating Temperature | 32 F to 120 F |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Mounting | Horizontal |
| Application | Up to 2 Heat/2 Cool Conventional Systems; Up to 3 Heat/2 Cool Heat Pumps |
| Used With | THP9045 Wire Saver |
| Dimensions | 3 1/2 in. High, 4 1/2 in. Wide, 7/8 in. Deep |
| Stages | Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Power Method | Hardwired |
| Color | Premier White® |
| Display | Color Touchscreen |
| Programmability | 7 Day Program or Non-Programmable |
| Terminal Designations | R, RC, C, W (O/B), W2 (AUX/E), Y, Y2, G, L, K |
| Scheduling | On-line scheduling or locally at thermostat |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool: 50 F to 99 F |
Description

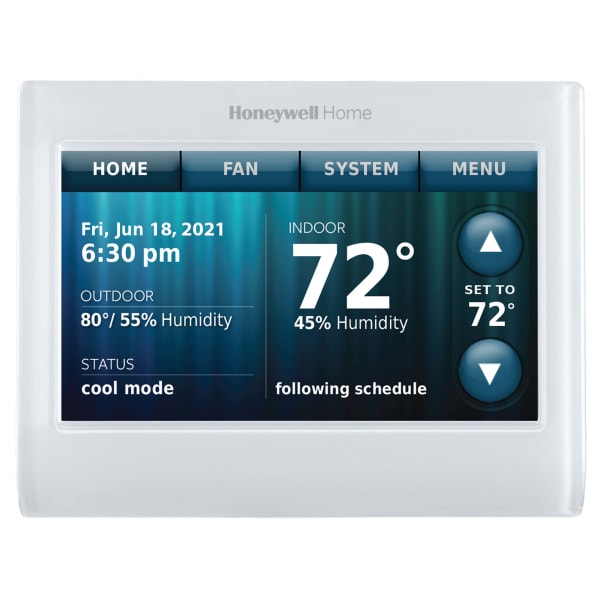

The TH9320WF5003 is a WiFi 9000 Color thermostat from Resideo (Honeywell Home), Wi-Fi connected, Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional.
A thermostat earns its price on the equipment it can drive properly, not on the screen. Multi-stage heating, a heat pump with auxiliary, humidification and ventilation are all decisions the thermostat makes or fails to make; a stat that can only switch one stage runs two-stage equipment as though it were single-stage and throws away the efficiency that was paid for.
This one drives Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional. Check that against the equipment before ordering — it is the specification that decides whether the install works, and the one most often skipped in favor of the feature list.
Wi-Fi gives remote control and alerts. The alert is worth more than the control: a house that reports it is at 45 °F in February is a house where something can still be done about it.
Used with: THP9045 Wire Saver.
Goes with: THP9045A1023.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH9320WF5003/U
- Type: WiFi 9000 Color thermostat
- Stages: Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional
- Supply voltage: 18 to 30 Vac
- System switch: HEAT-OFF-COOL-AUTO-EM.HEAT
- Application: Up to 2 Heat/2 Cool Conventional Systems; Up to 3 Heat/2 Cool Heat Pumps
- Used with: THP9045 Wire Saver
- Dimensions: 3 1/2 in High, 4 1/2 in Wide, 7/8 in Deep
- UPC: 085267344951
- Shipping weight: 0.65 lb
- Category: Thermostats
