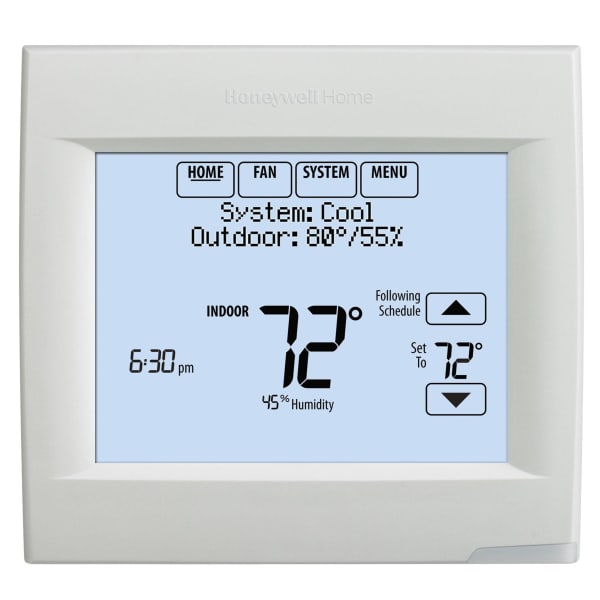

Honeywell Home TH8321WF1001/U Wi-Fi VisionPRO® 8000 for residential or commercial use. Stages up to Up to 3 Heat / 2 Cool.

Roll over image to zoom in Click on image to zoom

Honeywell Home TH8321WF1001/U VisionPRO 8000 Wi-Fi Touchscreen Thermostat, up to 3 Heat/2 Cool

Name: Honeywell Home TH8321WF1001/U VisionPRO 8000 Wi-Fi Touchscreen Thermostat, up to 3 Heat/2 Cool
Brand: Honeywell Home
SKU: HONE-TH8321WF1001/U
Price: 333.67 USD
Availability: InStock

Honeywell HomeSKU: HONE-TH8321WF1001/U

Price:

$333.67

Stock:

Only 8 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Complete the install

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 0.98 lb
Box size: 6.1 × 5.1 × 2.35 in

Supply Voltage	18 to 30 Vac
Frequency	50 Hz; 60 Hz
Electrical Connections	Screw terminals
Electrical Ratings	18 to 30 Vac
Operating Temperature	32 F to 120 F
Operating Humidity	5% to 90% RH, non-condensing
Application	Up to 2 Heat/2 Cool Conventional Systems; Up to 3 Heat/2 Cool Heat Pumps
Dimensions	4-5/8 in. High, 4-15/16 in. Wide, 1-1/8 in. Deep
Stages	Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Switch Positions (System)	HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)	AUTO-ON-CIRC-FOLLOW SCHEDULE
Power Method	Hardwired
Color	Arctic White
Display	Touch Screen
Sensor Element	Thermistor
Switching Action	SPST
Switch Type	Relay
Programmability	7 Day Program or Non-Programmable
Terminal Designations	R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1
Display Size	10 sq in.
Changeover	Auto or Manual
Setting Temperature Range (F)	Heat: 40 F to 90 F; Cool 50 F to 99 F

The TH8321WF1001 is a VisionPRO 8000 thermostat from Resideo (Honeywell Home), Wi-Fi connected, Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional.

A thermostat earns its price on the equipment it can drive properly, not on the screen. Multi-stage heating, a heat pump with auxiliary, humidification and ventilation are all decisions the thermostat makes or fails to make; a stat that can only switch one stage runs two-stage equipment as though it were single-stage and throws away the efficiency that was paid for.

This one drives Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional. Check that against the equipment before ordering — it is the specification that decides whether the install works, and the one most often skipped in favor of the feature list.

Wi-Fi gives remote control and alerts. The alert is worth more than the control: a house that reports it is at 45 °F in February is a house where something can still be done about it.

Goes with: THP9045A1023.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: TH8321WF1001/U
Type: VisionPRO 8000 thermostat
Stages: Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional
Supply voltage: 18 to 30 Vac
System switch: HEAT-OFF-COOL-AUTO-EM.HEAT
Application: Up to 2 Heat/2 Cool Conventional Systems; Up to 3 Heat/2 Cool Heat Pumps
Dimensions: 4-5/8 in High, 4-15/16 in Wide, 1-1/8 in Deep
UPC: 085267872416
Shipping weight: 0.5 lb
Category: Thermostats

Full Specifications

Application	24 Vac systems; Gas, Oil, Electric Warm Air, Hot water Coil; Gas, Oil, Electric Hydronic, Steam / Gravity Systems, Dual Fuel
Product Features	Intuitive programming for easier setup, Remote comfort control via computer, tablet or smartphone, Universal application across more system types, Equipment check/change reminders, Programmable for energy savings, ENERGY STAR® Certified
Thermostat Type	Digital, Low Voltage, Programmable, WiFi
Stages	Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Smart Home Integration	Yes
Display Type	Touch Screen
Display Size	10 sq in
Touchscreen	Yes
Display Language	English
Modes of Operation	Heating, Cooling
Program Type	7-Day Programmable, Manual / Not Programmed
Energy Star Certified	Yes
Battery Size	Not Applicable
Warranty	5 Years
Includes	WiFi VisionPRO® 8000 thermostat, Screws and anchors, Literature
WiFi	Yes
WiFi Specifications	802.11b, 802.11g, 802.11n, 2.4GHz range
Z-Wave	No
Z-Wave Specifications	Not Applicable
RedLINK	No
Color	Arctic White
Sensor Type	Thermistor
Ambient Operating Temperature (Max)	120 °F, 49 °C
Ambient Operating Temperature (Min)	32 °F, 0 °C
Backlight Options	Adjustable
Fan Function	On, Auto, Circulating
Clock Type	Year Clock
Demand Response	Yes
Power Supply Frequency	50 Hz, 60 Hz
Mounting Location	Wall
Switch Type	Relay
Product Height	4.63 in, 118 mm
Product Width	4.94 in, 126 mm
Product Depth	1.13 in, 29 mm
Features	ENERGY STAR Certified, Backlit Display , Humidity Sensor, Indoor Air Quality Control, Touchscreen Display, Utility Rewards, Adaptive Intelligent Recovery, WiFi
