Description
T6 thermostat for up to 3H/2C heat pump or 2H/2C conventional systems, with ventilation.
Features
- Dual fuel and aux heat lockout

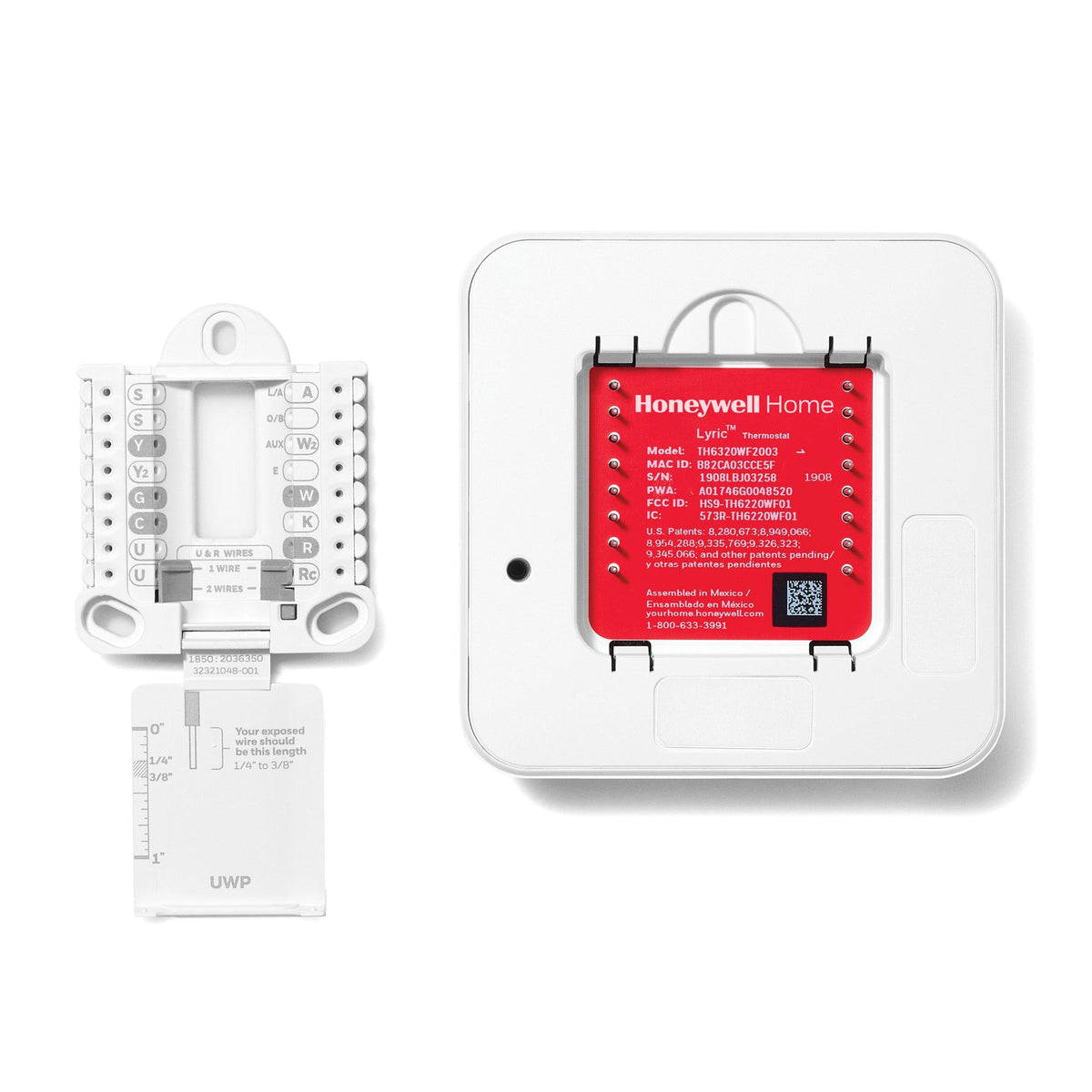

- Uses the UWP wall plate that’s standard across all T Series thermostats
- Setup and scheduling can be done at the wall on the thermostat or using our app, 5-year warranty
- Optional wired indoor/outdoor sensors
- ENERGY STAR® Certified
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH6320WF2003/U
- Application: 24 Vac systems; Gas, Oil, Electric Warm Air, Hot water Coil; Gas, Oil, Electric Hydronic, Steam / Gravity Systems, Dual Fuel
- Thermostat Type: Programmable, Digital, Low Voltage, WiFi
- Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
- Smart Home Integration: Yes

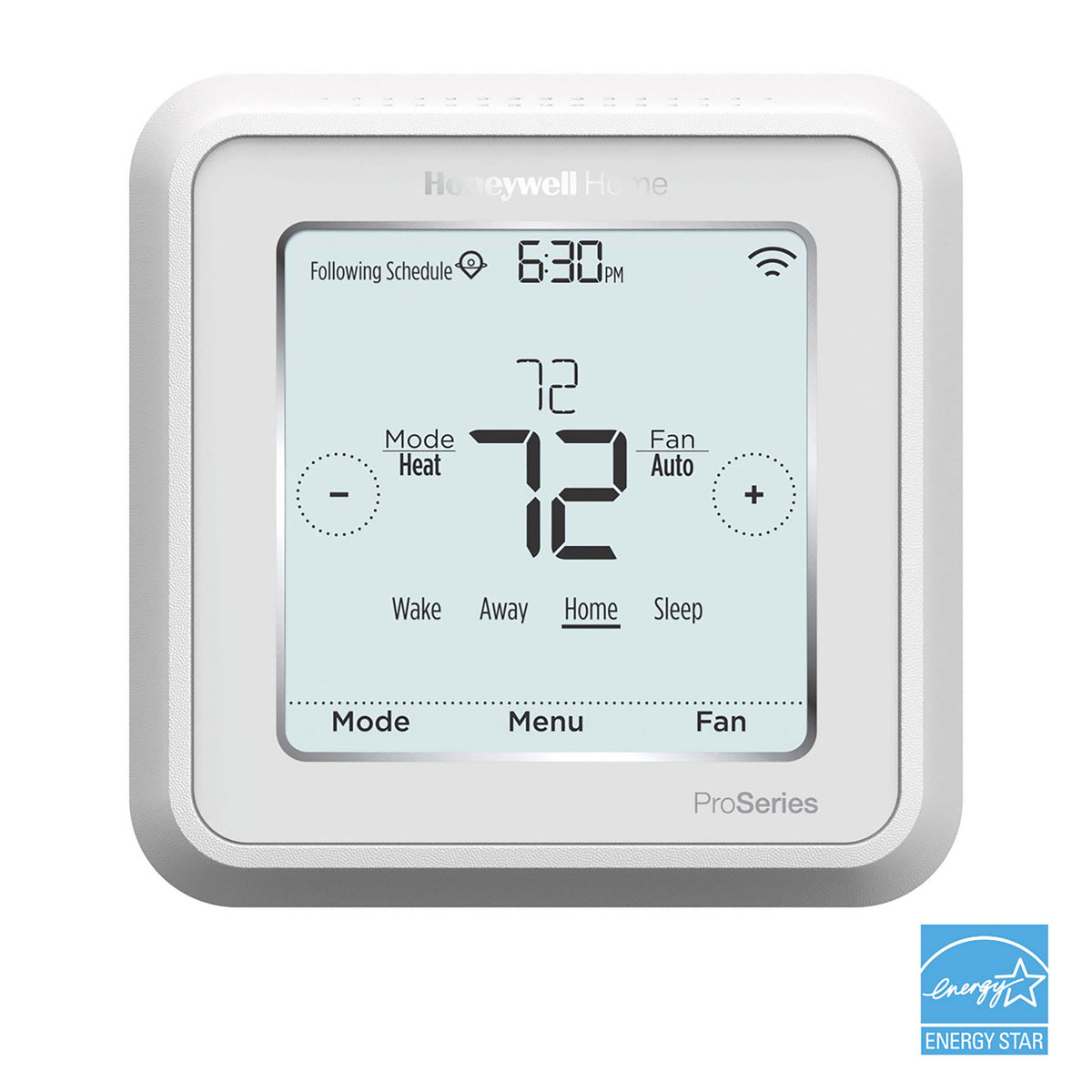

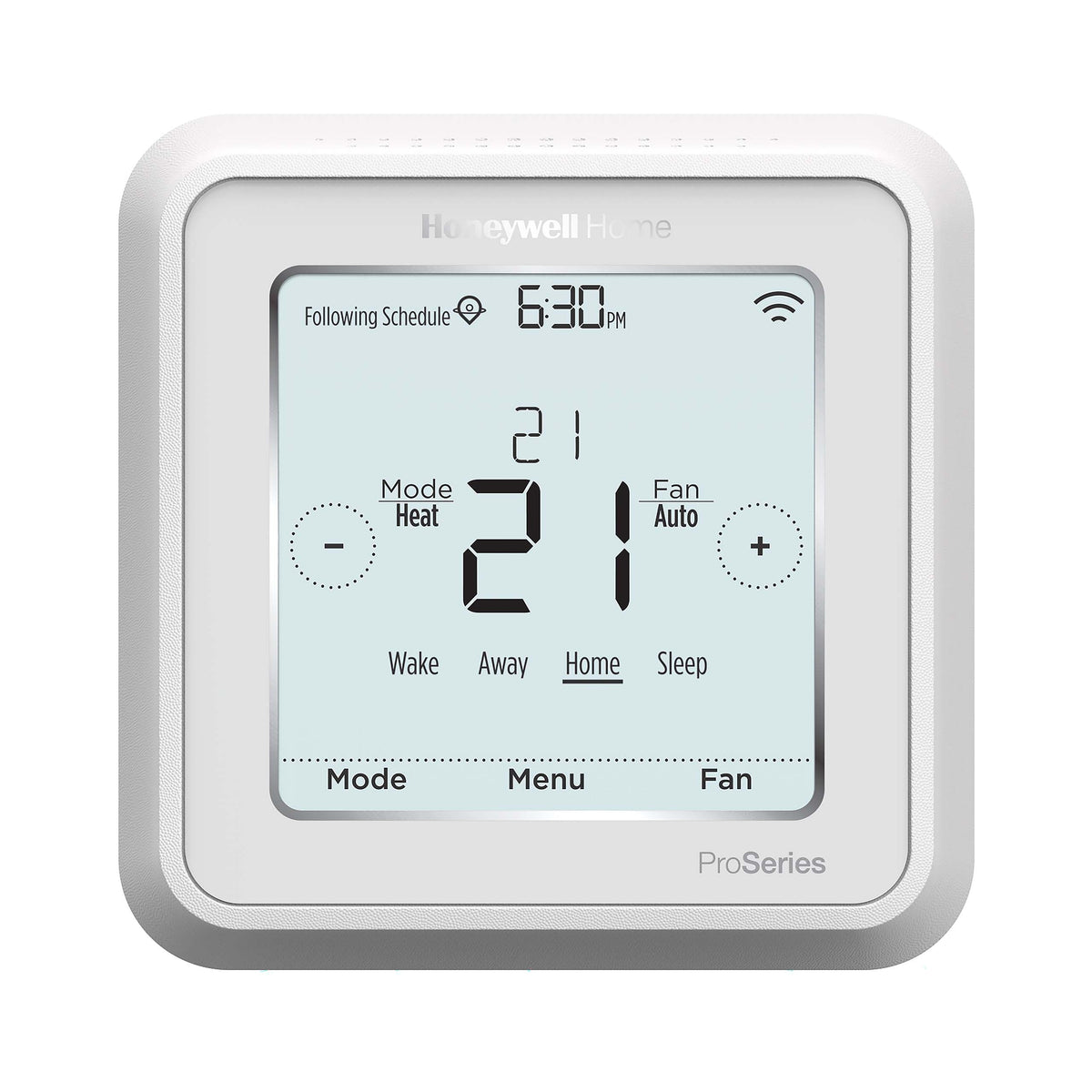

- Display Type: Touch Screen
- Display Size: 6.89 sq in
- Touchscreen: Yes
- Display Time Format: 24 Hour, 12 Hour (AM/PM)
- Displayed Information: Time, Mode, Indoor Temperature, Up Button, Down Button, Fan, Connected symbol, Backlit, WiFi Status
- Modes of Operation: Heat, Cool, Emergency Heat, Off, Auto
- Programming Features: Geofencing
- Program Type: Manual / Not Programmed, 5-2 Programmable, 5-1-1 Programmable, 7-Day Programmable
- Energy Star Certified: Yes
- Alerts and Reminders: Heat Pump Failure, Filter Change 1, Filter Change 2, Humidifier Pad (through app), Humidifier Clean Tank, UV Bulb 1, UV Bulb 2, Vent Core, Vent Filter, High Indoor Temperature, Low Indoor Temperature
- Power Supply: Hardwired
- Warranty: 5 Years
- Includes: T6 Pro Smart Thermostat, UWP Wall Plate, Decorative Cover Plate, Screws and anchors, Thermostat Literature
- For Use With: Outdoor Sensor C7089U1006, Remote Indoor Sensor C7189U1005
- Communication Type: WiFi
- WiFi: Yes
- WiFi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 2.8 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Operating Relative Humidity (Max): 90% Non-condensing
- Operating Relative Humidity (Min): 5% Non-condensing
- Backlight Options: Adjustable
- Fan Function: Cycled, Continuous
- Clock Type: Year Clock
- Demand Response: Yes
- Running Current: 0.02 A to 1.0 A running
- Temperature Accuracy: ±0.5 °C, ±1 °F
- Electrical Connection Type: UWP Mounting System
- Interstage Differential Temperature: 1 to 1.5 °F
- Mounting Type: UWP Wall Plate
- Set point Temperature (Max): 90 °F Heat, 32 °C Heat, 99 °F Cool, 37 °C Cool
- Set point Temperature (Min): 40 °F Heat, 4.5 °C Heat, 50 °F Cool, 10 °C Cool
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: Wall
- Switch Type: SPDT Relay
- Compatible App: First Alert App, Resideo App
- Product Height: 4.06 in, 104 mm
- Product Width: 4.06 in, 104 mm
- Product Depth: 1.09 in, 28 mm
- Features: ENERGY STAR Certified, Geofencing, Touchscreen Display, Utility Rewards, Adaptive Intelligent Recovery, WiFi
- UPC: 085267706728
- Country of Origin: MX
- Category: Smart Thermostats
