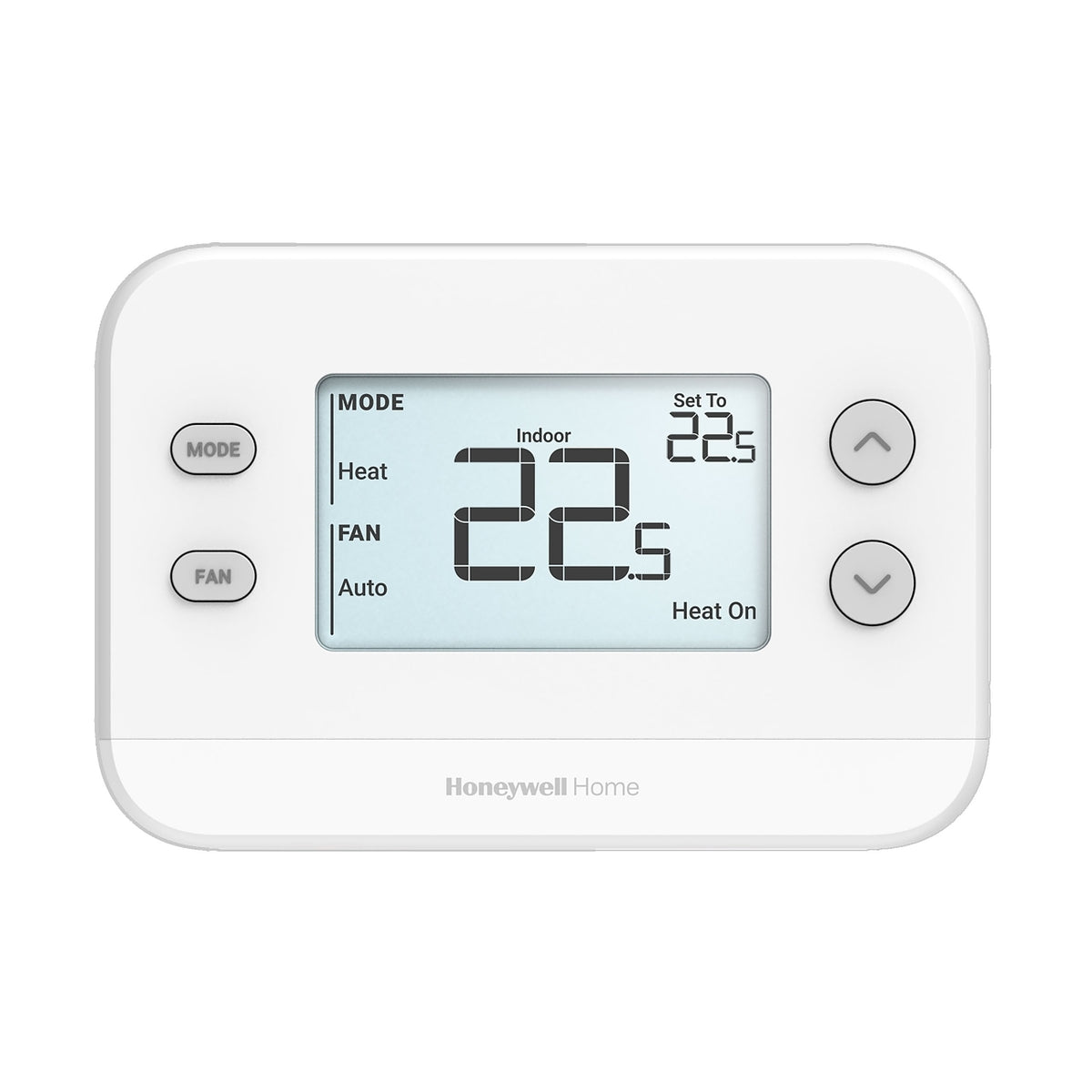

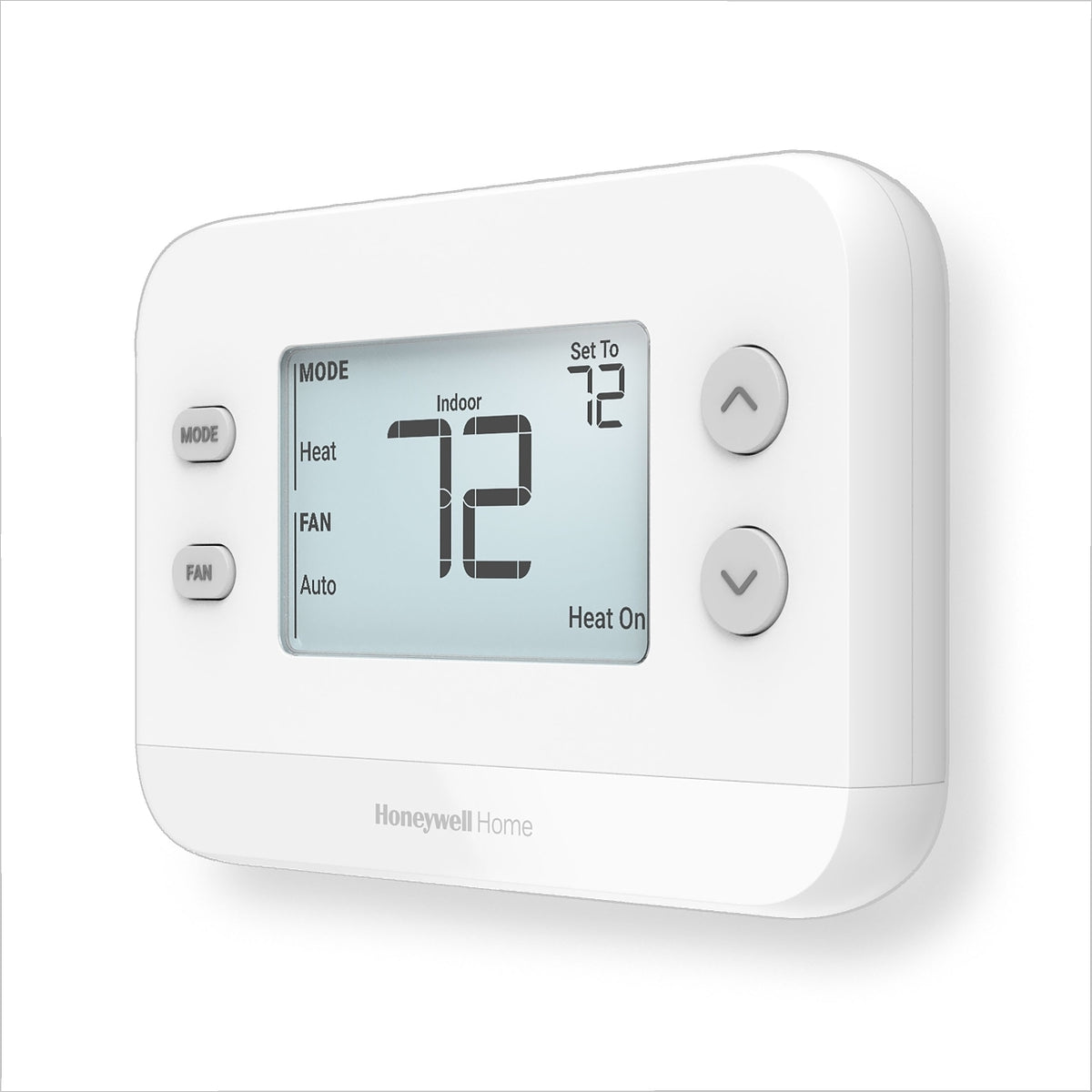

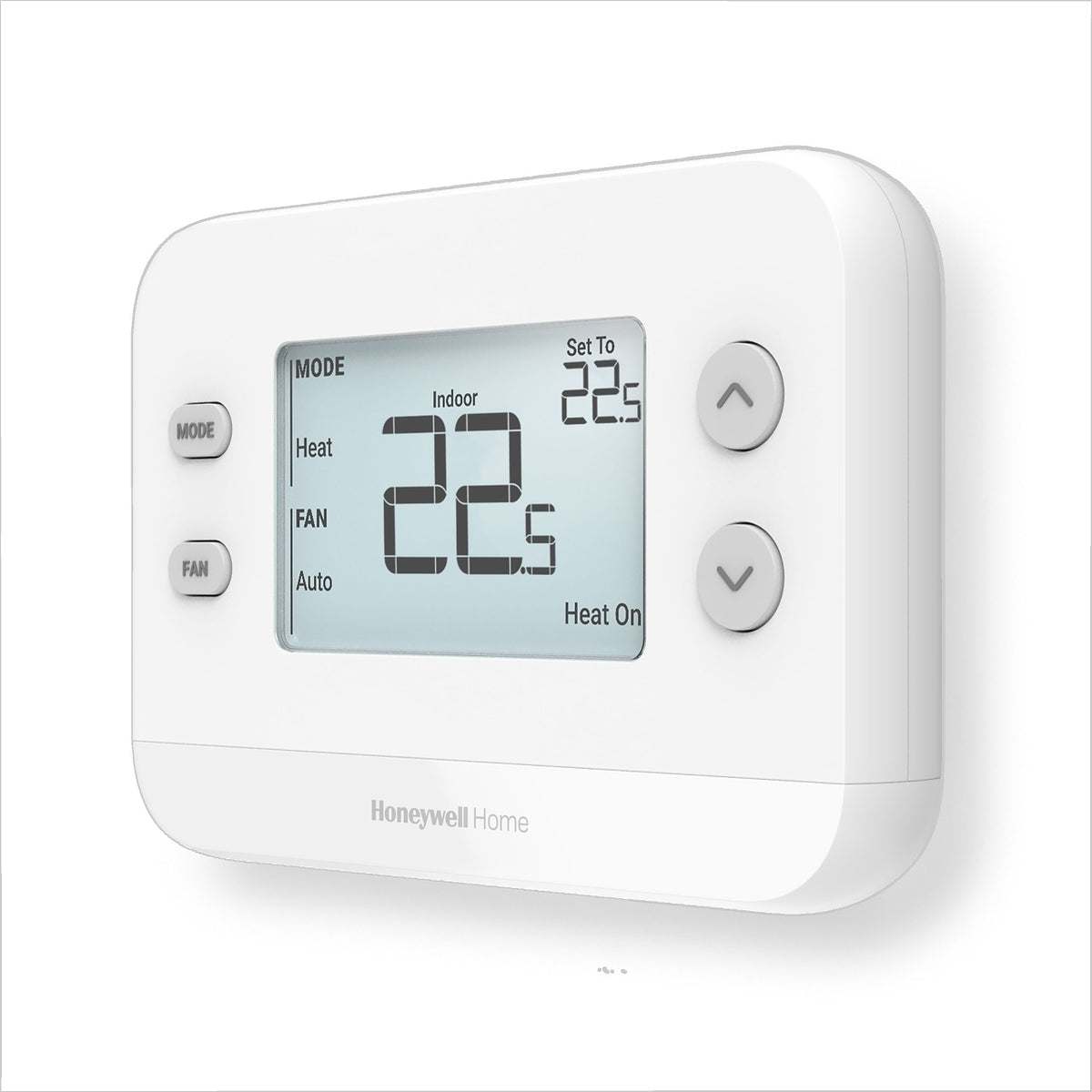

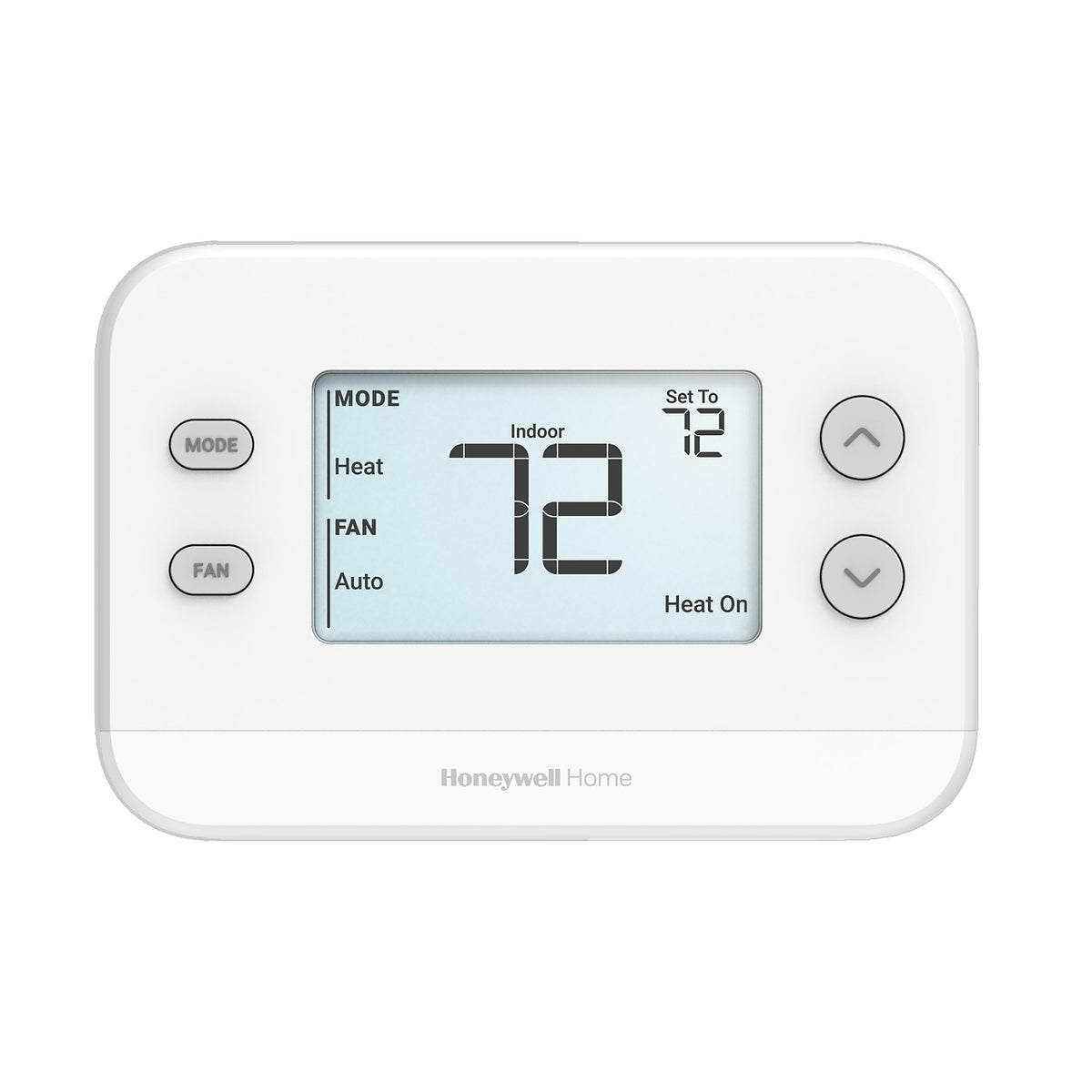

Honeywell Home TH1210U4001/U FocusPRO N100 Non-Programmable Thermostat, 2 Heat/1 Cool

FocusPRO N100 non-programmable thermostat for 2 heat/1 cool systems.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: TH1210U4001/U
• Application: 24 Vac systems, Up to 2H/1C heat pumps with aux heat (default), Up to 1H/1C conventional systems. Gas, Oil, Electric, Hot Water Radiant or Steam Systems, Dual fuel, 750 Millivolt
• Thermostat Type: Non programmable, Digital
• Stages: Up to 2H/1C heat pumps with aux heat (default), Up to 1H/1C conventional systems.
• Display Type: LCD Screen
• Display Size: 4.09 sq. in.
• Display Language: English
• Displayed Information: Mode, Current Temperature, Set Temperature, Status Display, Fan
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Program Type: Manual / Not Programmed
• Alerts and Reminders: Battery Replacement, Heat Pump Failure, Filter Change
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Battery, Hardwired
• Battery Type: AA Alkaline
• Power Source: Hardwired, Battery Operated
• Frequency: 60 Hz
• Number of Batteries: 2
• Warranty: 5 years
• Includes: Thermostat, UWP wall plate, Decorative cover plate with J-box adaptor, Mounting hardware, AA batteries, Literature
• For Use With: C7089U1006 wired outdoor sensor
• Color: White
• Ambient Operating Temperature (Max): 120 °F, 49 °C
• Ambient Operating Temperature (Min): 32 °F, 0 °C
• Differential Temperature: ± 1 °F, ± 0.5 °C
• Operating Relative Humidity (Max): 90% RH, non-condensing
• Operating Relative Humidity (Min): 5% RH, non-condensing
• Temperature Accuracy: 1 °F, 0.5 °C
• Mounting Type: UWP Wall Plate
• Set point Temperature (Max): Heat: 90 °F, Cool: 99 °F, Heat: 32 °C, Cool: 37 °C
• Set point Temperature (Min): Heat: 32 °F, Cool: 50 °F, Heat: 0 °C, Cool: 10 °C
• Shipping and Storage Temperature (Max): 120 °F, 49 °C
• Shipping and Storage Temperature (Min): -20 °F, -29 °C
• Switch Type: Relay
• Product Height: 3.44 in, 87 mm
• Product Width: 5.13 in, 130 mm
• Product Depth: 1.188 in, 29.5 mm
• Features: Backlit Display, Filter Change Reminder
• UPC: 194159018570
• Country of Origin: MX
• Category: Non-Programmable Thermostats

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
