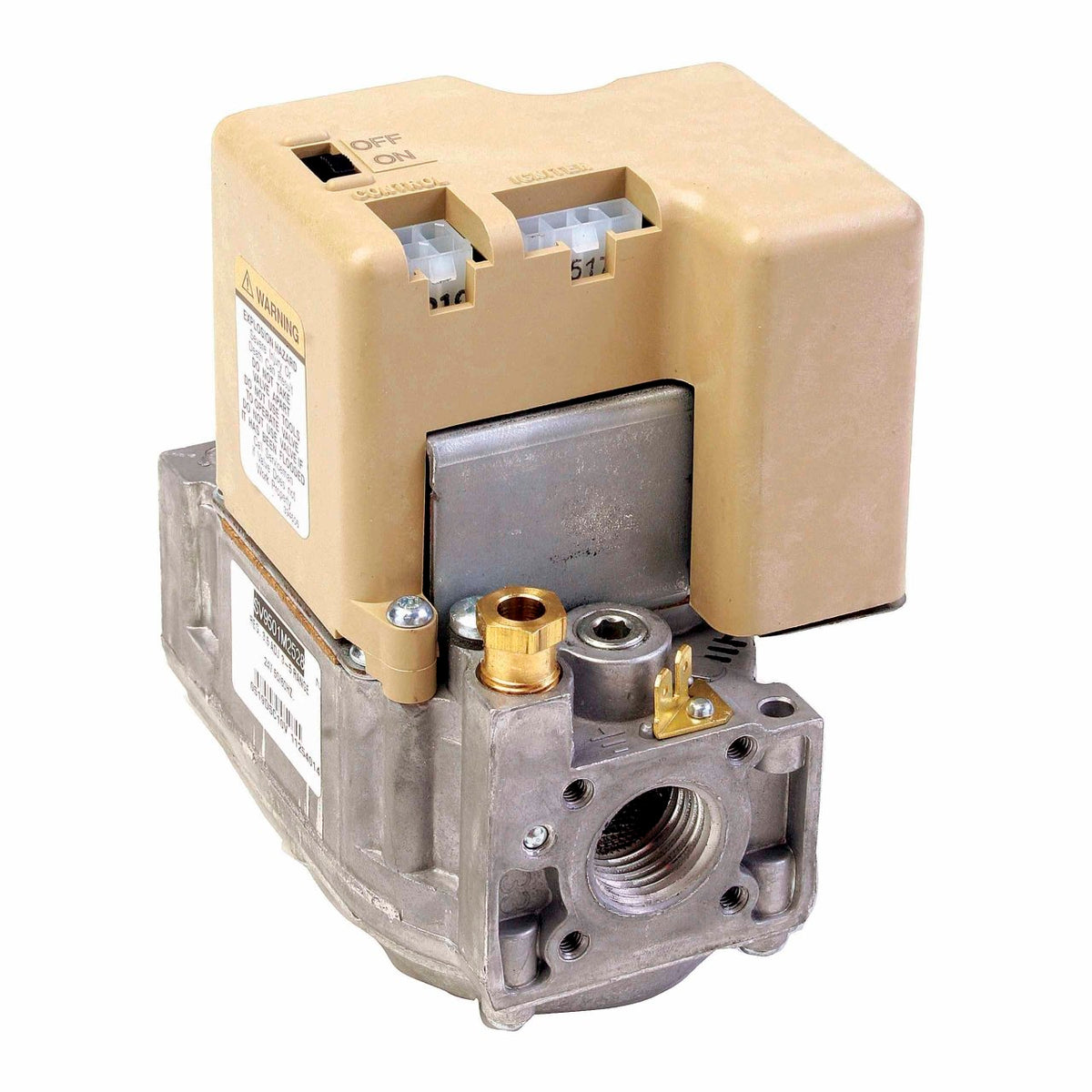

Resideo SV9502H2522/U SmartValve Intermittent Pilot Gas Valve, Slow Opening, 1/2 in x 1/2 in, 3.2 in WC

Intermittent pilot gas valve with slow opening, 1/2 in x 1/2 in connections, 3.2 in WC setting, continuous retry and 15 second prepurge.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: SV9502H2522/U
• Application: Single-Stage Slow Opening Valve with Intermittent Hot Surface Pilot Ignition
• Ignition Type: Intermittent Hot Surface Pilot Ignition
• Type of Fuel: Natural Gas
• Regulation Type: Slow Opening
• Capacity (Max): 200 ft³/hr, 5.7 m³/hr
• Capacity (Min): 20 ft³/hr, 0.6 m³/hr
• Operating Voltage: 24 V AC
• Inlet Connection Size: 1/2 in
• Inlet Connection Type: NPT
• Outlet Connection Size: 1/2 in
• Outlet Connection Type: NPT
• Pressure Regulator Set point: 3.2 in WC, 0.80 kPa
• Pressure Tap Connection Size: 1/8 in
• Pressure Tap Connection Type: NPT
• Typical Ignition Hardware: Q3450, Q3480
• Ignition Trials To Lockout: Continuous Retry
• Pre-Purge: 15 seconds
• Universal: Yes
• For Use With: Q3450 and Q3480 Intermittent Pilot Burners
• Includes: Natural to LP Conversion Kit, Extension harness
• Compatible With: Intermittent Pilot Burners, Gas-fired Systems
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): 0 °F, -18 °C
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Operating Frequency: 50 Hz, 60 Hz
• Pilot Gas Outlet: Yes
• Product Height: 4.9 in
• Product Length: 4.1 in
• Product Width: 3.2 in
• UPC: 085267791120
• Country of Origin: MX
• Category: Gas Valves
