Description

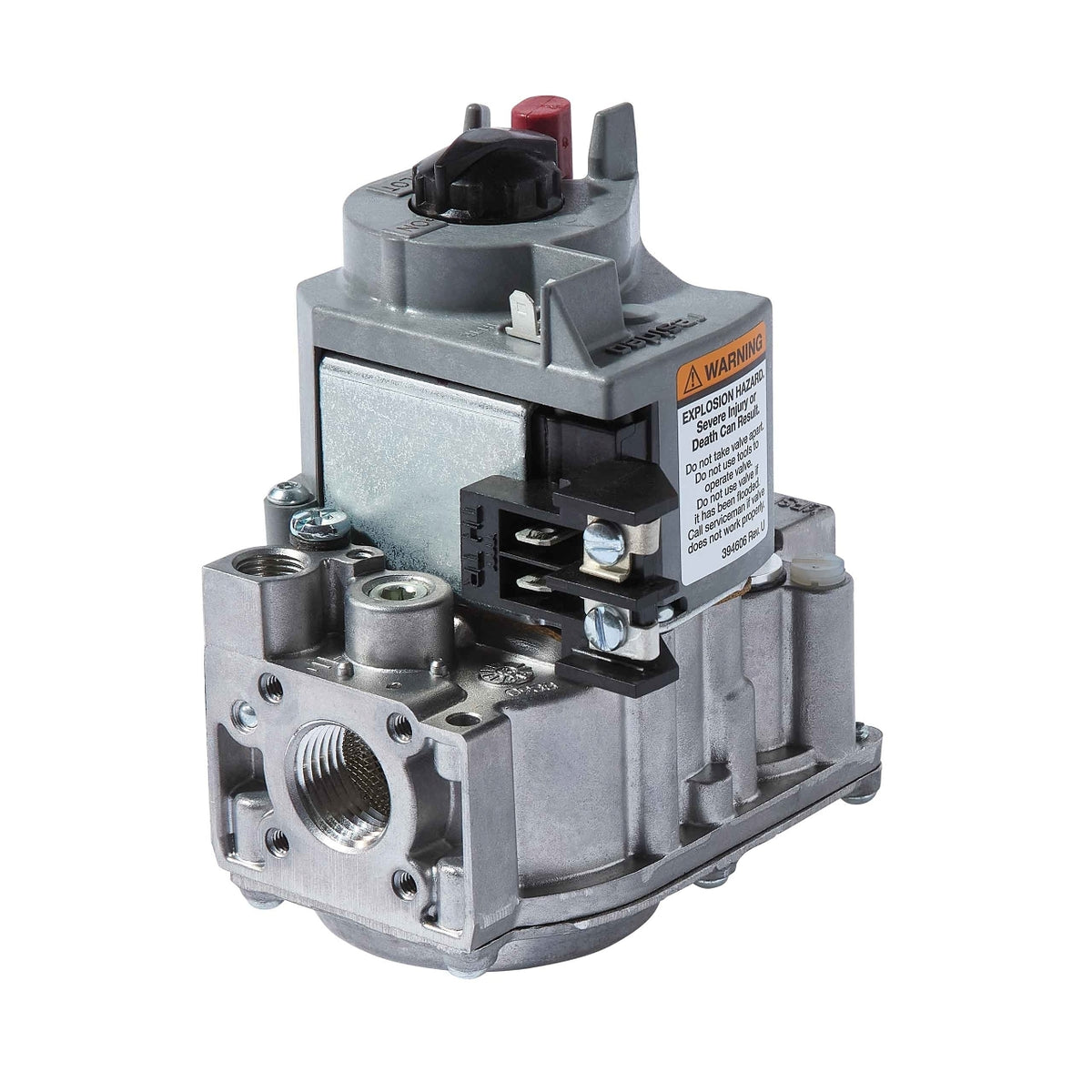

Standing pilot gas valve with standard opening, 1/2 x 1/2 connections and regulator set at 3.5 in WC; includes conversion kit, bushing, flange and Q340 thermocouple.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8200A2124/U
- Application: Single-Stage Standard Opening Valve for Standard Pilot
- Ignition Type: Standing Pilot
- Type of Fuel: Natural Gas
- Regulator: Standard
- Capacity (Max): 200,000 BTU/h Natural Gas
- Capacity (Min): 20,000 BTU/h Natural Gas
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Standard Opening
- Pressure Rating: 1/2 psi
- Includes: One 3/4 in straight flange, One 1/2 in x 3/8 in reducer bushings, Q340 Thermocouple, Natural to LP conversion kit
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): 0 °F, -18 °C
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Product Height: 5.19 in
- Product Length: 3.25 in
- Product Width: 4.13 in
- UPC: 085267112048
- Country of Origin: MX
- Category: Gas Valves
