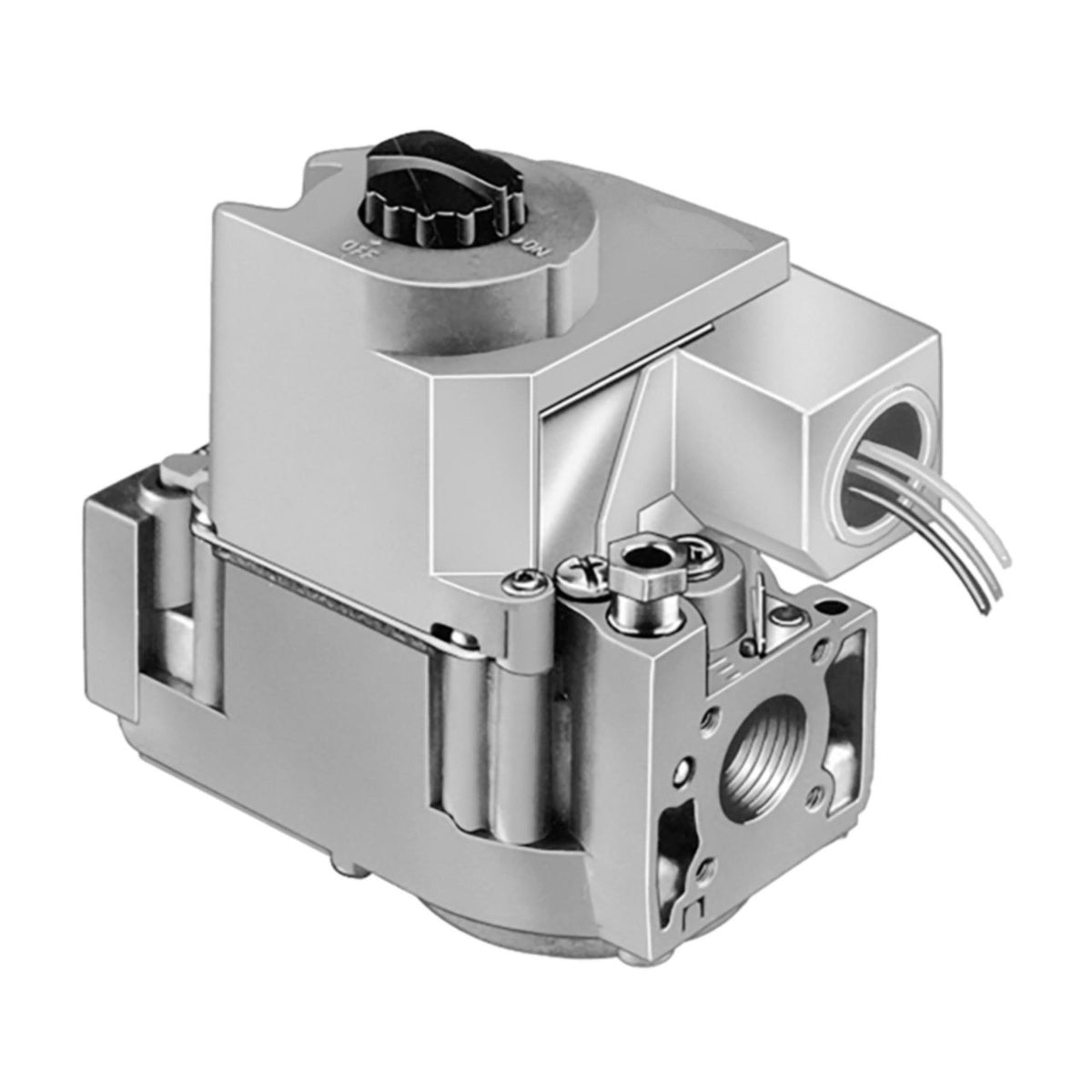

Resideo VR4304M4519/U Line Voltage Intermittent Pilot Gas Valve, 3/4 in x 3/4 in, Standard Opening

Line voltage intermittent pilot gas valve with standard opening, 3/4 x 3/4 connections, 3.5 in WC setpoint and 21 in leadwires; includes reducer bushings and conversion kit.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: VR4304M4519/U
• Application: Single-Stage Standard Opening Valve for Intermittent Pilot
• Ignition Type: Intermittent Pilot
• Type of Fuel: Natural Gas, LP with included conversion kit
• Regulator: Standard
• Capacity (Max): 415,000 BTU/h
• Capacity (Min): 30,000 BTU/h
• Operating Voltage: 120 V AC
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Regulation Type: Standard Opening
• Pressure Rating: 3.5 kPa, 1/2 psi
• Operating Pressure (Max): 1/2 psi
• For Use With: S86F Control Modules, S86H Control Modules, S860D Control Modules, S8600F Control Modules, S8600H Control Modules, S8610 Control Modules, S90A Control Modules, S90B Control Modules
• Includes: Two 3/4 x 1/2 in Reducer Bushings, Natural to LP Gas Conversion Kit, One 1/2 in x 3/8 in Reducer Bushing
• Valve Body Pattern: Straight Through
• Ambient Operating Temperature (Max): 175 °F, 79 °C
• Ambient Operating Temperature (Min): -40 °F, -40 °C
• Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, AGA Design Certified: File No. L2025006, CGA Design Certified: File No. L2025006, Australian Gas Assoc. Design Certificate: 4717
• Color: Black, Gray
• Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
• Operating Frequency: 60 Hz
• Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
• Product Height: 5.38 in, 135 mm
• Product Length: 104 mm
• Product Width: 4.06 in, 104 mm
• UPC: 085267111867
• Country of Origin: MX
• Category: Gas Valves
