Description

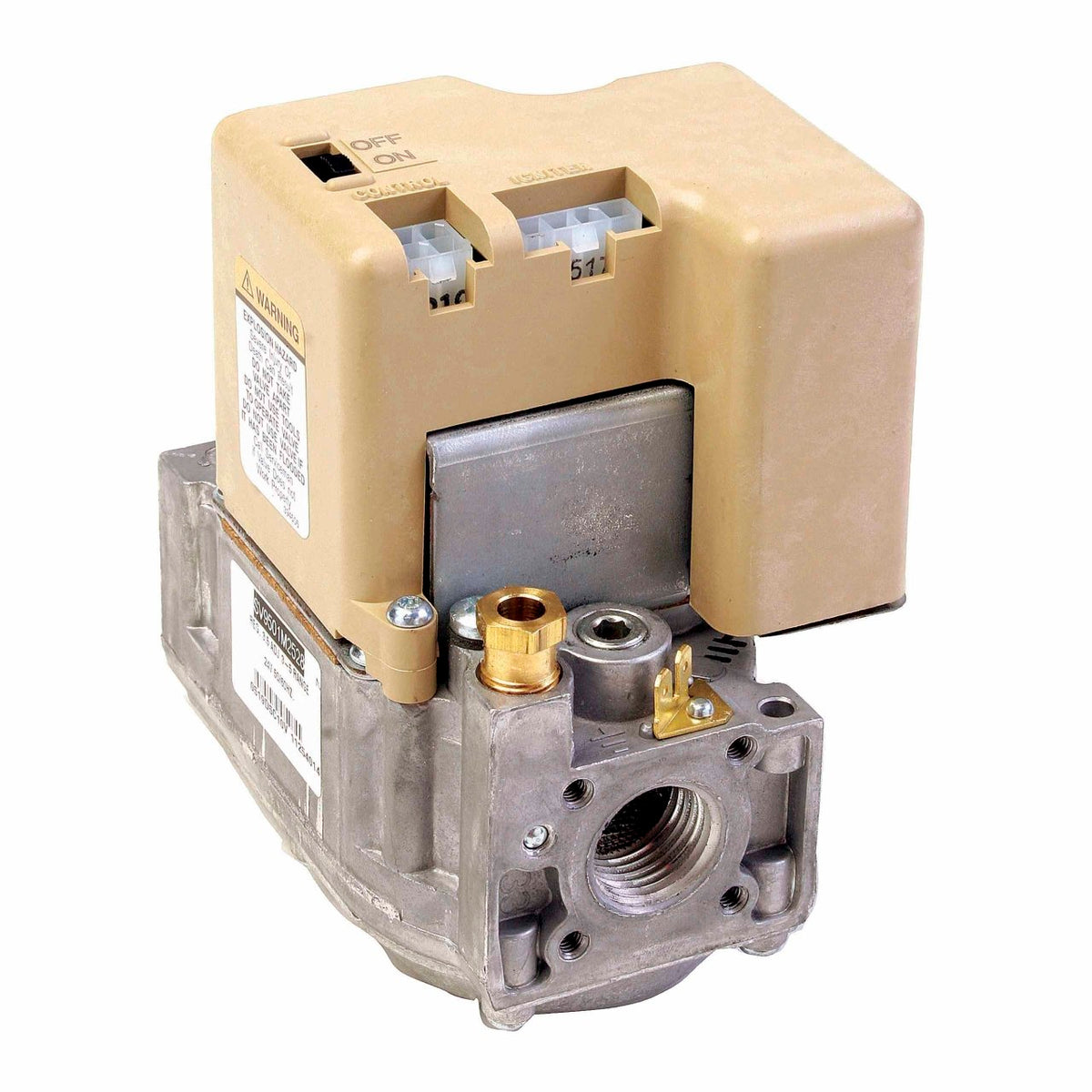

Intermittent pilot gas valve with step opening, 3/4 in x 3/4 in connections, 10.0 in WC full rate and 2.5 in step settings, continuous retry and 30 second prepurge.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: SV9602P4832/U
- Application: Single-Stage Step Opening Valve with Intermittent Hot Surface Pilot Ignition
- Ignition Type: Intermittent Hot Surface Pilot Ignition
- Type of Fuel: LPG
- Regulation Type: Step Opening
- Capacity (Max): 415 ft³/hr, 11.8 m3/hr
- Capacity (Min): 30 ft³/hr, 0.8 m3/hr
- Operating Voltage: 24 V AC
- Inlet Connection Size: 3/4 in
- Inlet Connection Type: NPT
- Outlet Connection Size: 3/4 in
- Outlet Connection Type: NPT
- Pressure Regulator Set point: Full Rate: 10.0 in WC; Step Setting: 2.5 in WC, Full Rate: 2.49 kPa; Step Setting: 0.62 kPa
- Pressure Tap Connection Size: 1/8 in
- Pressure Tap Connection Type: NPT
- Ignition Trials To Lockout: Continuous Retry
- Includes: Two 3/4 in to 1/2 in Reducer Bushings, Extension Harness
- Compatible With: This system is suitable for application in a wide range of gas-fired appliances
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Approvals and Standards: CSA International: 112395, AGA IAS Certified: C2030017, CGA IAS Certified: C2030017, UL Approved: 98PSC00009
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 50 Hz, 60 Hz
- Product Height: 4.9 in, 124 mm
- Product Length: 4.1 in, 104 mm
- Product Width: 3.2 in, 81 mm
- UPC: 085267795081
- Country of Origin: MX
- Category: Gas Valves
