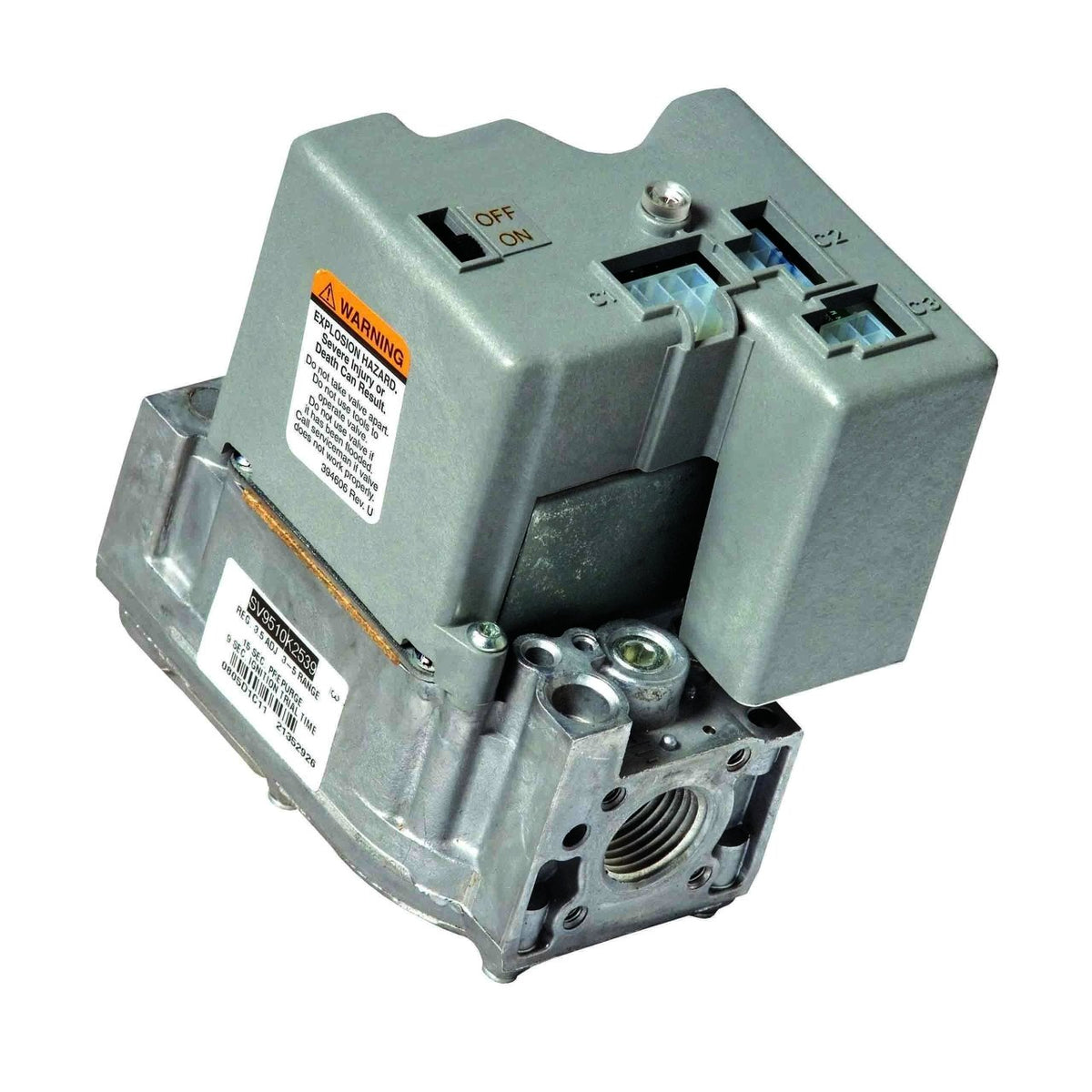

Resideo SV9510M2511/U SmartValve Direct Ignition Gas Valve, Standard Opening, 1/2 in x 1/2 in, 3.5 in WC

Item #: HONE-SV9510M2511/U
Mfr. part #: SV9510M2511/U
UPC: 085267297691

$434.69

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.1 lb
Box size: 6.55 × 5.5 × 3.6 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	SV9510M2511/U
UPC	085267297691

Direct ignition SmartValve with standard opening, 1/2 in x 1/2 in connections, 3.5 in WC setting, 15 second prepurge and 7 second ignition trial, supplied with a conversion kit.

Specifications

Brand: Resideo (Honeywell Home)
Manufacturer Part #: SV9510M2511/U
Application: Single-Stage Standard Opening Valve with Direct Hot Surface Pilot Ignition
Ignition Type: Direct Hot Surface Ignition
Type of Fuel: LP with included conversion kit, Natural Gas
Regulation Type: Standard Opening
Capacity (Max): 200 ft³/hr, 5.7 m³/hr
Capacity (Min): 20 ft³/hr, 0.6 m³/hr
Operating Voltage: 24 V AC
Inlet Connection Size: 1/2 in
Inlet Connection Type: NPT
Outlet Connection Size: 1/2 in
Outlet Connection Type: NPT
Pressure Regulator Set point: 3.5 in WC, 0.87 kPa
Pressure Tap Connection Size: 1/8 in
Pressure Tap Connection Type: NPT
Ignition Trials To Lockout: 4 Trials
Pre-Purge: 15 seconds
Includes: LP Conversion Kit
Valve Body Pattern: Straight Through
Ambient Operating Temperature (Max): 175 °F, 79 °C
Ambient Operating Temperature (Min): -40 °F, -40 °C
Approvals and Standards: CAS International: 158158-10592145
Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency: 50 Hz, 60 Hz
Product Height: 4.9 in, 124 mm
Product Length: 4.1 in, 104 mm
Product Width: 3.2 in, 81 mm
UPC: 085267297691
Country of Origin: MX
Category: Gas Valves
