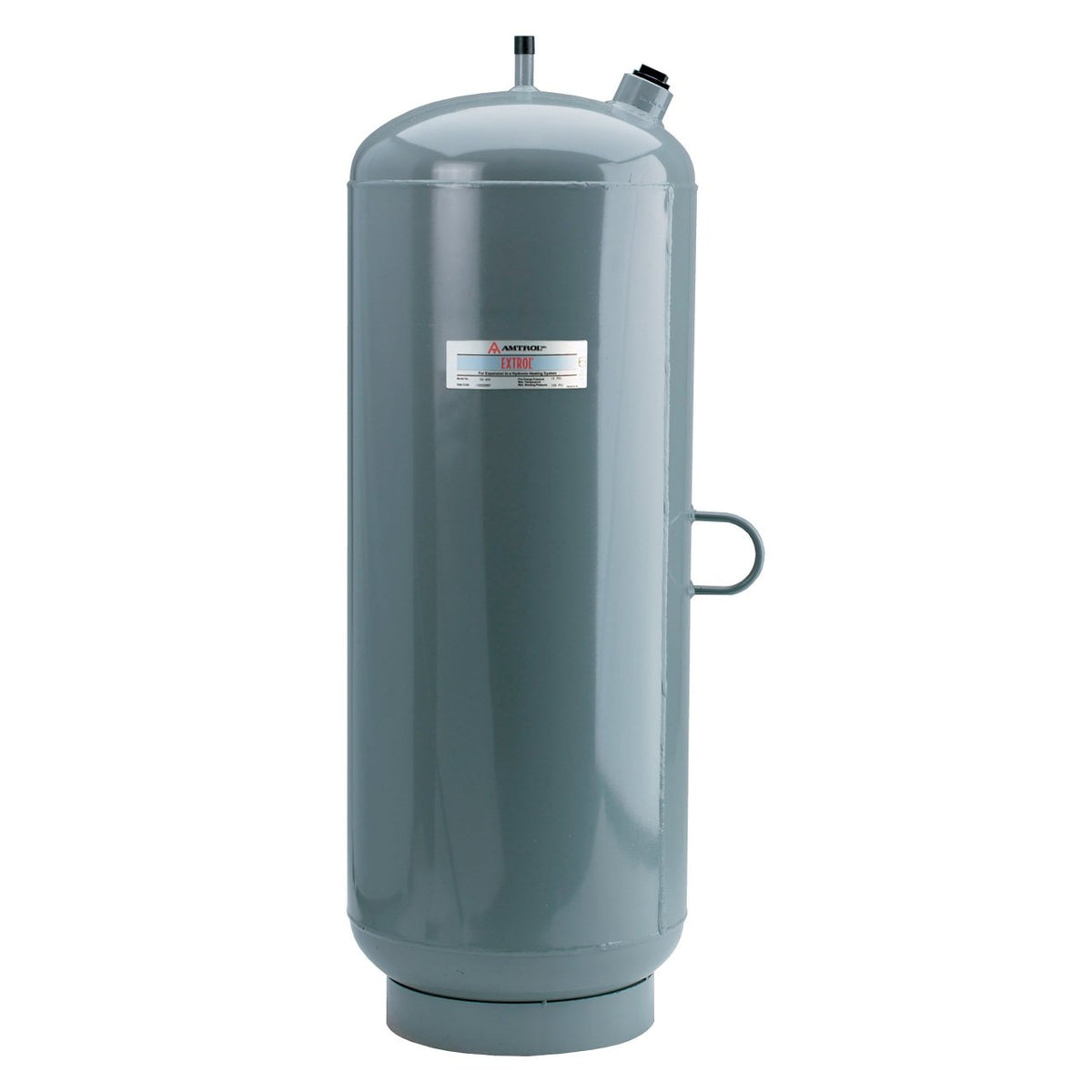

Resideo TAXV-100/U TAXV Vertical Expansion Tank, ASME, 125 psig
Resideo

Resideo TAXV-100/U TAXV Vertical Expansion Tank, ASME, 125 psig

Item #
HONE-TAXV-100/U
Mfr. part #
TAXV-100/U
UPC
085267829274
Key specifications
  • Connection size1/2 in
  • ConnectionNPT
  • ColorRed
  • Operating Temperat240 °F, 115 °C
  • Connector TypeMale
View all specifications
$3,156.36
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

Pricing a job? Get a written quote →Open a trade account

  • Ships by freight truck (LTL), contiguous U.S. only
  • 30-day returns on unused items. Details
  • Secure checkout
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #TAXV-100/U
ApplicationHydronic Volume Expansion
Approvals and StandardsASME Construction
Compatible WithClosed Heating Systems
Operating Temperature (Max)240 °F, 115 °C
Tank Safe Operating Pressure (Max)125 psi|862 kPa
Connection Size1/2 in
Connection TypeNPT
Connector TypeMale
Warranty1 Year
ColorRed
Body MaterialSteel
Diaphragm MaterialButyl/EPDM Compound
Maximum Acceptance Volume22.6 gal|85.6 L
Product Height68.25 in, 1734 mm
Product Weight231 lb, 105 kg
Pre-Charge Pressure12 psi, 83 kPa
UPC085267829274

TAXV vertical expansion tank, ASME, rated 125 psig.

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: TAXV-100/U
  • Application: Hydronic Volume Expansion
  • Approvals and Standards: ASME Construction
  • Compatible With: Closed Heating Systems
  • Operating Temperature (Max): 240 °F, 115 °C
  • Tank Safe Operating Pressure (Max): 125 psi, 862 kPa
  • Connection Size: 1/2 in
  • Connection Type: NPT
  • Connector Type: Male
  • Warranty: 1 Year
  • Color: Red
  • Body Material: Steel
  • Diaphragm Material: Butyl/EPDM Compound
  • Maximum Acceptance Volume: 22.6 gal, 85.6 L
  • Product Height: 68.25 in, 1734 mm
  • Product Weight: 231 lb, 105 kg
  • Pre-Charge Pressure: 12 psi, 83 kPa
  • UPC: 085267829274
  • Country of Origin: US
  • Category: System Fill Tanks & Autofills
