Standard Opening SmartValve, Intermittent Hot Surface Pilot Ignition, Natural/LP with included conversion kit, 3/4 in NPT x 3/4 in NPT

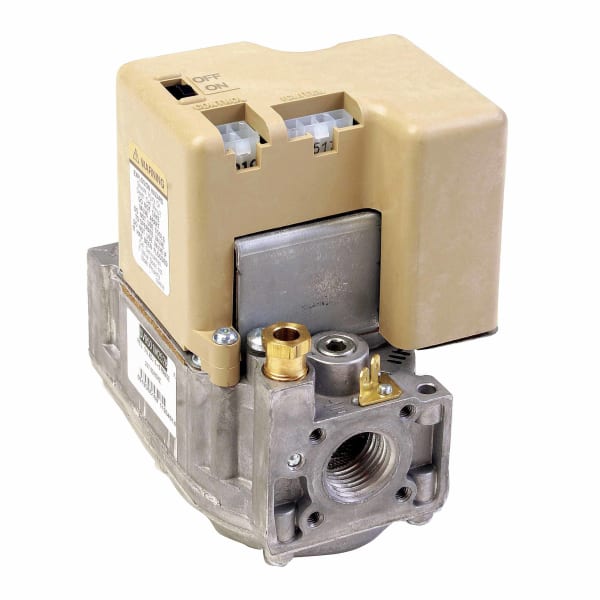

Resideo SV9601M4571/U Standard Opening SmartValve, Intermittent Hot Surface Pilot, Natural/LP, Conversion Kit Included, 3/4 in NPT x 3/4 in NPT

Item #: HONE-SV9601M4571/U
Mfr. part #: SV9601M4571/U
UPC: 085267297738

Key specifications

Pressure Rating1/2 psi
Inlet/Outlet Size3/4 in. NPT x 3/4 in. NPT.
Body PatternStraight-through
Opening CharacteriStandard
Frequency50 Hz; 60 Hz

View all specifications

$482.97

Free shipping on orders $99+
30-day returns on unused items. Details
Secure checkout

Shipping details

Shipping weight: 2.0 lb
Box size: 6.6 × 5.5 × 3.6 in

Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.

Need help with this part?

(404) 678-9908 Chat with a product specialist Request a quote

Brand	Resideo
Manufacturer part #	SV9601M4571/U
Inlet/Outlet Size	3/4 in. NPT x 3/4 in. NPT.
Body Pattern	Straight-through
Opening Characteristics	Standard
Frequency	50 Hz; 60 Hz
Electrical Ratings	24 Vac
Pressure Rating	1/2 psi
Pressure Tapping	1/8 in. - NPT
Ambient Temperature	-40 F to +175 F
Mounting	0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Includes	Two 3/4 x 1/2 in. reducer bushings; Natural to LP Conversion Kit
Dimensions	3.2 in. wide x 4.9 in. high x 4.1 in.long
CSA	CSA International: 112395
Flame Failure Response Time (sec)	1.6 sec @ 3 µA
PrePurge	None
Ignition System Type	Intermittent Hot Surface Pilot Ignition
Ignition Sequence	Intermittent Pilot
Type of Gas	Natural (LP with included conversion kit)
Flame Sense	HSI
Ignition Source	Pilot
Ignition Trials To Lockout	continuous retry
Ignition Trial Time (sec)	90 sec
Typical Ignition Hardware	Q3450; Q3480
Pressure Regulator Setting (psi)	3.5 in. WC
Pilot Gas Outlet	Yes
Capacity (ft³/hr)	Maximum at 1 in. P.D.--300 ft³/hr; Maximum--415 ft³/hr; Minimum--30 ft³/hr
Capacity (m³/hr)	Maximum at 1 in. P.D.--8.5 m³/hr; Maximum--11.8 m³/hr; Minimum--0.8 m³/hr
UPC	085267297738

The SV9601M4571 is a SmartValve system control from Resideo (Honeywell Home): gas valve and ignition module in one assembly, built for intermittent pilot appliances.

What makes a SmartValve different from a plain gas valve is that the ignition sequence lives inside it. A conventional system needs a separate ignition module wired to the valve; the SmartValve carries the timing, the trial-for-ignition and the flame proving itself, which removes a module, a harness and a set of connections from the appliance.

The valve is standard opening. Opening rate matters on ignition: too fast on a burner that was designed for a soft light-off gives a hard start, and too slow on one expecting full rate can drop out the flame proving before the burner is established.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.
