Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot Ignition, Natural Gas, 1/2 in NPT x 1/2 in NPT inlet/outlet size

Roll over image to zoom in Click on image to zoom

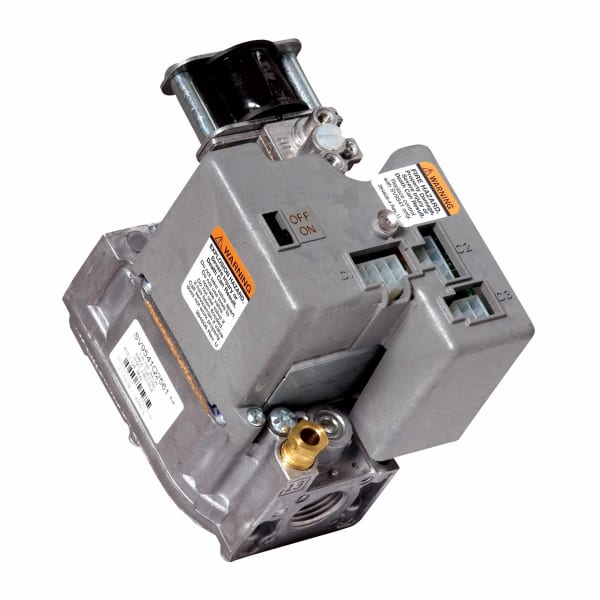

Resideo SV9541Q2561/U Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot, Natural Gas, 1/2 in NPT x 1/2 in NPT

Name: Resideo SV9541Q2561/U Standard 2-Stage Opening SmartValve, Intermittent Hot Surface Pilot, Natural Gas, 1/2 in NPT x 1/2 in NPT
Brand: Resideo
SKU: HONE-SV9541Q2561/U
Price: 437.06 USD
Availability: InStock

ResideoSKU: HONE-SV9541Q2561/U

Price:

$437.06

Stock:

Only 5 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 2.5 lb
Box size: 6.55 × 5.5 × 3.6 in

Inlet/Outlet Size	1/2 in. NPT x 1/2 in. NPT
Body Pattern	Straight-through
Opening Characteristics	Standard 2-stage
Frequency	60 Hz
Electrical Ratings	24 Vac
Pressure Rating	1/2 psi
Pressure Tapping	1/8 in. - NPT
Ambient Temperature	-40 F to +175 F
Mounting	0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Includes	Natural to LP Conversion Kit
Dimensions	3.2 in. wide x 4.9 in. high x 4.1 in.long
CSA	CSA International: 112395
Flame Failure Response Time (sec)	1.6 sec @ 3 µA
PrePurge	15 seconds
PostPurge	30 seconds
Ignition System Type	Intermittent Hot Surface Pilot Ignition
Ignition Sequence	Intermittent Pilot
Type of Gas	Natural
Flame Sense	HSI
Ignition Source	Pilot
Ignition Trials To Lockout	continuous retry
Ignition Trial Time (sec)	90 sec
Typical Ignition Hardware	Q3450; Q3480
Pressure Regulator Setting (psi)	1.7 in. WC low; 3.2 in. WC high
Pilot Gas Outlet	Yes
Capacity (ft³/hr)	Maximum at 1 in. P.D.--150 ft³/hr; Maximum--200 ft³/hr; Minimum--20 ft³/hr
Capacity (m³/hr)	Maximum at 1 in. P.D.--4.2 m³/hr; Maximum--5.7 m³/hr; Minimum--0.6 m³/hr

Installation Instructions PDF ↗

The SV9541Q2561 is a SmartValve system control from Resideo (Honeywell Home): gas valve and ignition module in one assembly, built for intermittent pilot appliances.

What makes a SmartValve different from a plain gas valve is that the ignition sequence lives inside it. A conventional system needs a separate ignition module wired to the valve; the SmartValve carries the timing, the trial-for-ignition and the flame proving itself, which removes a module, a harness and a set of connections from the appliance.

The valve is standard opening. Opening rate matters on ignition: too fast on a burner that was designed for a soft light-off gives a hard start, and too slow on one expecting full rate can drop out the flame proving before the burner is established.

Gas appliance safety. A gas valve must match the appliance it is fitted to — ignition system, capacity, inlet pressure and gas type. Replacement is work for a licensed gas technician, and the appliance manufacturer's parts list is what decides the correct valve, not the physical fit of the threads. If the replacement does not match, the appliance can fail to light, fail to prove flame, or overfire.

Brand: Resideo (Honeywell Home)
Manufacturer Part #: SV9541Q2561/U
Type: SmartValve system control
Ignition: Intermittent pilot
Opening rate: Standard opening
Staging: Two-stage
UPC: 085267297677
Category: Gas Valves

Full Specifications

Application	Two-Stage Standard Opening Valve with Intermittent Hot Surface Pilot Ignition
Ignition Type	Intermittent Hot Surface Pilot Ignition
Type of Fuel	Natural Gas
Regulation Type	Standard Opening
Capacity (Max)	150 ft³/hr, 4.2 m3/hr
Capacity (Min)	20 ft³/hr, 0.6 m³/hr
Operating Voltage	24 V AC
Inlet Connection Size	1/2 in
Inlet Connection Type	NPT
Outlet Connection Size	1/2 in
Outlet Connection Type	NPT
Pressure Regulator Set point	High: 3.2 in WC; Low: 1.7in WC, High: 0.80 kPa; Low: 0.42 kPa
Pressure Tap Connection Size	1/8 in
Pressure Tap Connection Type	NPT
Ignition Trials To Lockout	Continuous Retry
Flame Failure Response Time	1.6 seconds maximum at 2 μA
Valve Body Pattern	Straight Through
Ambient Operating Temperature (Max)	175 °F, 79 °C
Ambient Operating Temperature (Min)	-40 °F, -40 °C
Approvals and Standards	CSA International: 112395
Mounting Type	0° to 90° in any direction from the upright position of the gas control knob, including vertically
Operating Frequency	60 Hz
Product Height	4.9 in, 124 mm
Product Length	4.1 in, 104 mm
Product Width	3.2 in, 81 mm
