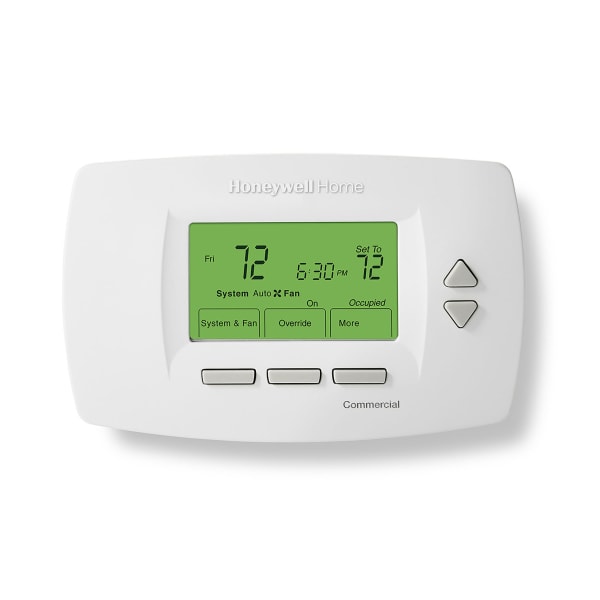

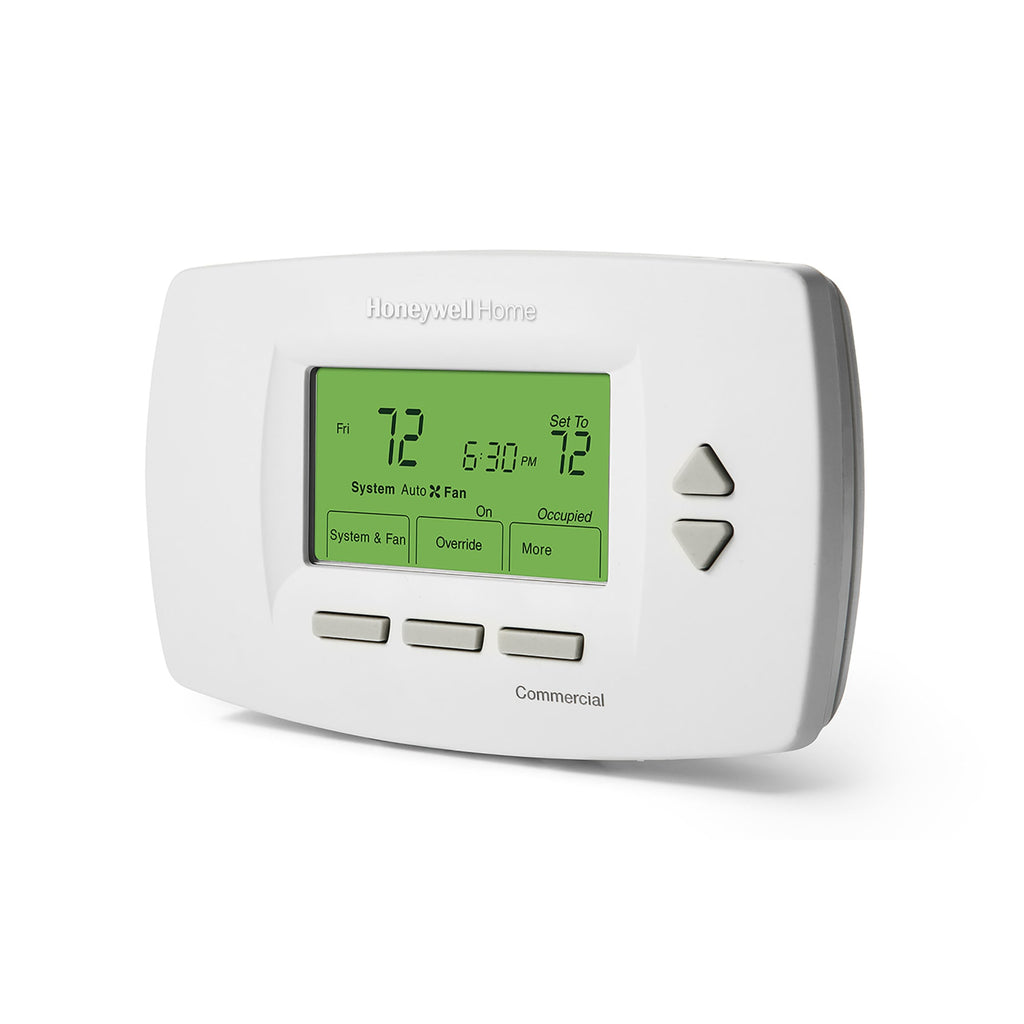

Name: Honeywell Home TB7220U1012/U CommercialPRO 7000 Programmable Thermostat
Brand: Honeywell Home
SKU: HONE-TB7220U1012/U
Price: 308.86 USD
Availability: InStock

Resideo CommercialPRO 7000 Programmable Thermostat

Roll over image to zoom in Click on image to zoom

Application	Packaged RTU; Conventional systems; Heat Pump Systems; 24 Vac heating and cooling systems
Dimensions	6 in. wide x 3 3/4 in. high x 1 3/8 in. deep
Hazmat Information	LI metal Button Cell contained in Equipment No Label is required
Stages	Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional
Switch Positions (System)	HEAT-OFF-COOL-AUTO-EM.HEAT
Switch Positions (Fan)	AUTO-ON
Network Communications	None
Power Method	24 Vac or Battery
Color	Premier White®
Terminal Designations	R, Rc, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2
Setting Temperature Range (F)	Heat: 40 F to 90 F; Cool: 50 F to 99 F

TB7220U1012 has been discontinued by the manufacturer (2016-02). Suggested replacement: TH8321R1001 - VisionPRO 8000 w/ RedLINK & IAQ Contacts, Programmable, 3H/2C, Touchscreen Thermostat.

The TB7220U1012 is a CommercialPRO 7000 programmable thermostat from Honeywell Home.

A programmable thermostat pays for itself on the hours nobody is home. Setting back eight degrees for the working day and again overnight is the single largest saving available on an existing system, and it only happens reliably when the schedule does it instead of a person.

The failure mode of a programmable stat is being left on permanent hold. If the schedule is going to be overridden within a week, a non-programmable stat does the same job with fewer buttons — and that is an honest recommendation, not a smaller sale.

Brand: Honeywell Home
Manufacturer Part #: TB7220U1012/U
Type: CommercialPRO 7000 programmable thermostat
Stages: Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional
Application: Packaged RTU; Conventional systems; Heat Pump Systems; 24 Vac heating and cooling systems
Category: Thermostats

Full Specifications

Application	Conventional Systems, Heat Pump Systems, Packaged RTU, 24 VAC Heating and Cooling Systems
Product Features	Includes A terminal to enable an economizer or control a lighting panel when used as a time of day relay; Selectable programmable or non-programmable.
Thermostat Type	Programmable
Stages	Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Smart Home Integration	No
Display Type	LCD Screen
Touchscreen	No
Modes of Operation	Heat, Cool, Auto, Off
Program Type	7-Day Programmable
Power Supply	Battery Powered, Hardwired
Battery Type	Alkaline
Power Source	Battery Operated, Hardwired
Number of Batteries	2
Battery Life	1 Year
Battery Size	AA
Warranty	5 Years
WiFi	No
Z-Wave	No
Z-Wave Specifications	Not Applicable
RedLINK	No
Color	Premier White®
Sensor Type	Thermistor
Differential Temperature	± 1 °F, ± 0.5 °C
Clock Type	Year Clock
Temperature Accuracy	±0.5 °C, ±1 °F
Mounting Type	Horizontal Mount
Number of Fan Speeds	1
Power Supply Frequency	50 Hz, 60 Hz
Set point Temperature (Max)	Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
Set point Temperature (Min)	Heat: 40 °F, Heat: 4 °C, Cool: 50 °F, Cool: 10 °C
Switch Action	SPDT
Mounting Location	Wall, Internal
Product Height	3.75 in, 96 mm
Product Width	6 in, 152 mm
Product Depth	1.38 in, 35 mm
Hazmat Information	LI metal Button Cell contained in Equipment No Label is required
