Replacement Head for V4043A, 120 V AC, 60 Hz

Roll over image to zoom in Click on image to zoom

Honeywell Home 40003916-024/U Replacement Head for V4043A, 120 V AC, 60 Hz

Name: Honeywell Home 40003916-024/U Replacement Head for V4043A, 120 V AC, 60 Hz
Brand: Honeywell Home
SKU: HONE-40003916-024/U
Price: 110.61 USD
Availability: InStock

Honeywell HomeSKU: HONE-40003916-024/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$110.61

Stock:

Re-stocking soon

Quantity:

Special order — typically ships in 3–4 weeks.
Contact us for an exact lead time.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Free shipping on orders $99+ · 30-day returns · Manufacturer warranty

Valve Type	Zone Valve
Voltage	120 Vac
Frequency	60 Hz
Electrical Connections	18 in. leads on same side of manual lever
Ambient Temperature	125 F Maximum
Application	Replacement Head for V Series Zone Valve
Used With	Two-way valves; Valves with Action of Spring return to close

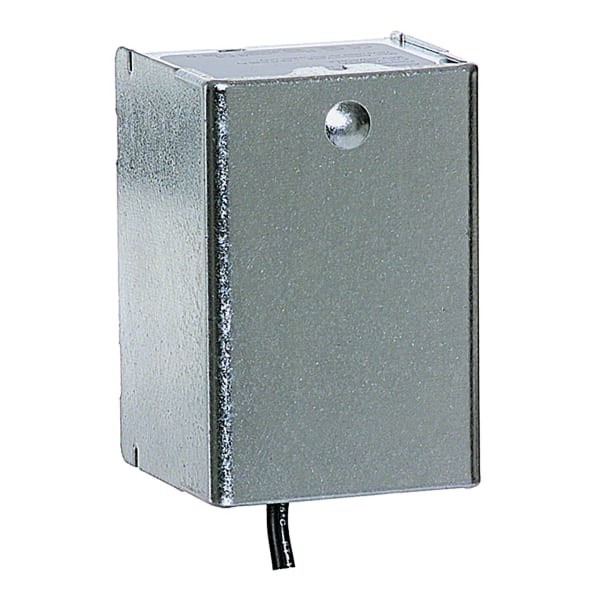

Replacement actuator head for Honeywell Home V4043A zone valves. When the motor in the valve fails, this part swaps onto the valve body that is already in the piping — the connections stay soldered or threaded in place and the system does not have to be drained.

Replacing the head instead of the whole valve is the difference between a fifteen-minute service call and a soldering job on a live heating system. It is the reason the V-series has stayed in the field as long as it has.

Confirm whether your valve is wired for pump start before ordering. A valve whose end-switch contacts are landed on the boiler needs a replacement head that carries the end switch; this one is specified without it.

Valves this part is built for

Brand: Honeywell Home
Manufacturer Part #: 40003916-024/U
Fits: V4043A
Voltage: 120 Vac
End switch: No
Category: Zone Valve Replacement Heads

Full Specifications

Application	Replacement Powerhead for V4034A Zone Valve
For Use With	V4043A, Two-Way Valves, Valves with Action of Spring Return to close
Compatible With	V Series Zone Valves for hydronic heating
Warranty	5 years
Ambient Operating Temperature (Max)	125 °F, 52 °C
Supply Voltage	120 V AC
Power Supply Frequency	60 Hz
Current Draw	0.08A
Fire and Smoke Rated	No
Connection Length	18 in, 457 mm
Connection Type	Leads on same side of manual lever
Color	Metallic
