Description

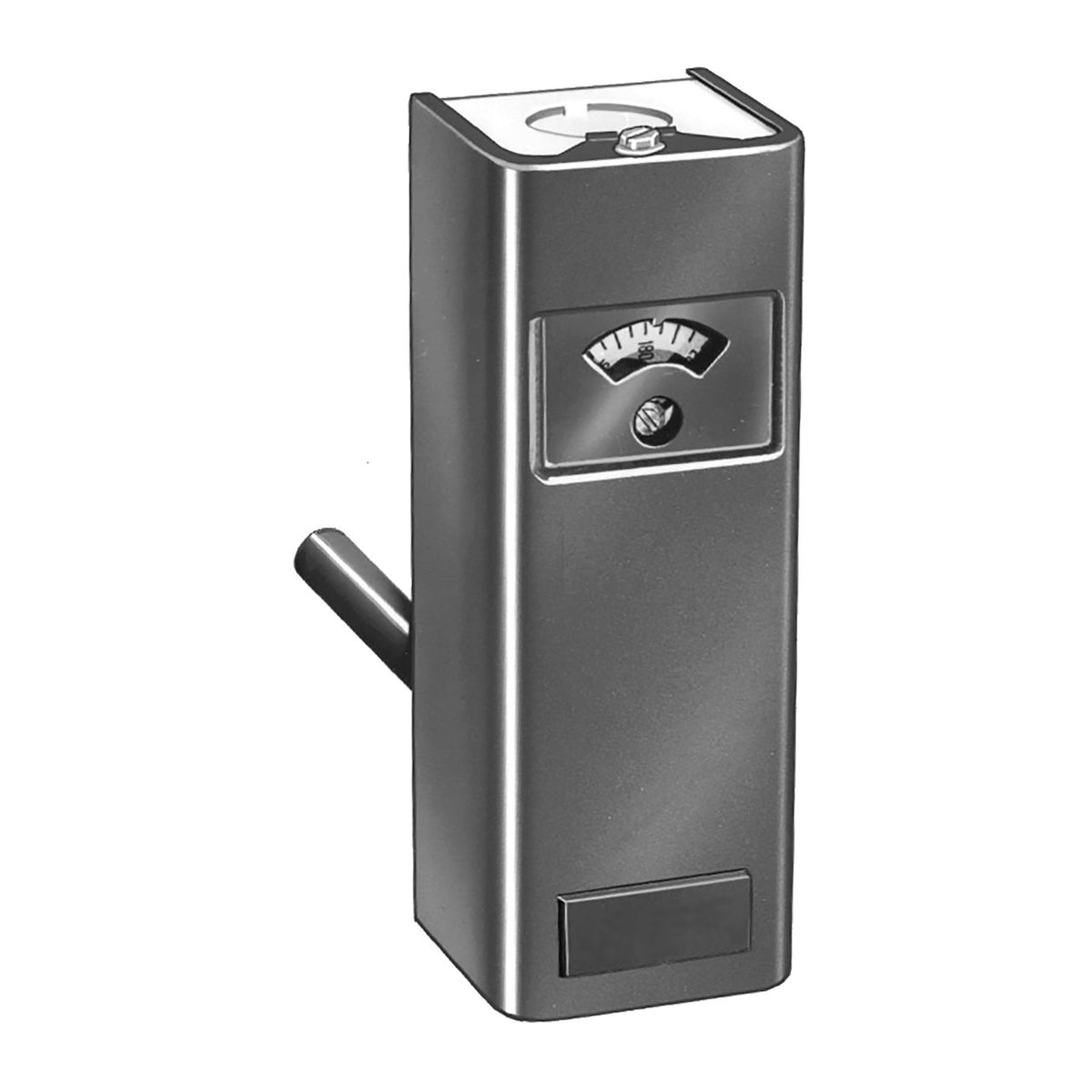

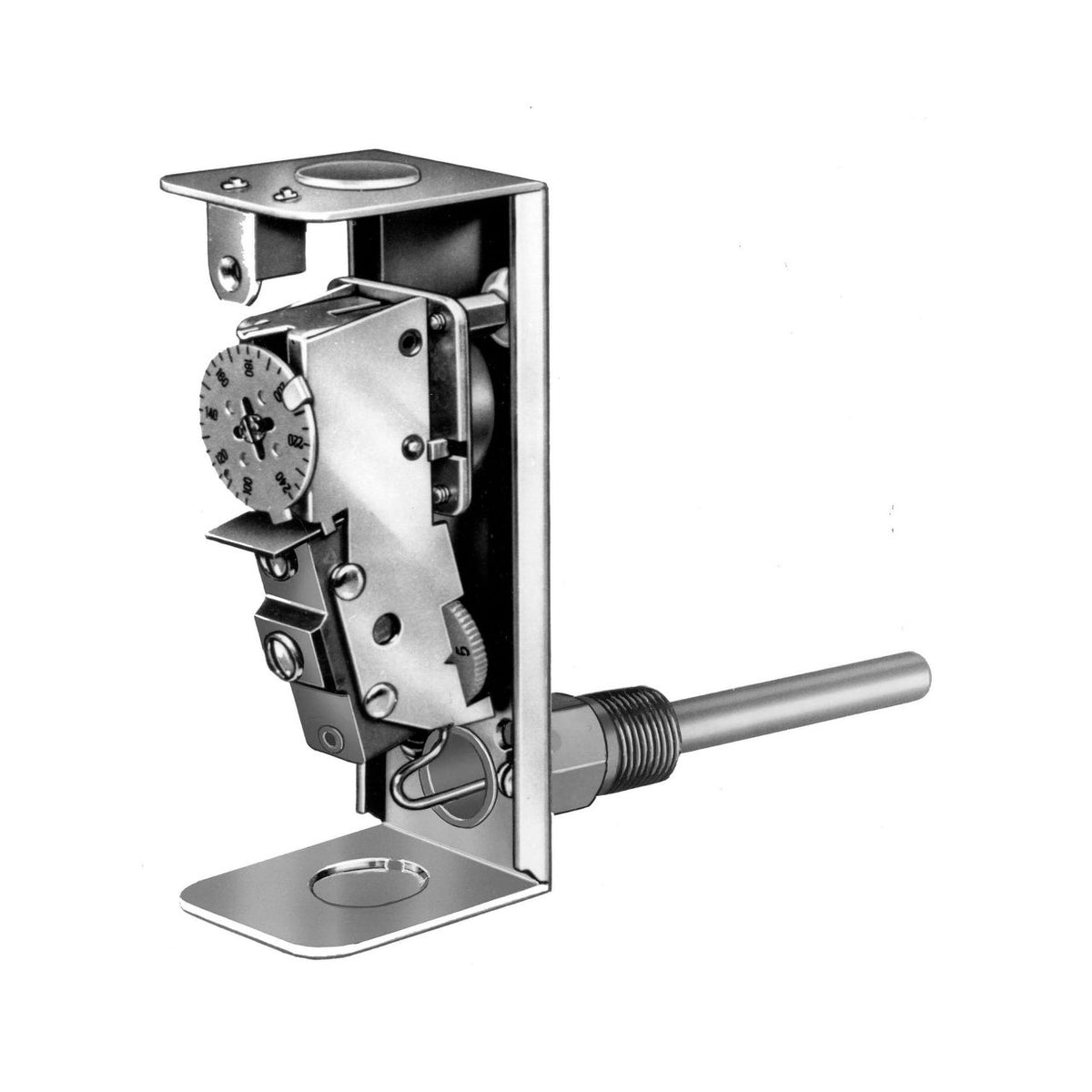

Aquastat for vertical or horizontal mounting with 240°F stop and 5–30°F adjustable differential, supplied less well with well adapter and heat conductive compound.
Features
- Stop factory- Set at 240 °F
- Stop factory- 116 °C
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: L4006B1155/U
- Application: Circulator Control
- Approvals and Standards: UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2, CSA Certified: File No. LR95329-1, AGA Certified
- Color: Gray
- Compatible With: Hot Water, Hydronic Heating Systems
- Includes: Heat Conductive Compound
- Mounting Type: Horizontal Mount, Vertical Mount
- Differential Temperature: 5 °F to 30 °F Adjustable, 3 °C to 17 °C Adjustable
- Electrical Ratings at Full Load: 8 A @ 120 V AC, 5.1 A @ 240 V AC
- Electrical Ratings at Locked Rotor: 48 A @ 120 V AC, 30.6 A @ 240 V AC
- Electrical Ratings Millivolt: 0.25 A @ 0.25 to 12 V DC
- Switch Action: Contacts break on temperature rise
- Switch Type: SPST - NO
- Well Spud Size: 3/4 in 14 NPT, 19 mm 14 NPT
- Insulation Depth: 3 in
- Capillary Length: 3 in
- Bulb Diameter: 3/8 in, 10 mm
- Bulb Length: 2 7/8 in, 73 mm
- Bulb Material: Copper (Cu)
- Product Height: 5.63 in, 143 mm
- Product Width: 2 in, 51 mm
- Ambient Temperature (Max): 150 °F, 66 °C
- Hazmat Information: Dangerous Goods in Excepted Quantities
- UPC: 085267048828
- Country of Origin: MX
- Category: Aquastats & Wells
