Description

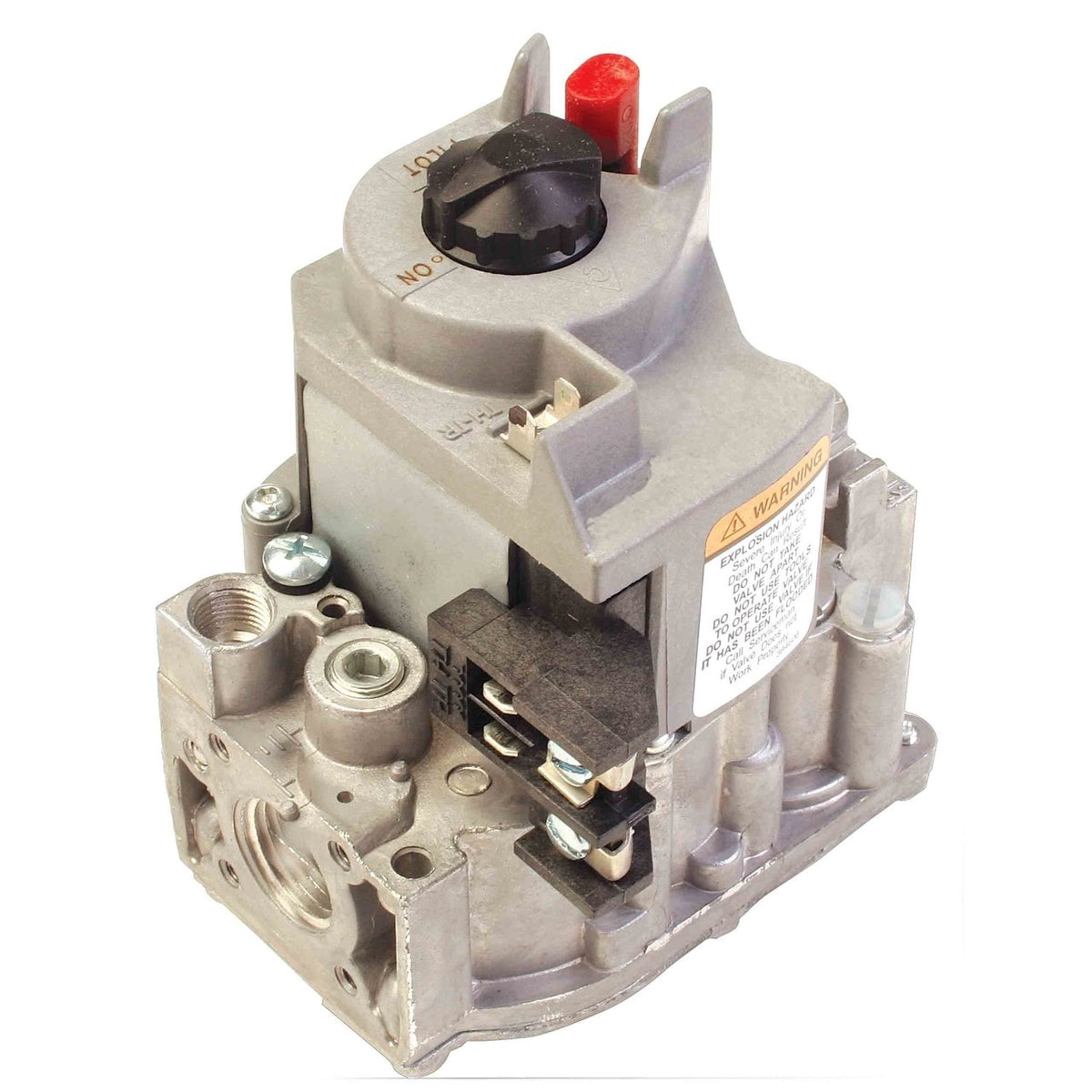

Standing pilot gas valve with step opening, 1/2 x 1/2 connections, regulator set at 3.5 in WC full rate and 0.9 in WC step rating.
Features

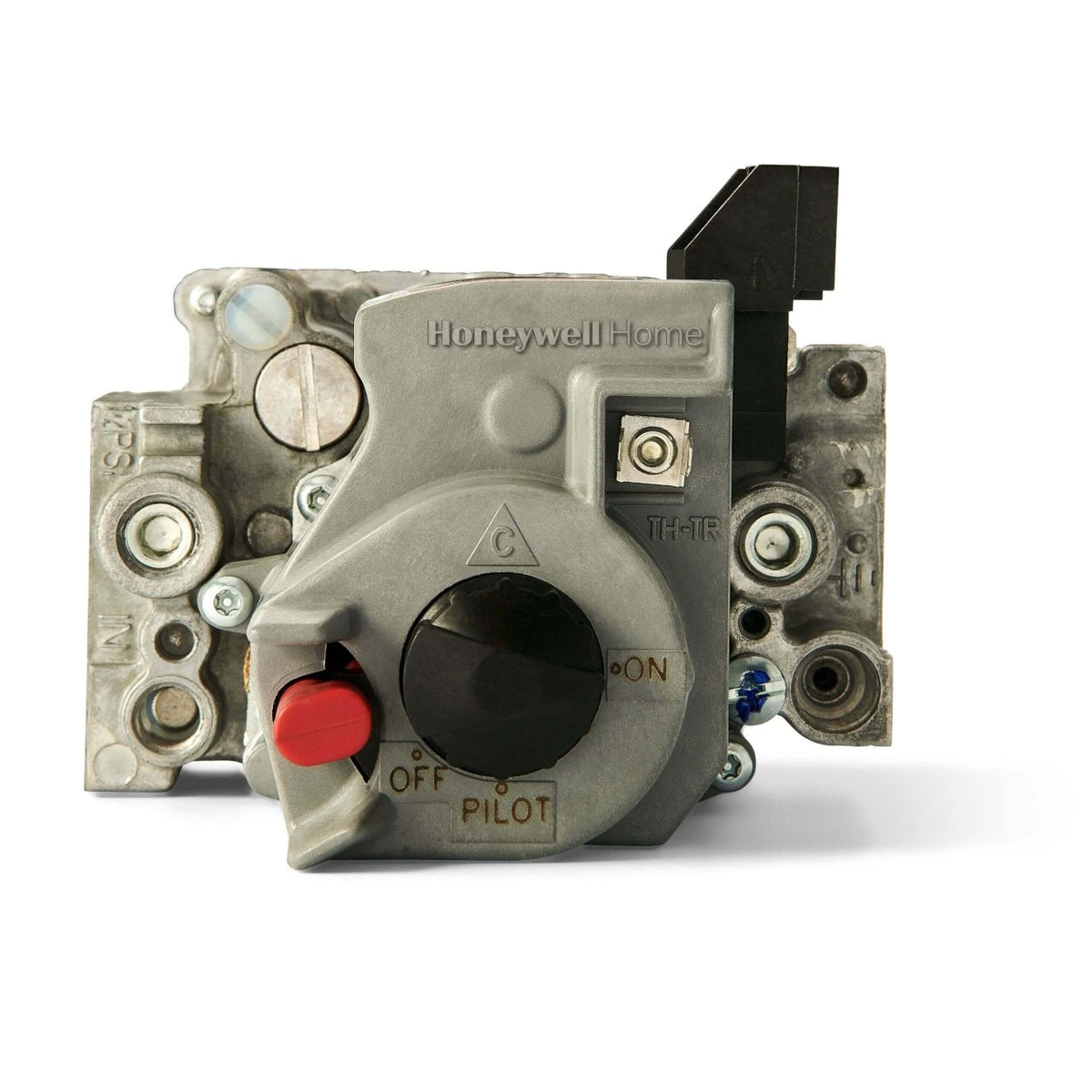

- Lite-Rite (OFF-PILOT-ON) lighting sequence
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8200C1041/U
- Application: Single-Stage Step Opening Valve for Standard Pilot
- Ignition Type: Standing Pilot
- Type of Fuel: Natural Gas
- Regulator: Step
- Capacity (Max): 200,000 BTU/h Natural Gas
- Capacity (Min): 20,000 BTU/h Natural Gas
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Step Opening
- Pressure Rating: 1/2 psi
- Operating Pressure (Max): 1/2 psi, 3.5 kPa
- Includes: VR8200 and VR4200 set up for Natural Gas, 393691 LP Conversion Kit from LP to Natural Gas is available for standard and slow opening models
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): 0 °F, -18 °C
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association design certificate: 4752
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
- Product Height: 5.38 in, 135 mm
- Product Weight: 2 lb
- Product Width: 4.06 in, 104 mm
- UPC: 085267112260
- Country of Origin: MX
- Category: Gas Valves
