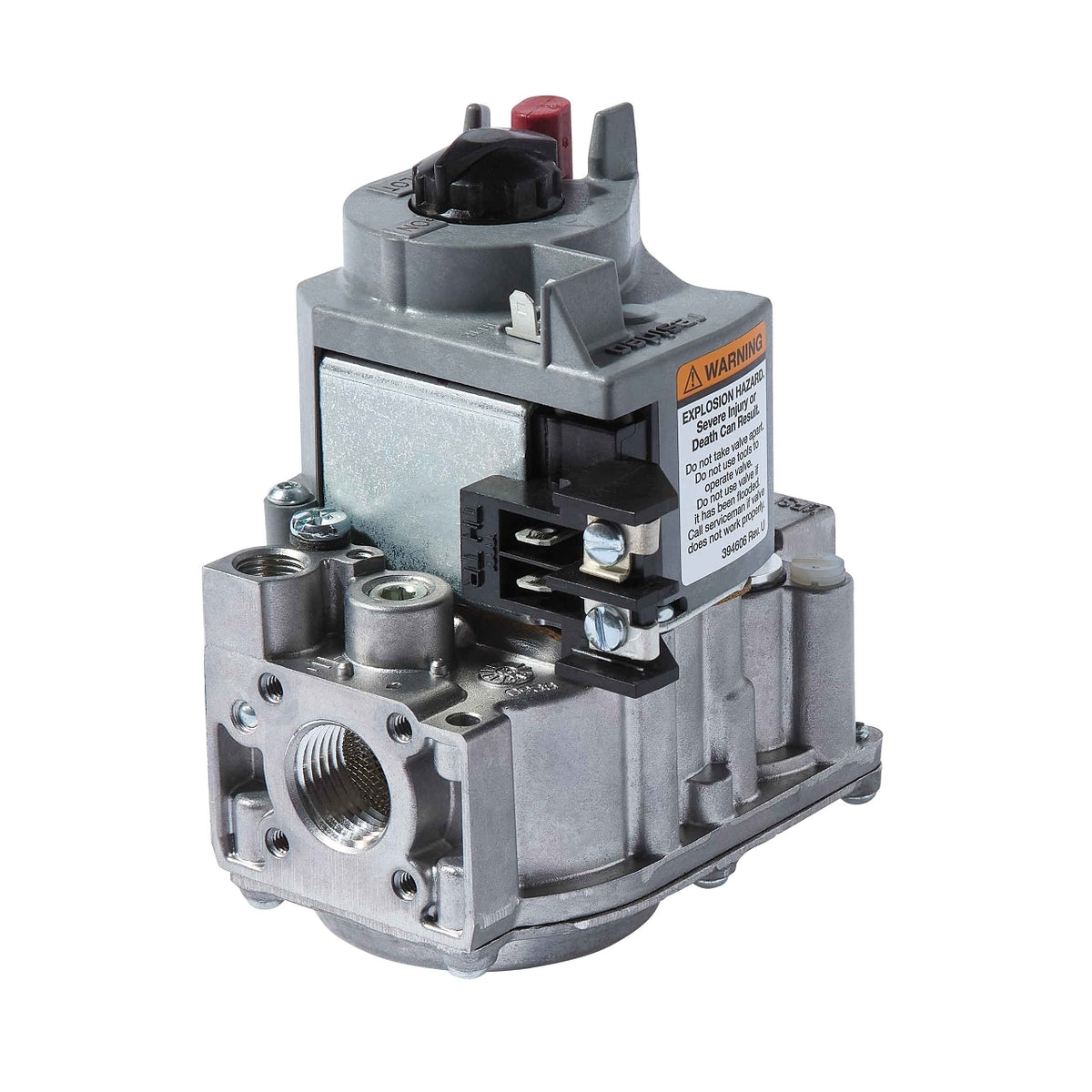

Resideo VR8200A2744/U Standing Pilot Gas Valve, 1/2 in x 1/2 in, Standard Opening, 3.5 in WC
Resideo

Resideo VR8200A2744/U Standing Pilot Gas Valve, 1/2 in x 1/2 in, Standard Opening, 3.5 in WC

Item #
HONE-VR8200A2744/U
Mfr. part #
VR8200A2744/U
UPC
085267788021
$162.61
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.4 lb
  • Box size: 5.95 × 4.75 × 4.05 in
Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #VR8200A2744/U
UPC085267788021

Standing pilot gas valve with standard opening, 1/2 x 1/2 connections and regulator set at 3.5 in WC; includes conversion kit, bushing, straight flange and elbow flange.

Features

  • Lite-Rite (OFF-PILOT-ON) lighting sequence

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: VR8200A2744/U
  • Application: Single-Stage Standard Opening Valve for Standard Pilot
  • Ignition Type: Standing Pilot
  • Type of Fuel: Natural Gas, LP with included conversion kit
  • Regulator: Standard
  • Capacity (Max): 200,000 BTU/h Natural Gas
  • Capacity (Min): 20,000 BTU/h Natural Gas
  • Operating Voltage: 24 V AC
  • Inlet Connection Size: 1/2 in
  • Outlet Connection Size: 1/2 in
  • Regulation Type: Standard Opening
  • Pressure Rating: 1/2 psi
  • Operating Pressure (Max): 1/2 psi, 3.5 kPa
  • Includes: One 3/4 in Straight Flange, One 3/4 in Elbow Flange, One 1/2 in x 3/8 in Reducer Bushings, Natural to LP Conversion Kit
  • Valve Body Pattern: Straight Through
  • Ambient Operating Temperature (Max): 175 °F, 79 °C
  • Ambient Operating Temperature (Min): 0 °F, -18 °C
  • Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association 4752
  • Color: Black, Gray
  • Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
  • Operating Frequency: 60 Hz
  • Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
  • Product Height: 5.38 in, 135 mm
  • Product Width: 4.06 in, 104 mm
  • UPC: 085267788021
  • Country of Origin: MX
  • Category: Gas Valves
