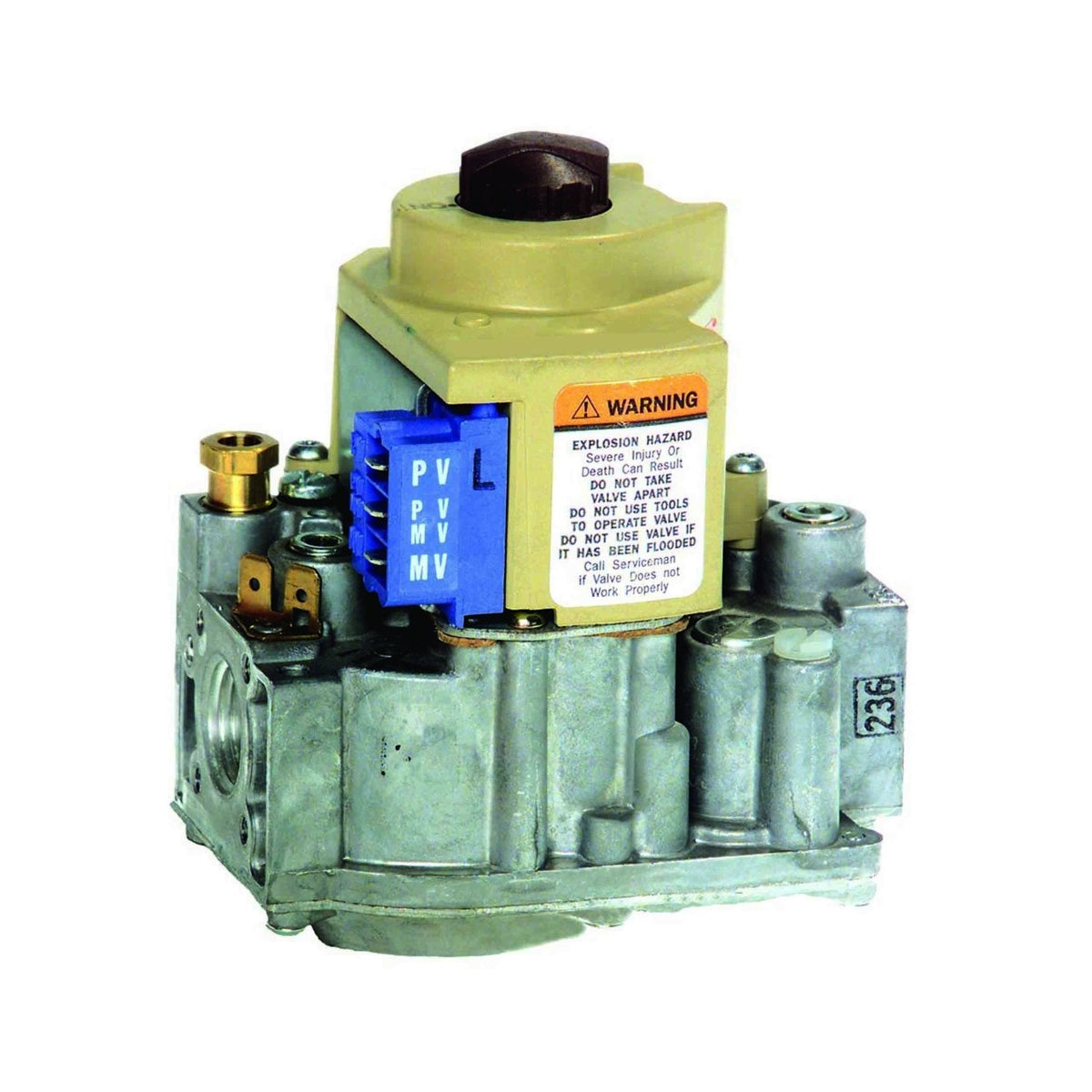

Resideo VR8204C1019/U Intermittent Pilot Gas Valve, 1/2 in x 1/2 in, Step Opening
Resideo

Resideo VR8204C1019/U Intermittent Pilot Gas Valve, 1/2 in x 1/2 in, Step Opening

Item #
HONE-VR8204C1019/U
Mfr. part #
VR8204C1019/U
UPC
085267112819
$245.89
Each
Backorder – ships from manufacturer
Estimated delivery: –

Special order: typically ships in 3–4 weeks. Contact us for an exact lead time.

Buying for a business? Tax-exempt purchasing and Net 30 terms available. Open a trade account

  • Free shipping on orders $99+
  • 30-day returns on unused items. Details
  • Secure checkout

Shipping details

  • Shipping weight: 2.1 lb
  • Box size: 6.55 × 5.45 × 3.55 in
Installation by a licensed gas technician is required. Confirm the part against your appliance's parts list.
Need help with this part?
(404) 678-9908 Chat with a product specialist Request a quote
BrandResideo
Manufacturer part #VR8204C1019/U
UPC085267112819

Intermittent pilot gas valve with step opening, 1/2 x 1/2 connections, regulator set at 3.5 in WC full rate and 0.9 in WC step rate.

Features

  • ON-OFF lighting sequence

Specifications

  • Brand: Resideo (Honeywell Home)
  • Manufacturer Part #: VR8204C1019/U
  • Application: Single-Stage Step Opening Valve for Intermittent Pilot
  • Ignition Type: Intermittent Pilot
  • Type of Fuel: Natural Gas
  • Regulator: Step
  • Capacity (Max): 200,000 BTU/h Natural Gas
  • Capacity (Min): 20,000 BTU/h Natural Gas
  • Operating Voltage: 24 V AC
  • Inlet Connection Size: 1/2 in
  • Outlet Connection Size: 1/2 in
  • Regulation Type: Step Opening
  • Pressure Rating: 1/2 psi, 3.5 kPa
  • Operating Pressure (Max): 1/2 psi
  • For Use With: S86F Control Modules, S86H Control Modules, S8600F Control Modules, S8600H Control Modules, S8610 Control Modules
  • Valve Body Pattern: Straight Through
  • Ambient Operating Temperature (Max): 175 °F, 79 °C
  • Ambient Operating Temperature (Min): 0 °F, -18 °C
  • Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Assoc. Design Certificate: 4752
  • Color: Black, Gray
  • Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
  • Operating Frequency: 60 Hz
  • Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
  • Product Height: 4.94 in, 125 mm
  • Product Width: 4.13 in, 104 mm
  • UPC: 085267112819
  • Country of Origin: MX
  • Category: Gas Valves

Questions about fit or compatibility? Ask our team. We usually reply within one business day.
