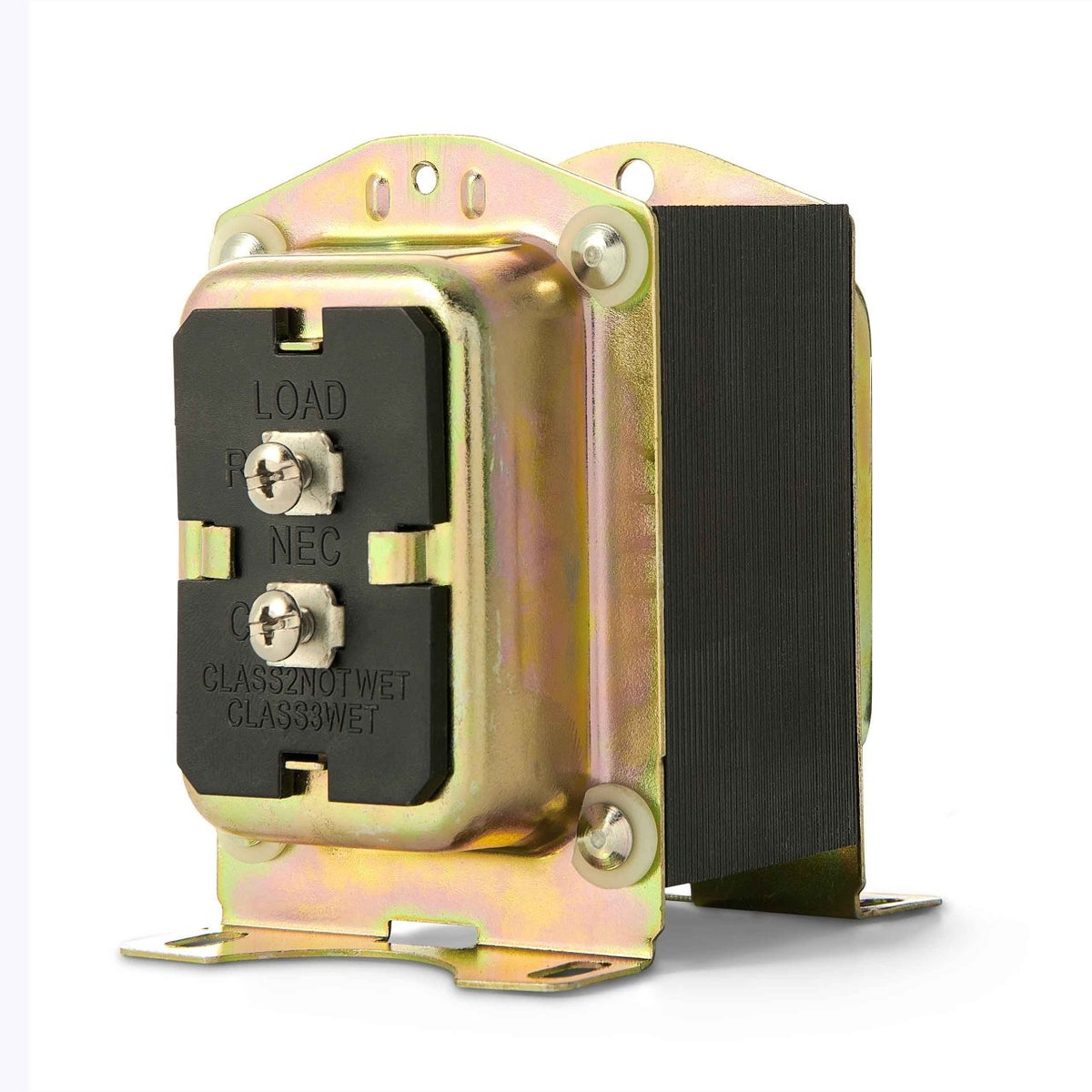

Resideo AT175B1055/U Control Transformer, 75 VA, 120 V, Foot Mount

75 VA control transformer, 120 V 60 Hz, with 9 in primary and secondary leadwires stripped 1/2 in, two plastic end covers and foot mount.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AT175B1055/U
• NEMA Rating: No
• Primary Connection Size: 9 in, 229 mm
• Primary Connection Type: Leadwires: Black and White
• Primary Input Voltage: 120 V ac
• Secondary Connection Size: 9 in, 229 mm
• Secondary Connection Type: Leadwires
• Secondary Open Circuit Voltage: 27.5 V.O.C.
• VA Rating: 75 VA
• Frequency: 60 Hz
• Approvals and Standards: UL Component Recognized, CSA Certified
• Ambient Operating Temperature (Max): 105 °F, 41 °C
• Ambient Operating Temperature (Min): -20 °F, -29 °C
• Product Height: 2.33 in, 59 mm
• Product Weight: 2.4 lb
• Product Width: 3.56 in, 90 mm
• UPC: 085267035545
• Country of Origin: CN
• Category: Transformers
