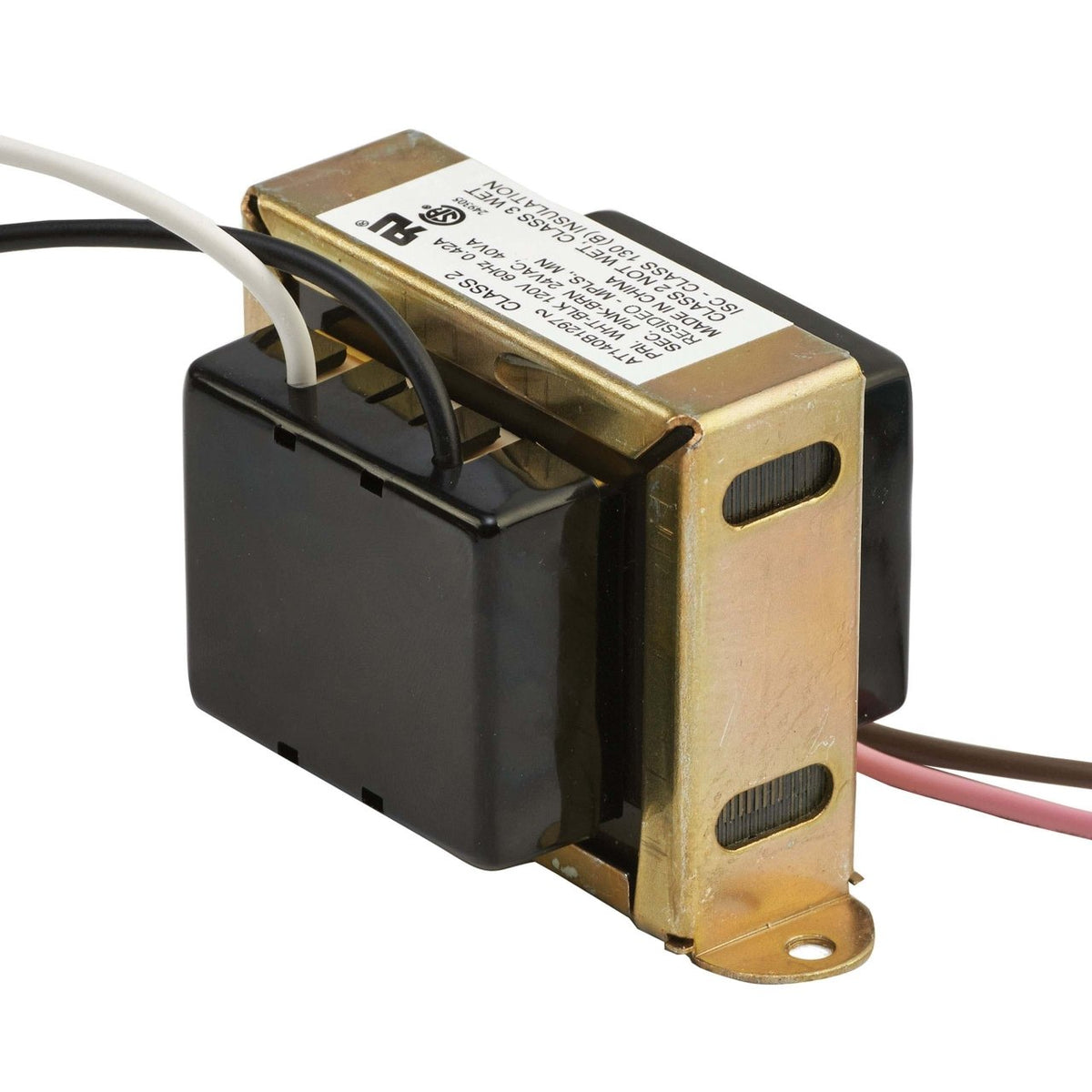

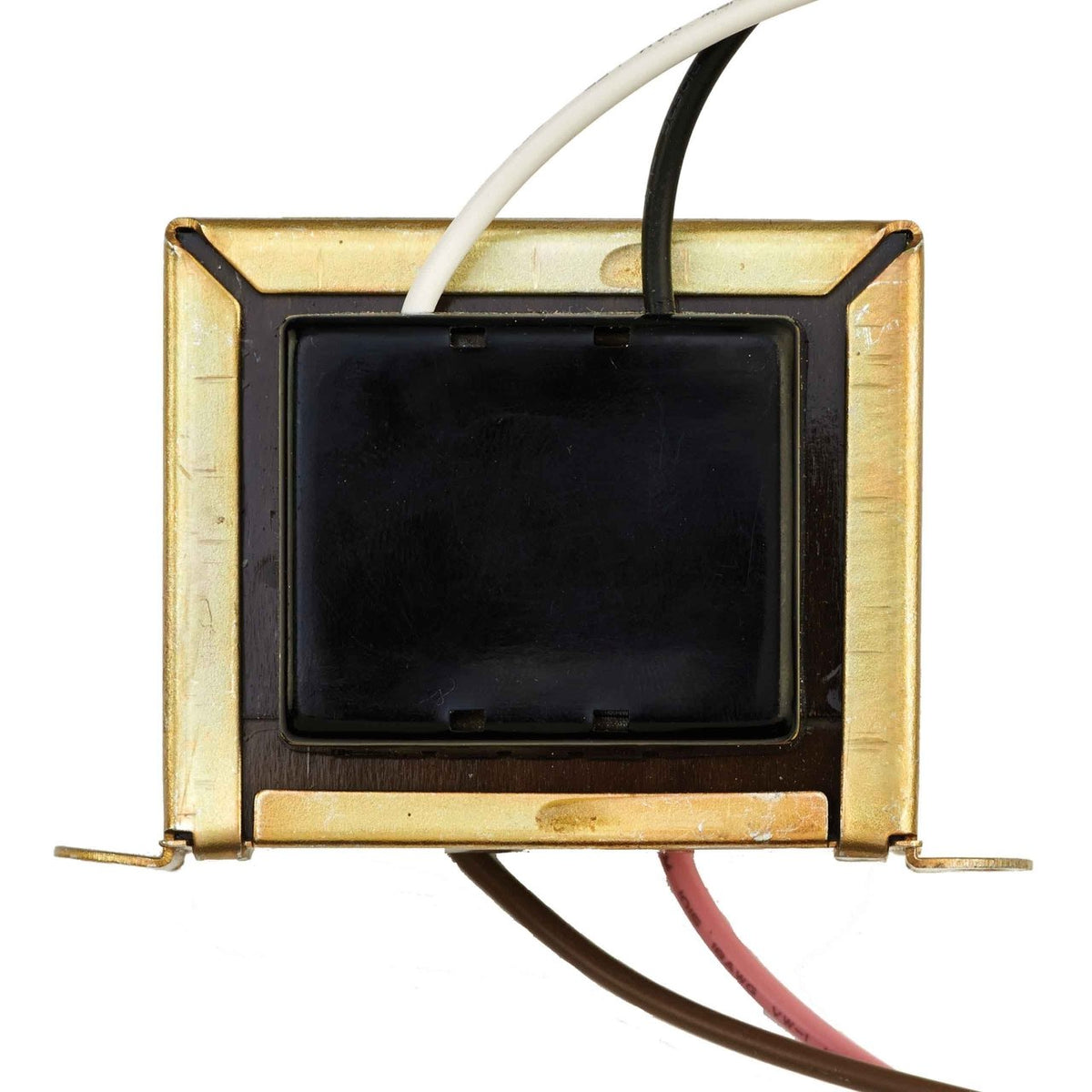

Resideo AT140B1016/U 40 VA Control Transformer, 120V 60Hz, Foot Mount

40 VA control transformer, 120V 60Hz, with 1/4 in male quick connects on primary and secondary and foot mounting.

Specifications

• Brand: Resideo (Honeywell Home)
• Manufacturer Part #: AT140B1016/U
• Application: 40 VA general purpose transformers power 24 V AC circuits. Although typically used in heating/cooling control systems, they can be used in any application that doesn't exceed the load ratings
• NEMA Rating: No
• Primary Connection Size: 1/4 in, 6.4 mm
• Primary Connection Type: Male Quick-Connects
• Primary Input Voltage: 120 V ac
• Secondary Connection Size: 1/4 in, 6.4 mm
• Secondary Connection Type: Male Quick-Connects
• Secondary Open Circuit Voltage: 27 V.O.C.
• VA Rating: 40 VA
• Frequency: 60 Hz
• Approvals and Standards: UL Component Recognized: B, D, E models. File# E14881, CSA Certified: A & B models, NEC Class 2
• Includes: Plastic end caps
• Ambient Operating Temperature (Max): 105 °F, 41 °C
• Ambient Operating Temperature (Min): -20 °F, -29 °C
• Product Height: 1.69 in, 43 mm
• Product Weight: 1.5 lb
• Product Width: 3.5 in, 89 mm
• UPC: 085267035040
• Country of Origin: CN
• Category: Transformers
