Description

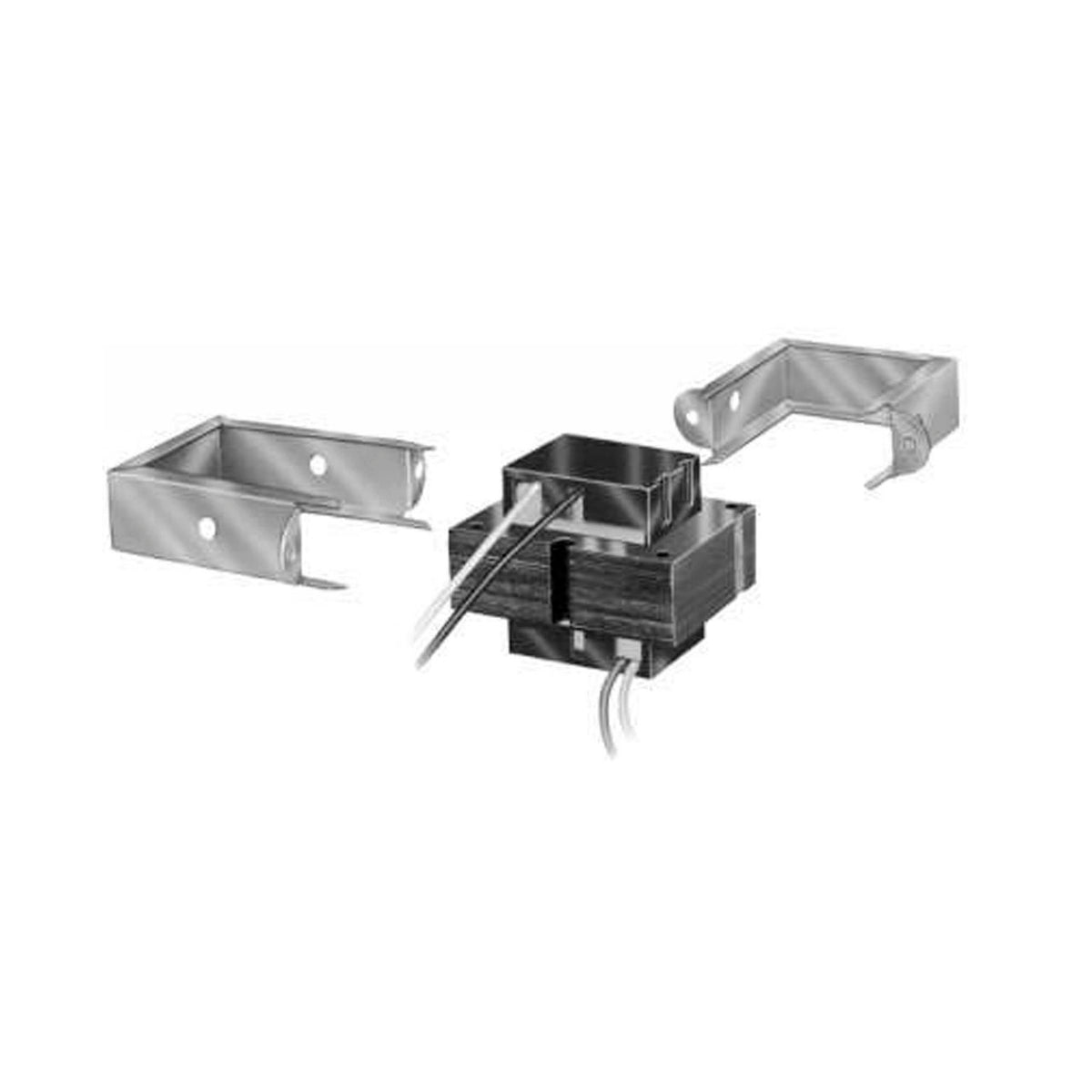

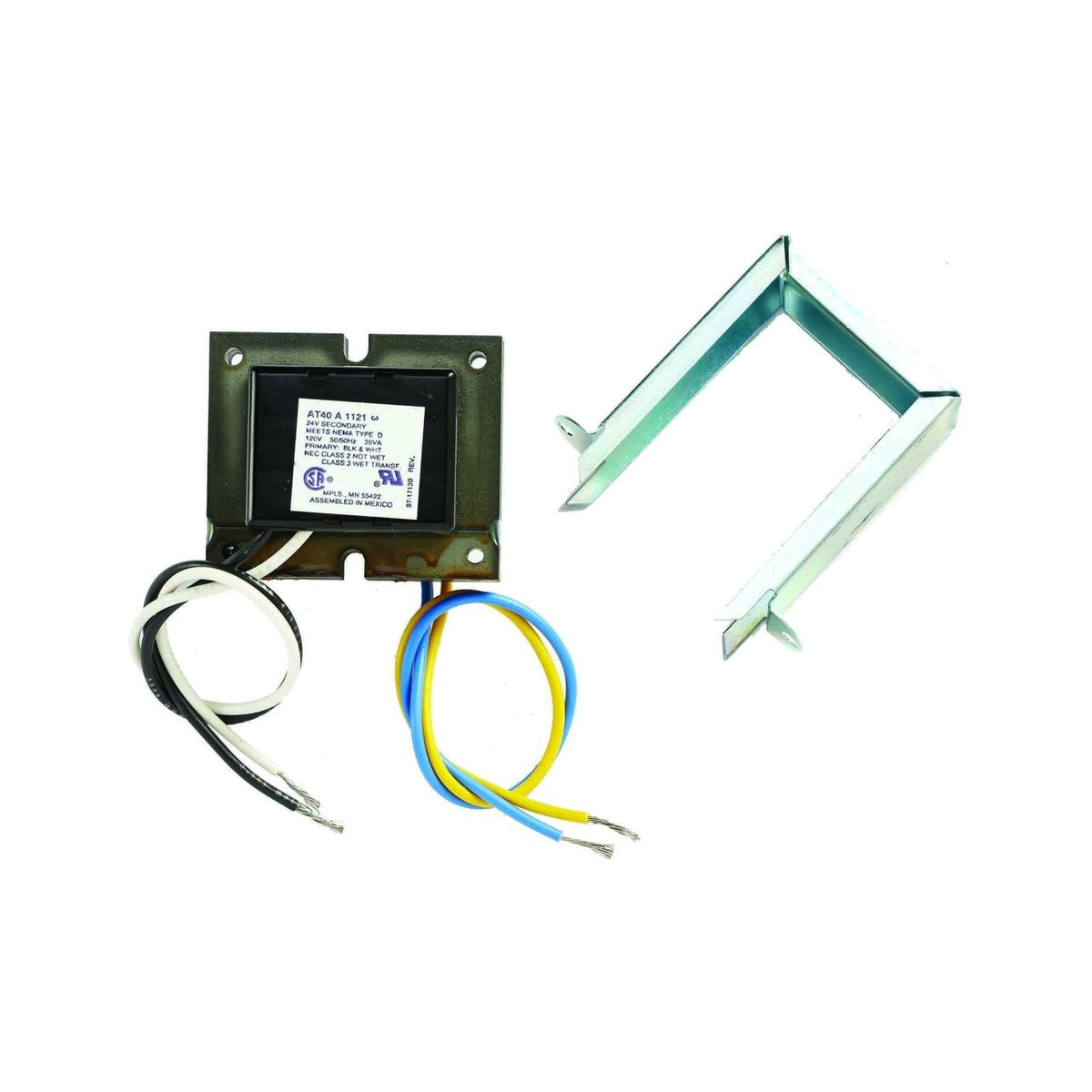

40 VA transformer, 120 V 50/60 Hz, with primary and secondary leadwires and foot mounting.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AT40A1162/U
- NEMA Rating: Yes
- Primary Connection Size: 9 in, 229 mm
- Primary Input Voltage: 120 V ac
- Temperature Rating (Max): 105 °F, 41 °C
- Temperature Rating (Min): -20 °F, -29 °C
- Secondary Connection Size: 9 in, 229 mm
- Secondary Connection Type: Color coded primary and secondary Leadwires
- Secondary Open Circuit Voltage: 26.5 V.O.C.
- VA Rating: 40 VA
- Frequency: 50 Hz; 60 Hz
- Approvals and Standards: CSA Certified, NEC Class 2, UL Component Recognized
- Color: Black
- Ambient Operating Temperature (Max): 105 °F, 41 °C
- Ambient Operating Temperature (Min): -20 °F, -29 °C
- Product Height: 2.1 in, 53 mm
- Product Length: 2.63 in, 67 mm
- Product Weight: 1.8 lb
- Product Width: 2.2 in, 56 mm
- UPC: 085267197649
- Country of Origin: CN
- Category: Transformers
